FM-A Dustproof IP65 Outdoor LED Display Screen 320mmx160mm For Advertising
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price: |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Panel Size: | 320mmx160mm |
|---|---|---|---|
| Pixel Pitch: | 8mm | Specification: | Video Wall |
| Brightness: | 4500-7500 Cd/㎡ | Pixel Density: | 15625 Dot/㎡ |
| Application: | Outdoor | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD3535 | Grayscale: | 14 Bit |
| Highlight: | Dustproof Outdoor LED Display Screen,Outdoor LED Display Screen 320mmx160mm,IP65 LED Outdoor Advertising Screens |
||
Product Description

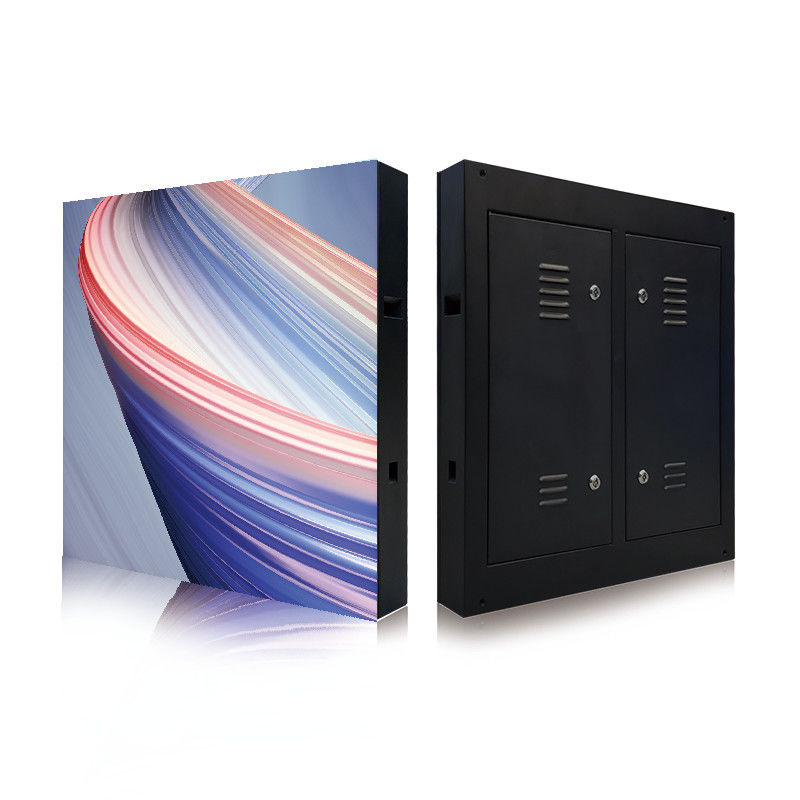

FM-A 320mmx160mm Customized Outdoor waterproof and dustproof LED Display Screen
Detailed product introduction document:PH6-PH10 outdoor fixed sheet metal box FM-A series...

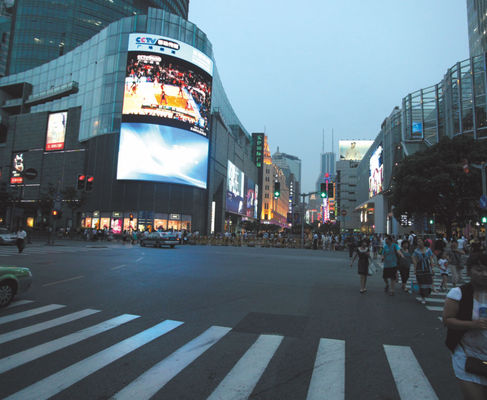

Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. shopping mall glass curtain wall
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. Interior Decoration and Super Market
Features:
1. high permeability, high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. good heat dissipation
4. ultra high brightness and High definition
5. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65
6. The best price. You are welcome to contact us for a free project evaluation.
Product Details
Models: FM-A PH8
| Pixel Pitch (mm) | 8 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 15625 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 40x20 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/5 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
Application:
