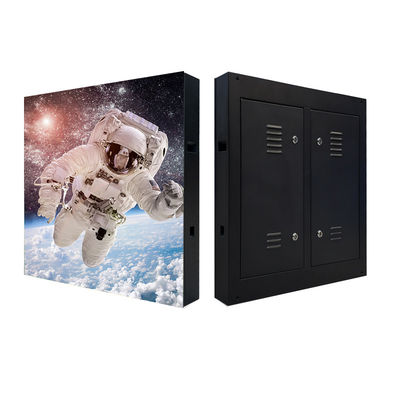

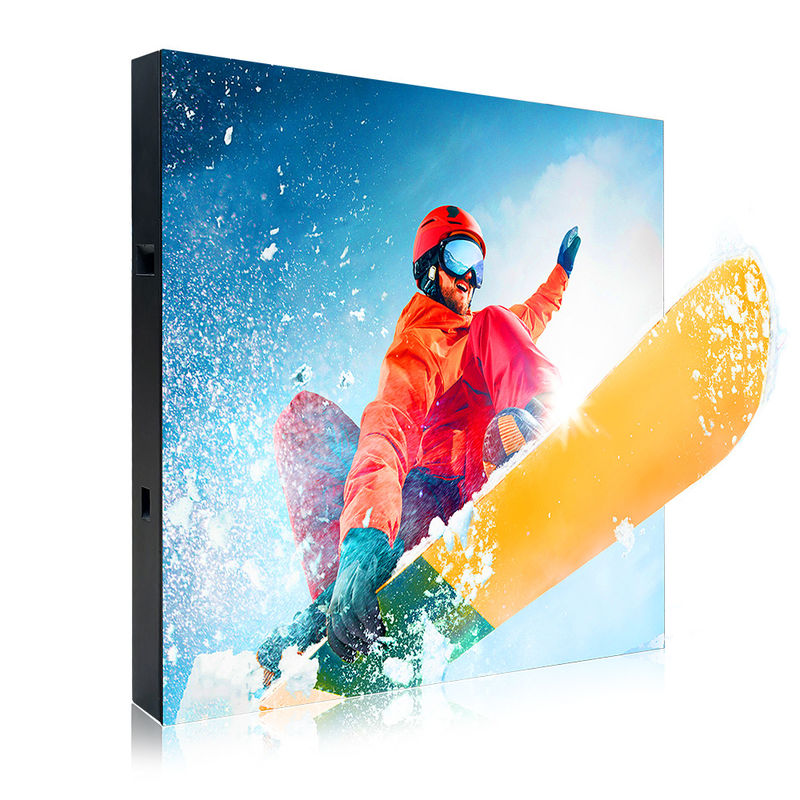

IP65 Waterproof Outdoor LED Display Screen 320mmx160mm FM-A PH2.5
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price: |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Panel Size: | 320mmx160mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Type: | LED |
| Color: | Full Color | Brightness: | 4500-7500 Cd/㎡ |
| Pixel Density: | 160000 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | HS Code: | 8528591090 |
| Resolution: | 128x64 | Refresh Rate: | 1920HZ/3840HZ |
| Module Size: | 320x160 | LED Chip: | SMD1415/SMD1921 |
| Highlight: | FCC Waterproof Outdoor LED Display Screen,IP65 Waterproof Outdoor LED Display Screen,Outdoor LED Display Screen 320mmx160mm |
||
Product Description
FM-A PH2.5 Customized Outdoor High Brightness LED Display Screen
Detailed product introduction document:PH2.5-PH5 outdoor fixed sheet metal box FM-A serie...
Applicable scenarios:
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. full color led display
5. promotional activities
6. banquet activities and Pitch Scoring
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. Outdoor waterproofing: front/back waterproof grade ip65
6. Fast, simple and convenient: multi-functional link, more stable, convenient and safe
Product Details
Models: FM-A PH2.5
| Pixel Pitch (mm) | 2.5 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 160000 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 128x64 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1415/SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
