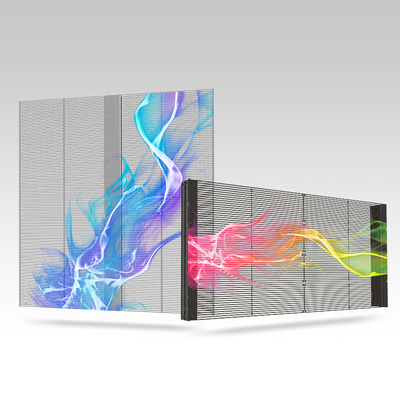

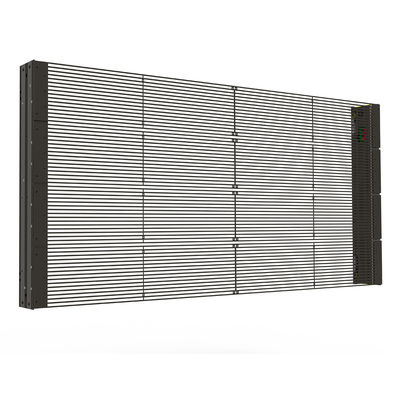

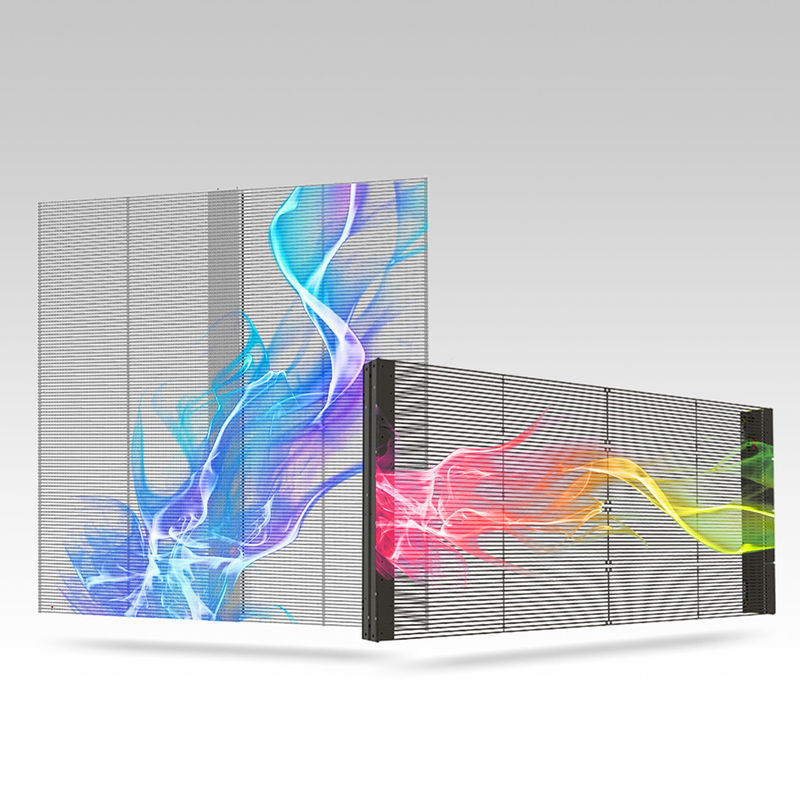

Indoor 1000*1000 PH3-7 Transparent LED Display panel High Brightness Aluminium Alloy
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $286.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Color: | Full Color | Type: | LED |
| Pixel Pitch: | 3.91-7.82 | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 32768 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | Resolution: | 256X128 |
| Material: | Aluminum Alloy | Feature: | Thin And Bright |
| Weight: | 7.5kg/㎡ | Refresh Rate: | 1920Hz |
| Scan Mode: | 1/16 Scan | LED Chip: | SMD2121 |
| Highlight: | P3-7 Clear LED Display,Clear LED Display High Brightness,clear led panel Aluminium Alloy |
||
Product Description
Indoor 1000*1000 PH3-7 Transparent LED Display panel High Brightness Aluminium Alloy
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. sentertainment culture
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. play videos and pictures
5. exhibition hall
6. commercial real estate
7. Indoor Fence & Partition
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Outdoor fixed installation, resistant to various working conditions
5. High gloss energy saving energy efficient,high brightness high power conversion efficiency
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-B PH3-7
| Pixel Pitch (mm) | 3.91-7.82 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 32768 | Transparency | 76% |
| Cabinet Pixel | 256X128 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |

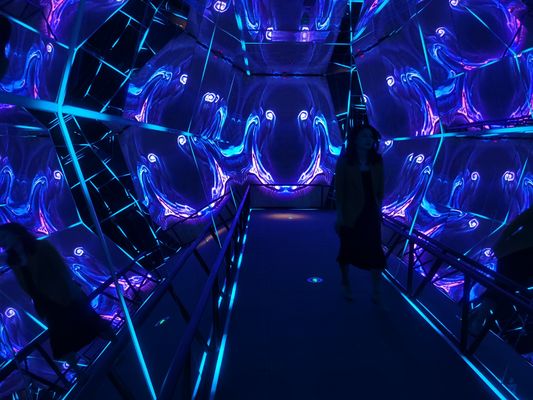

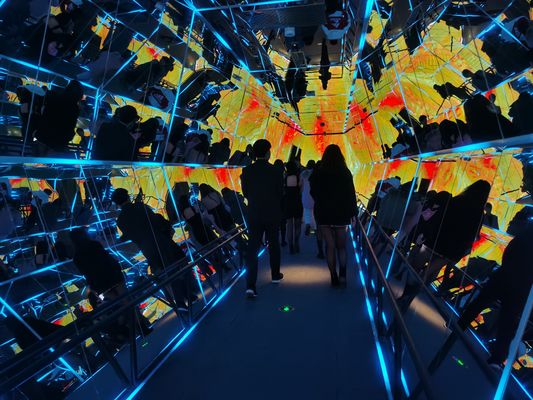

Application:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
