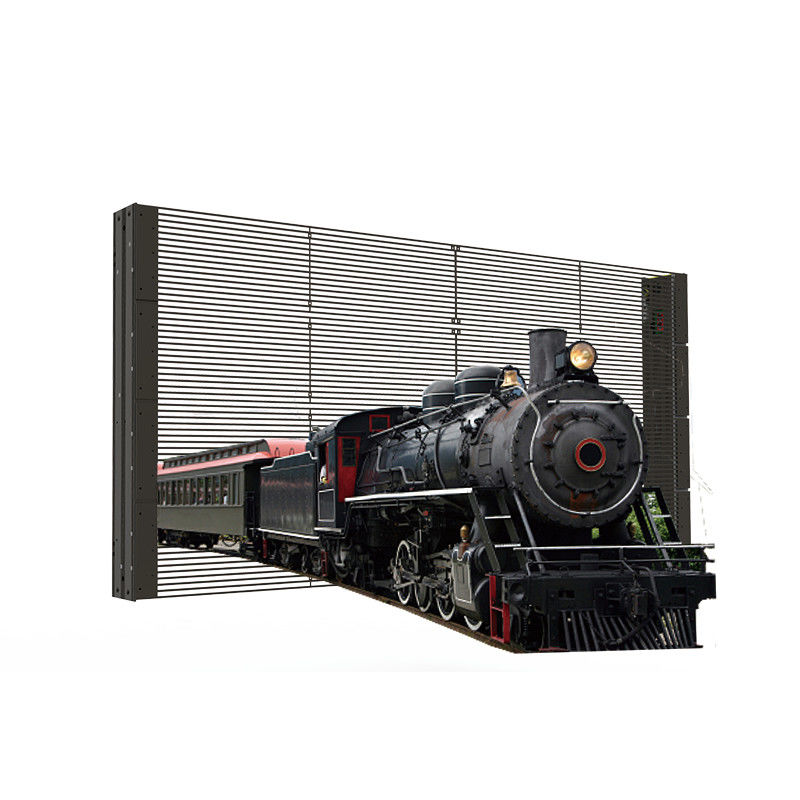

TRA-B PH5-10 Indoor See Through LED Screen 1000mmX1000mm Aluminium Alloy Transparent Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH5-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $308/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Pixel Pitch: | 5.2-10.4 |
|---|---|---|---|
| Panel Size: | 1000mmX1000mm | Type: | LED |
| Color: | Full Color | Media Available: | Datasheet, Photo |
| Brightness: | ≥800 Cd/㎡ | Pixel Density: | 18432 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP30 |
| Resolution: | 192X96 | Material: | Aluminum Alloy |
| LED Chip: | SMD2121 | Refresh Rate: | 1920Hz |
| Highlight: | See Through LED Screen 1000mmX1000mm,P5-10 See Through LED Screen,See Through Led Display Aluminium Alloy |
||
Product Description

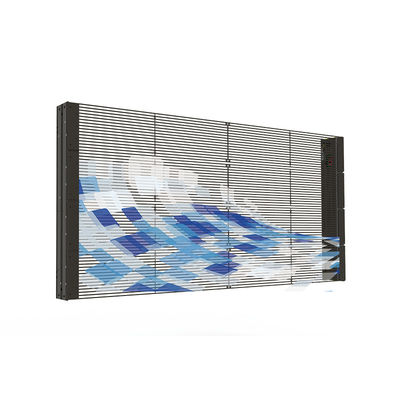

PH5-10 Indoor See Through LED Screen Aluminium Alloy Transparent Display
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. Information release
5. City, party and government propaganda
6.Real estate apartment hall application
7.Rail transit application
8.Education and training,
9.Presidential office
10.Home theater
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: VTB-P5-10
| Pixel Pitch (mm) | 5.2-10.4 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 18432 | Transparency | 76% |
| Cabinet Pixel | 192X96 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
