1000*1000 TRA-M Ultra Clear Indoor Transparent LED Display Screen Easy Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $215~500/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Indoor Transparent LED Display Screen | Application: | ≥100,000 Hours |
|---|---|---|---|
| Color: | 1920Hz | Gray Scale: | Customized |
| IP Rating: | Screen Size | Product Name: | IP65 |
| Lifespan: | Refresh Rate | ||
| Highlight: | Indoor Transparent LED Display Screen,RoHS Transparent LED Display Screen,Ultra Clear Indoor Transparent LED Display |
||
Product Description

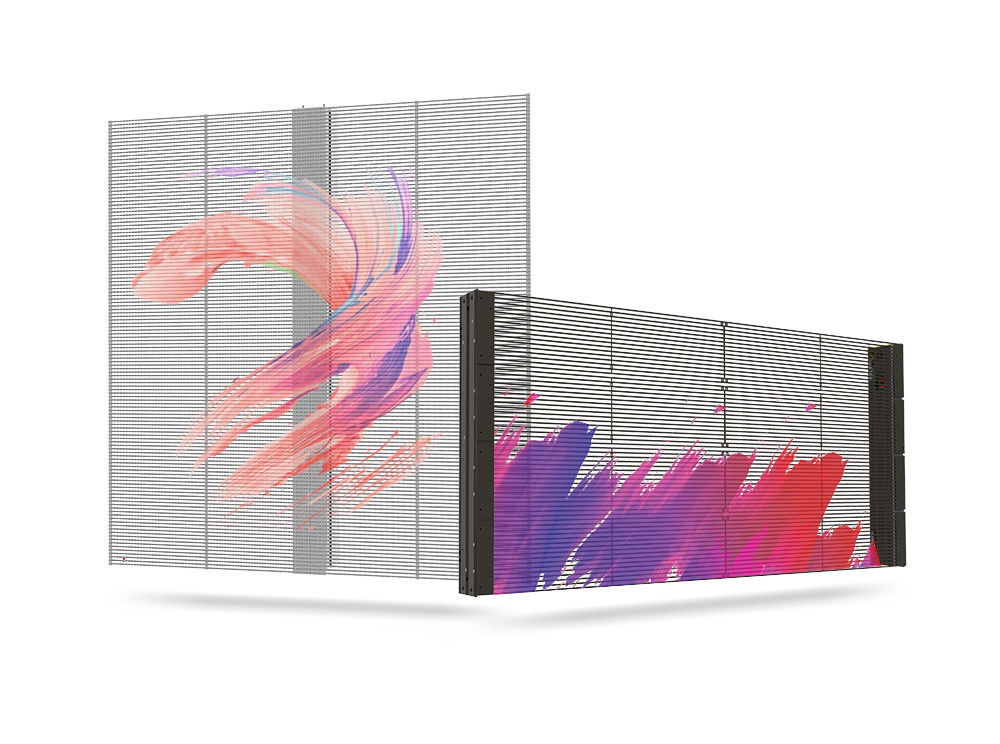

1000*1000 TRA-M Indoor Transparent LED Screen Display Easy Installation
Detailed product introduction document:Indoor transparent screen TRA-M series.pdf
Applicable scenarios:
commercial display | entertainment culture | stage performance | radio and television studio......
Product characteristics:
1. Light, thin and ultra-clear, unlimited splicing: the lamp plate thickness is only 3.5mm, 7kg/㎡ ultra-light box, unlimited splicing combination display;
2. More than 65% ultra-high permeability: the playback image presents a floating style, which will not affect the view of the building when it is daylighting;

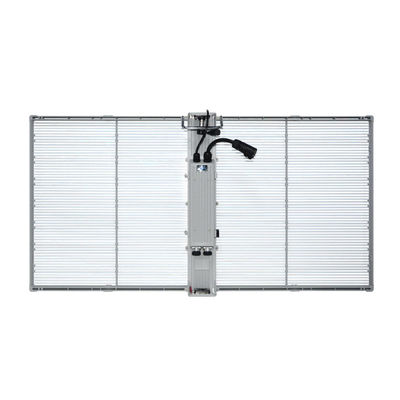

3. Front and rear maintenance, convenient and fast: the module and power box can be disassembled and maintained in front and back, and the installation and maintenance are convenient and fast.
Products Detail:
| Indoor transparent screen (TRA-M series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6- 5.2 | 3.91 - 7.82 | 5.2 - 10.4 | 10.4 - 10.4 | 15.6 - 15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
|
Cabinet Density (dot/㎡) |
73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X96 | 256X64 | 192X48 | 96X48 | 64X32 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
| Brightness (cd/㎡) | ≥800 | ||||
| Lifespan(H) | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| grey scale | 18bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| protection grades | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X500X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Die-casting aluminum | ||||
| Maintenance | power/Control System : rear maintenance module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
Applicable:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
