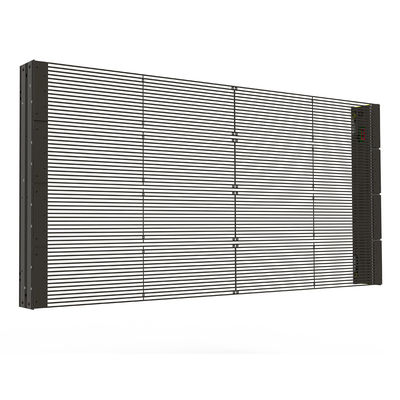

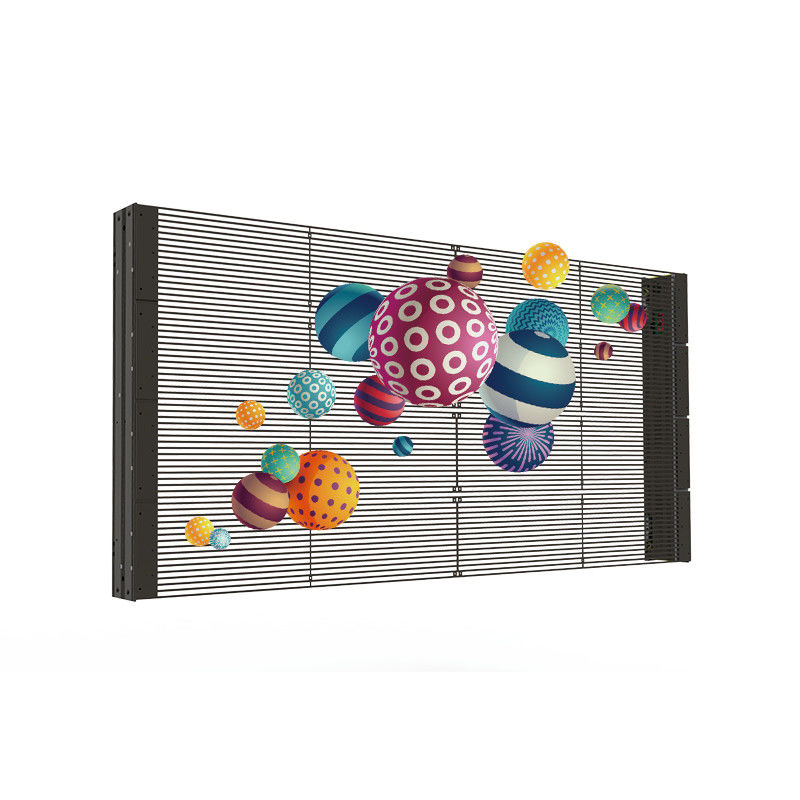

PH2-5 Indoor Transparent LED Screen Display Video Wall multi installtion way
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH2-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $386/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Panel Size: | 1000mmX500mm | Application: | Indoor |
|---|---|---|---|
| Color: | Full Color | Type: | LED |
| Media Available: | Datasheet, Photo | Pixel Pitch: | 2.6-5.2 |
| Brightness: | ≥800 Cd/㎡ | Pixel Density: | 73728 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP30 |
| Resolution: | 384X192 | Refresh Rate: | 1920Hz |
| LED Chip: | SMD1515 | Material: | Aluminum Alloy |
| Highlight: | P2-5 Transparent LED Screen Display,Transparent LED Screen Display IP30,Transparent LED Video Wall IP30 |
||
Product Description
PH2-5 Indoor Transparent LED Screen Display Video Wall multi installtion way
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. Tourism Corridor
7. Store window car showroom
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. Hollow design: While ensuring transparency, it reduces the weight of the screen itself and automatically dissipates heat.
4. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast;
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-B PH2-5
| Pixel Pitch (mm) | 2.6mm-5.2mm | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 73728 | Transparency | 56% |
| Cabinet Pixel | 384X192 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/12 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
