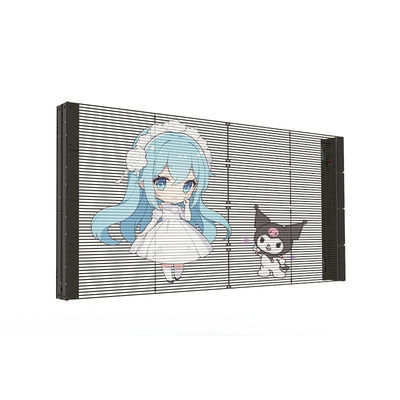

PH10-10 Transparent LED Screen Indoor High Brightness Transparent LED Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH10-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $280.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Indoor Adverting Display | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Application: | Indoor | Pixel Pitch: | 10.4-10.4 |
| Type: | LED | Color: | Full Color |
| Specification: | Video Wall | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 9216 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30, | Resolution: | 96X96 |
| Refresh Rate: | 1920Hz | Weight: | 7.5kg/㎡ |
| Highlight: | P10 Transparent Led Screen,Transparent Led Screen High Brightness,High Brightness Transparent Led Wall |
||
Product Description
PH10-10 Transparent LED Screen Indoor High Brightness Transparent LED Video Wall
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios:
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4.Building curtain wall
5.Space design
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Easy Installation: high-precise aluminum cabinet, plug-in led lamp board, fast-lock seamless splicing, secure and reliable.
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-B PH10-10
| Pixel Pitch (mm) | 10.4-10.4 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 9216 | Transparency | 76% |
| Cabinet Pixel | 96X96 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
