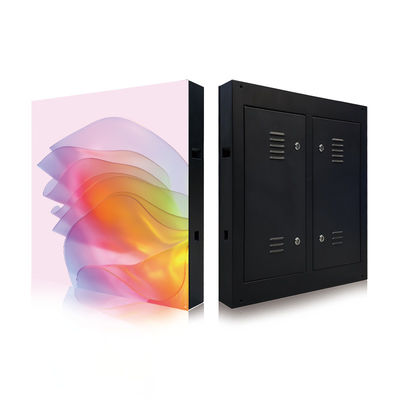

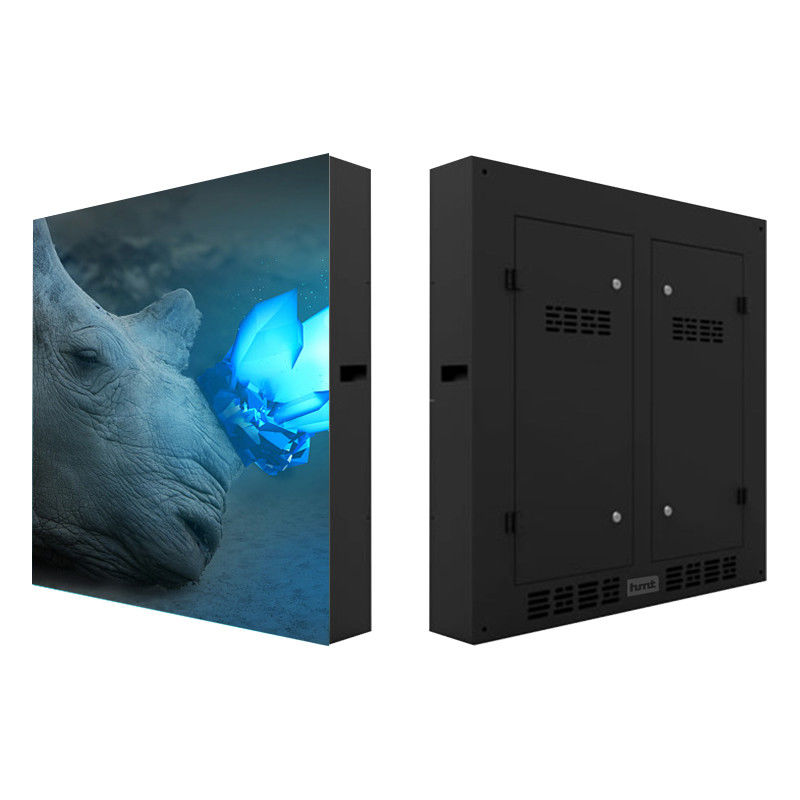

FM-A PH10 Outdoor LED Screen Advertising 320mmx160mm High Precision
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Brightness: | 4500-7500 Cd/㎡ |
|---|---|---|---|
| Type: | LED | Color: | FULL COLOR |
| Panel Size: | 320mmx160mm | Pixel Pitch: | 10mm |
| Pixel Density: | 10000 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Resolution: | 32x16 |
| Refresh Rate: | 1920HZ/3840HZ | LED Chip: | SMD3535 |
| Highlight: | P10 Outdoor LED Screen Advertising,P10 LED Outdoor Display Screen,P10 Outdoor Advertising Display Screens |
||
Product Description
FM-A PH10 320mmx160mm Customized Outdoor LED Display Screen LED Advertising Screen high precision
Detailed product introduction document:PH6-PH10 outdoor fixed sheet metal box FM-A series...
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. airport and training
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation and ultra high brightness and High definition
4. The final products feature supreme quality and offers best outputs.
5. With the light cabinet and good material , installation easily
6. Providing excellent customer service and technical support
7. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products
8.HD display perfect level of enjoyment: 16Bits high gray level, 1920 high refresh, live switching without flicker.
9. Fast, simple, convenient: multi-functional link, more stable, convenient, safe;
10. Support arc splicing: can be customized arc lock, support multi-angle installation, splicing box seamless splicing;
Product Details
Models: FM-A PH10
| Pixel Pitch (mm) | 10 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 10000 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x16 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/2 or 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
