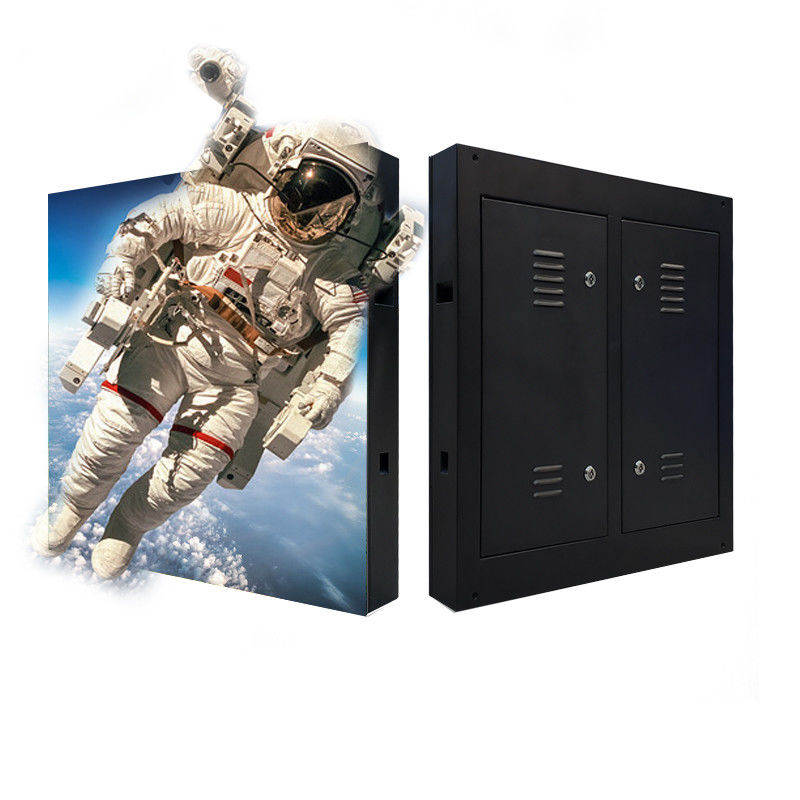

FM-B PH8 Customized Outdoor LED Advertising Display 256mmx128mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-B PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Panel Size: | 256mmx128mm | Pixel Pitch: | 8mm |
|---|---|---|---|
| Brightness: | 4500-7500 Cd/㎡ | Pixel Density: | 15625 Dot/㎡ |
| Lifespan (hours): | ≥100000H, | IP Rating: | IP65 |
| Resolution: | 32x16 | Weight: | 20kg/㎡ |
| Refresh Rate: | 1920HZ/3840HZ | LED Chip: | SMD3535 |
| Highlight: | Outdoor LED Advertising Display 256mmx128mm,Customized Outdoor LED Advertising Display,RoHS Outdoor LED Display Advertising |
||
Product Description
FM-B PH8 256mmx128mm Customized Outdoor LED Advertising Display Screen
Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf
Applicable scenarios :
1. brand chain store
2. welcome display and restaurant
3. stage performance
4. full color led display
5. Floor and Ceiling Display and Media Advertising
6. Live Events Led Display
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65
6. Maintenance convenient: Modular design, replace only defective lamp modules, fast and cheap.
7. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast
Product Details
Models: FM-B PH8
| Pixel Pitch (mm) | 8 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 15625 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x16 | LED Composition | RGB three in one |
| Module Size | 256x128 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
