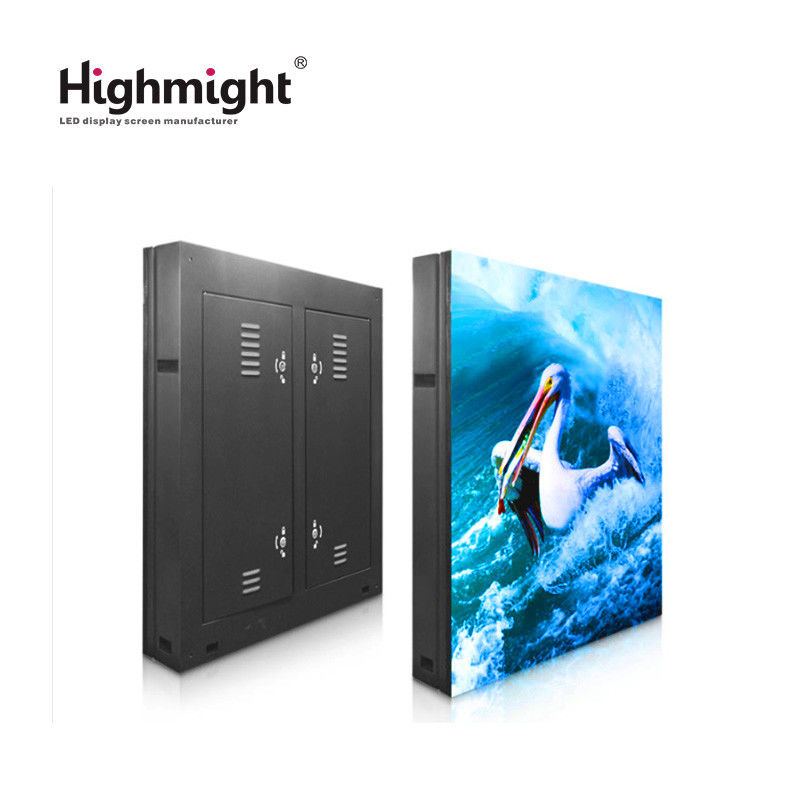

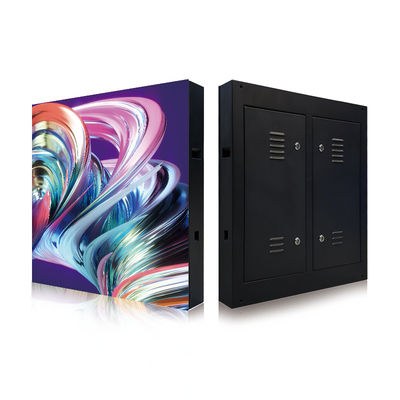

FM-A PH10 Outdoor LED Display Screen Customized With Aluminum Cabinet
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | P10 LED Display Screen Outdoor | Brightness: | 4500-7500 Cd/㎡ |
|---|---|---|---|
| Type: | LED | Color: | FULL COLOR |
| Panel Size: | 320mmx160mm | Pixel Pitch: | 10mm |
| Pixel Density: | 10000 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Resolution: | 32x16 |
| Refresh Rate: | 1920HZ/3840HZ | LED Chip: | SMD3535 |
| Highlight: | P10 Outdoor LED Display Screen,Outdoor LED Display Screen Customized,P10 LED Display Screen Outdoor |
||
Product Description
FM-A PH10 Customized Outdoor LED Display Screen LED Advertising Screen Aluminum cabinet
Detailed product introduction document:PH6-PH10 outdoor fixed sheet metal box FM-A series...
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. Commercial Plaza & Street
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. With the light cabinet and good material , installation easily
6. Providing excellent customer service and technical support.
7. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products
Product Details
Models: FM-A PH10
| Pixel Pitch (mm) | 10 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 10000 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x16 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/2 or 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
