FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | P4 Outdoor LED Display Screen | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 320mmx160mm | Pixel Pitch: | 4mm |
| Brightness: | 4500-7500 Cd/㎡ | Pixel Density: | 62500 Dot/㎡ |
| Lifespan (hours): | ≥100000H | Application: | Outdoor |
| IP Rating: | IP65 | Resolution: | 80x40 |
| Refresh Rate: | 1920HZ/3840HZ | LED Chip: | SMD1921 |
| Weight: | 25kg/㎡ | ||
| Highlight: | P4 Outdoor LED Display Screen,Outdoor LED Display Screen 320mmx160mm,P4 Outdoor LED Screen Display |
||
Product Description

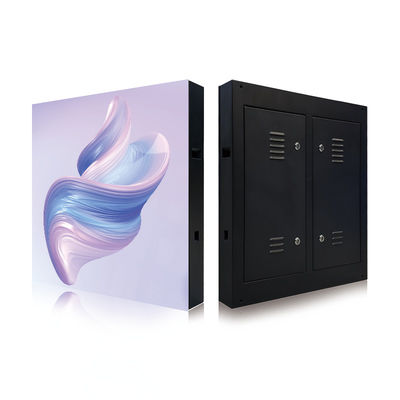

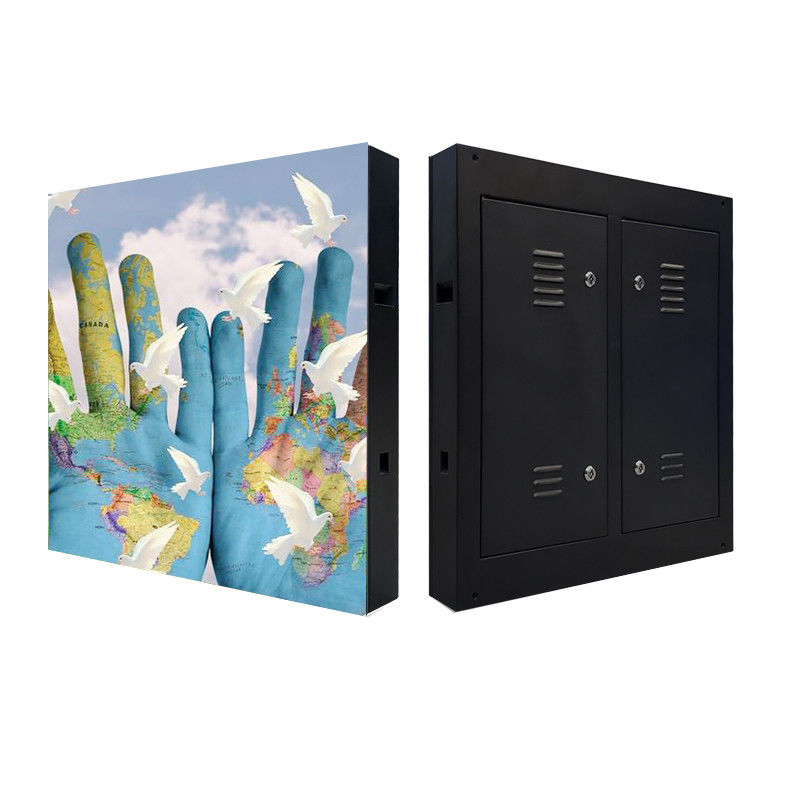

FM-A PH4 320mmx160mm Customized Outdoor LED Display Screen super slim cabinet
Detailed product introduction document:PH2.5-PH5 outdoor fixed sheet metal box FM-A serie...

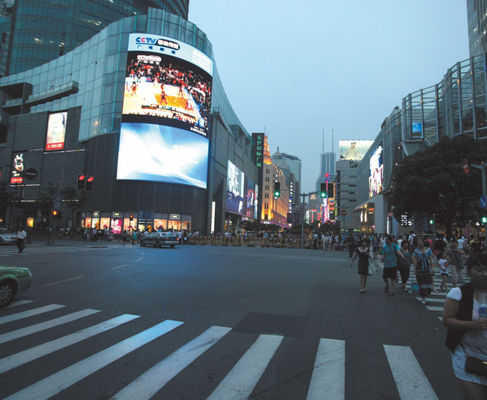

Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. play videos and pictures
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. With the light cabinet and good material , installation easily
6. fall resistant shockproof and fast assembling
Product Details
Models: FM-A PH4
| Pixel Pitch (mm) | 4 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 62500 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 80x40 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/10 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
