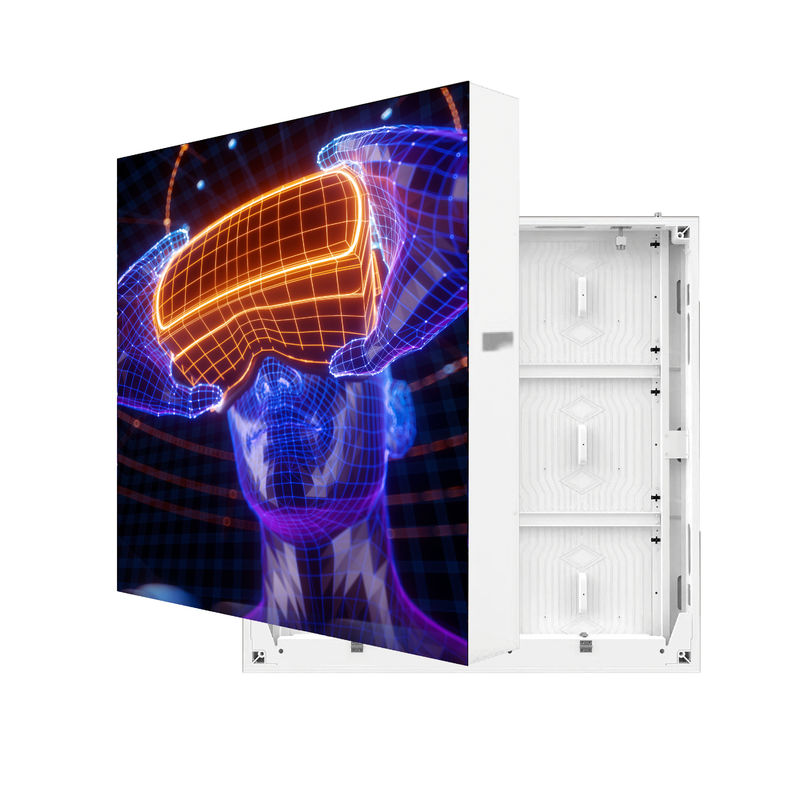

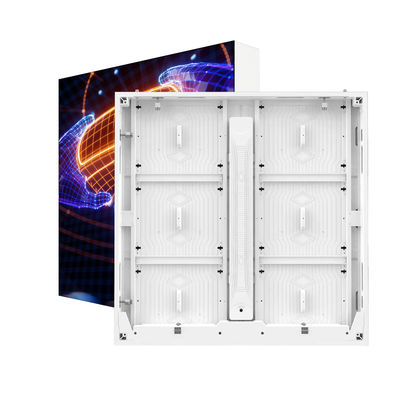

Customized Outdoor LED 3D Screen Aluminum Cabinet 480mm*320mm High-Definition Glasses-Free
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FA-X |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $860.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Panel Size: | 480mmx320mm |
|---|---|---|---|
| Color: | Full Color | Pixel Pitch: | 10mm |
| Physical Pixels (dot/㎡): | 10000 | Brightness: | 6000 Cd/㎡ |
| Lamp Bead Working Life: | ≥ 100,000 Hours | Contrast Ratio: | ≥5000:1 |
| Refresh Rate: | 3840HZ | Module Size: | Customizable |
| LED Lamp Bead Model: | SMD2727 | Scan Method: | 1/2sweep |
| Grayscale: | 14bit | Maximum Power (W/㎡)resolution: | 650W |
| Average Power (W/㎡): | 200W | ||
| Highlight: | Customized Outdoor LED 3D Screen,Aluminum Cabinet Outdoor LED 3D Screen,Glasses-Free Outdoor LED Screen |
||
Product Description
PH10 480mmx320mm Customized Outdoor waterproof and dustproof LED Display Screen
Detailed product introduction document:Outdoor fixed installation front maintenance FA-X ...
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. shopping mall glass curtain wall
4.Compared with traditional outdoor advertising media, LED outdoor full-color display has lower energy consumption and longer lifespan. LED lamp beads themselves have the characteristics of high efficiency, which can provide high brightness display effect at lower power. At the same time, it does not contain harmful substances and is environmentally friendly.
5. In sports events, LED outdoor full-color displays are widely used in stadiums and event venues. It displays the progress, results and advertising content in real time to enhance the viewing experience and create atmosphere.
6. LED outdoor full-color display is widely used in the field of advertising. Whether it is a city street, a shopping mall, a stadium or a transportation hub, etc., LED outdoor full-color display can attract people's attention and convey advertising information and brand image.
Features:
1. high permeability, high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. ultra high brightness and High definition
4.According to the best viewing distance point, determine the required area and clarity of the screen body, "40000 pixels/m2", and the best distance is 5-50 meters; The state-of-the-art 16-bit data interface is used to further improve the clarity of the picture.
5.As part of urban construction, LED outdoor full-color displays are used in urban landscapes, squares, parks and other places. It is able to showcase the city's culture, historical background, and image of the city, providing information and entertainment for citizens and tourists.
Product Details
| Model number | P4.44 | P5.7 | P6.66 | P8 | P10 |
| Pixel pitch point (mm) | 4.44 | 5.7 | 6.66 | 8 | 10 |
| Module Size (mm) | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 |
| Module pixel resolution | 108x72 | 84x56 | 72x48 | 60x40 | 48x32 |
| Physical pixels (dot/㎡) | 50630 | 30625 | 22500 | 15625 | 10000 |
| LED lamp bead model | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| White Balance brightness (cd/㎡) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Refresh rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Scanning mode (constant current drive) | 1/9 Sweep | 1/7 sweep | 1/6 sweep | 1/4 sweep | 1/2 sweep |
| PCB layers (mm) | 4 | 4 | 2 | 2 | 2 |
| Box size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Box pixel resolution | 216x216 | 168x168 | 144x144 | 120x120 | 96x96 |
| Box thickness (mm) | 77 | 77 | 77 | 77 | 77 |
| Lamp bead working life | ≥ 100,000 hours | ||||
| Contrast | ≥5000:1 | ||||
| Viewing Angle | 140°/140° | ||||
| Temperature | 2000-9500K | ||||
| Gray level | 14bit | ||||
| Maximum power (W/㎡) | 650W | ||||
| Average power (W/㎡) | 200W | ||||
| deghosting | equip | ||||
| Input voltage |
AC100～240V 50/60HZ (Wide voltage power supply) |
||||
| Module input voltage | DC4.2～5V±0.2V | ||||
| Class of protection | Front IP65,backIP54 | ||||
| Operating temperature and humidity | Temperature-10～50℃ Humidity10％-90％ | ||||
| Module + Weight (kg/ case) | 28kg | ||||
| Box material | Die-cast aluminum | ||||
| Maintenance mode | Front and rear maintenance | ||||
| Installation mode | Fixed installation |
||||
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
