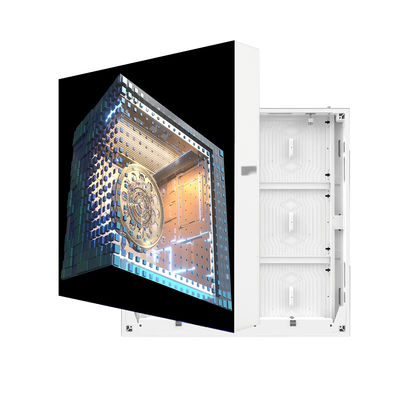

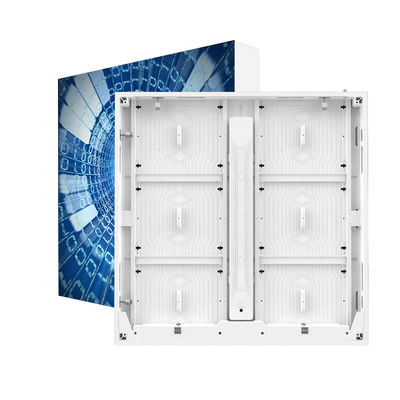

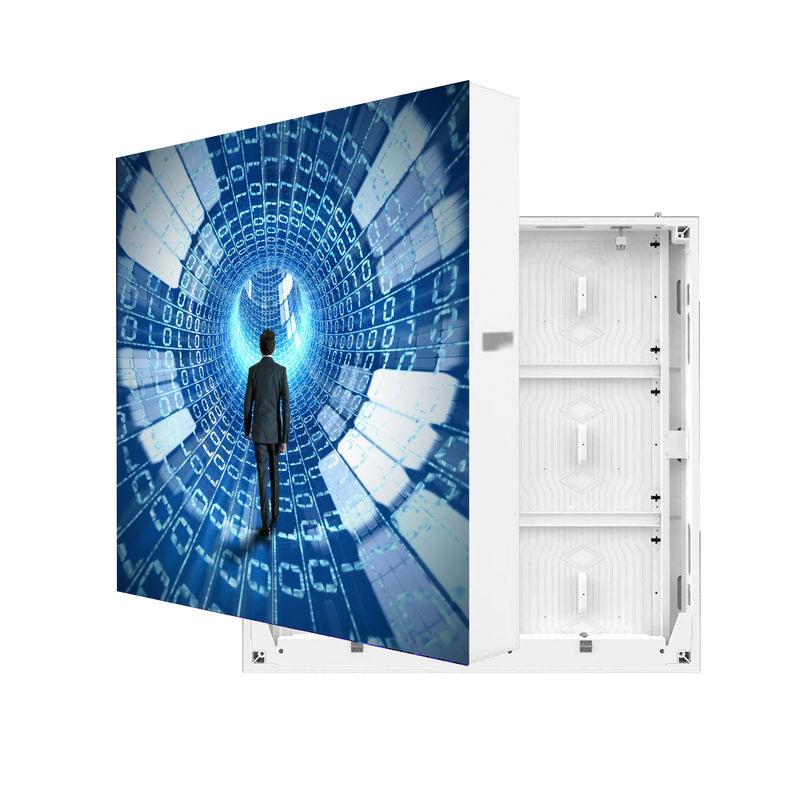

Customized High-Definition Glasses-Free 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FA-X 5.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $860.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Panel Size: | 480mmx320mm |
|---|---|---|---|
| Color: | Full Color | Pixel Pitch: | 5.7mm |
| Physical Pixels (dot/㎡): | 30625 | Brightness: | 6000 Cd/㎡ |
| Lamp Bead Working Life: | ≥ 100,000 Hours | Contrast Ratio: | ≥5000:1 |
| Refresh Rate: | 3840HZ | Module Size: | Customizable |
| LED Lamp Bead Model: | SMD1921 | Scan Method: | 1/7sweep |
| Maximum Power (W/㎡)resolution: | 650W | Average Power (W/㎡): | 200W |
| Highlight: | High-Definition Glasses-Free 3D Screen,Customized Glasses-Free 3D Screen,Aluminum Cabinet glass free 3d display |
||
Product Description
FA-X PH5.7 Customized Outdoor waterproof and dustproof LED Display Screen
Detailed product introduction document:Outdoor fixed installation front maintenance FA-X ...
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. shopping mall glass curtain wall
4. Subway/Metro Station
5.In the field of culture and entertainment, LED outdoor full-color displays are used in concerts, concerts, outdoor cinemas and other activities. Its high definition and high brightness can provide an immersive visual experience for the audience, enhancing the attractiveness and enjoyment of the event.
6. LED outdoor full-color display is widely used in the field of advertising. Whether it is a city street, a shopping mall, a stadium or a transportation hub, etc., LED outdoor full-color display can attract people's attention and convey advertising information and brand image.
Features:
1. high permeability, high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3.Three-level product aging process: firstly, the module produced by the automated assembly line is energized and aged for 24 hours, then the single box is energized and aged for 48 hours, and finally the finished display screen is simulated for 72 hours for continuous power-on aging, and it can be transported to the site for assembly only after passing the qualification.
4. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65.
Product Details
| Model number | P4.44 | P5.7 | P6.66 | P8 | P10 |
| Pixel pitch point (mm) | 4.44 | 5.7 | 6.66 | 8 | 10 |
| Module Size (mm) | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 |
| Module pixel resolution | 108x72 | 84x56 | 72x48 | 60x40 | 48x32 |
| Physical pixels (dot/㎡) | 50630 | 30625 | 22500 | 15625 | 10000 |
| LED lamp bead model | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| White Balance brightness (cd/㎡) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Refresh rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Scanning mode (constant current drive) | 1/9 Sweep | 1/7 sweep | 1/6 sweep | 1/4 sweep | 1/2 sweep |
| PCB layers (mm) | 4 | 4 | 2 | 2 | 2 |
| Box size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Box pixel resolution | 216x216 | 168x168 | 144x144 | 120x120 | 96x96 |
| Box thickness (mm) | 77 | 77 | 77 | 77 | 77 |
| Lamp bead working life | ≥ 100,000 hours | ||||
| Contrast | ≥5000:1 | ||||
| Viewing Angle | 140°/140° | ||||
| Temperature | 2000-9500K | ||||
| Gray level | 14bit | ||||
| Maximum power (W/㎡) | 650W | ||||
| Average power (W/㎡) | 200W | ||||
| deghosting | equip | ||||
| Input voltage |
AC100～240V 50/60HZ (Wide voltage power supply) |
||||
| Module input voltage | DC4.2～5V±0.2V | ||||
| Class of protection | Front IP65,backIP54 | ||||
| Operating temperature and humidity | Temperature-10～50℃ Humidity10％-90％ | ||||
| Module + Weight (kg/ case) | 28kg | ||||
| Box material | Die-cast aluminum | ||||
| Maintenance mode | Front and rear maintenance | ||||
| Installation mode | Fixed installation |
||||
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
