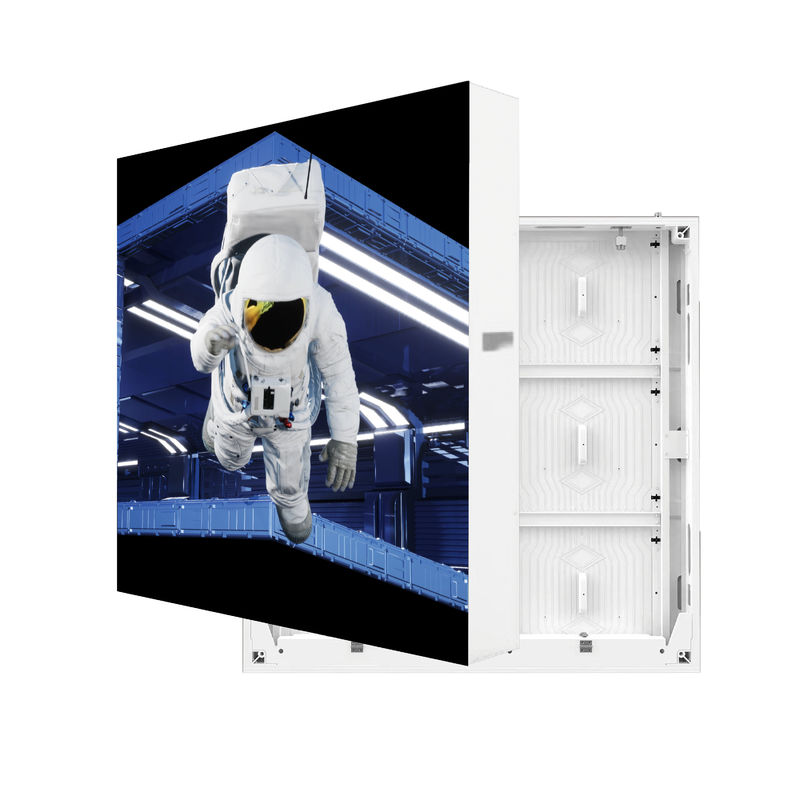

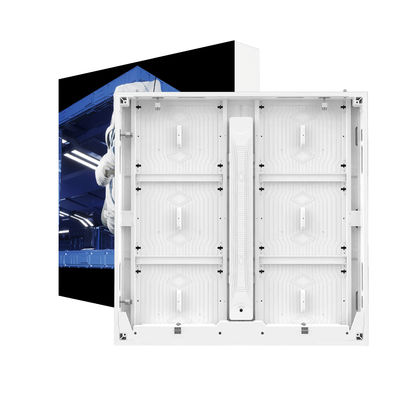

LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FA-X |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $860.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Panel Size: | 480mmx320mm |
|---|---|---|---|
| Color: | Full Color | Pixel Pitch: | 6.66mm |
| Physical Pixels (dot/㎡): | 22500 | Brightness: | 6000 Cd/㎡ |
| Lamp Bead Working Life: | ≥ 100,000 Hours | Contrast Ratio: | ≥5000:1 |
| Refresh Rate: | 3840HZ | Module Size: | Customizable |
| LED Chip: | SMD2727 | Scan Method: | 1/6sweep |
| Maximum Power (W/㎡)resolution: | 650W | Average Power (W/㎡): | 200W |
| Highlight: | High-Definition Naked-Eye 3D Screen,Aluminum Cabinet Naked-Eye 3D Screen,Naked-Eye 3D Outdoor LED Screen |
||
Product Description
Outdoor aluminium enclosure PH6.66 480mmx320mm Customized Outdoor waterproof and dustproof LED Display Screen
Detailed product introduction document:Outdoor fixed installation front maintenance FA-X ...
Applicable scenarios:
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Subway/Metro Station
4. Floor and Ceiling Display and Media Advertising
5.Commercial display
Features:
1. high permeability, high refresh and high gray scale
2. ultra high brightness and High definition
3. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65
4.Front and rear maintenance, convenient and fast
5.160° wide-area viewing angle
Product Details
| Model number | P4.44 | P5.7 | P6.66 | P8 | P10 |
| Pixel pitch point (mm) | 4.44 | 5.7 | 6.66 | 8 | 10 |
| Module Size (mm) | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 |
| Module pixel resolution | 108x72 | 84x56 | 72x48 | 60x40 | 48x32 |
| Physical pixels (dot/㎡) | 50630 | 30625 | 22500 | 15625 | 10000 |
| LED lamp bead model | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| White Balance brightness (cd/㎡) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Refresh rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Scanning mode (constant current drive) | 1/9 Sweep | 1/7 sweep | 1/6 sweep | 1/4 sweep | 1/2 sweep |
| PCB layers (mm) | 4 | 4 | 2 | 2 | 2 |
| Box size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Box pixel resolution | 216x216 | 168x168 | 144x144 | 120x120 | 96x96 |
| Box thickness (mm) | 77 | 77 | 77 | 77 | 77 |
| Lamp bead working life | ≥ 100,000 hours | ||||
| Contrast | ≥5000:1 | ||||
| Viewing Angle | 140°/140° | ||||
| Temperature | 2000-9500K | ||||
| Gray level | 14bit | ||||
| Maximum power (W/㎡) | 650W | ||||
| Average power (W/㎡) | 200W | ||||
| deghosting | equip | ||||
| Input voltage | AC100～240V 50/60HZ (Wide voltage power supply) AC200～240V 50/60HZ(narrow voltage power supply) |
||||
| Module input voltage | DC4.2～5V±0.2V | ||||
| Class of protection | Front IP65,backIP54 | ||||
| Operating temperature and humidity | Temperature-10～50℃ Humidity10％-90％ | ||||
| Module + Weight (kg/ case) | 28kg | ||||
| Box material | Die-cast aluminum | ||||
| Maintenance mode | Front and rear maintenance | ||||
| Installation mode | Fixed installation |
||||
