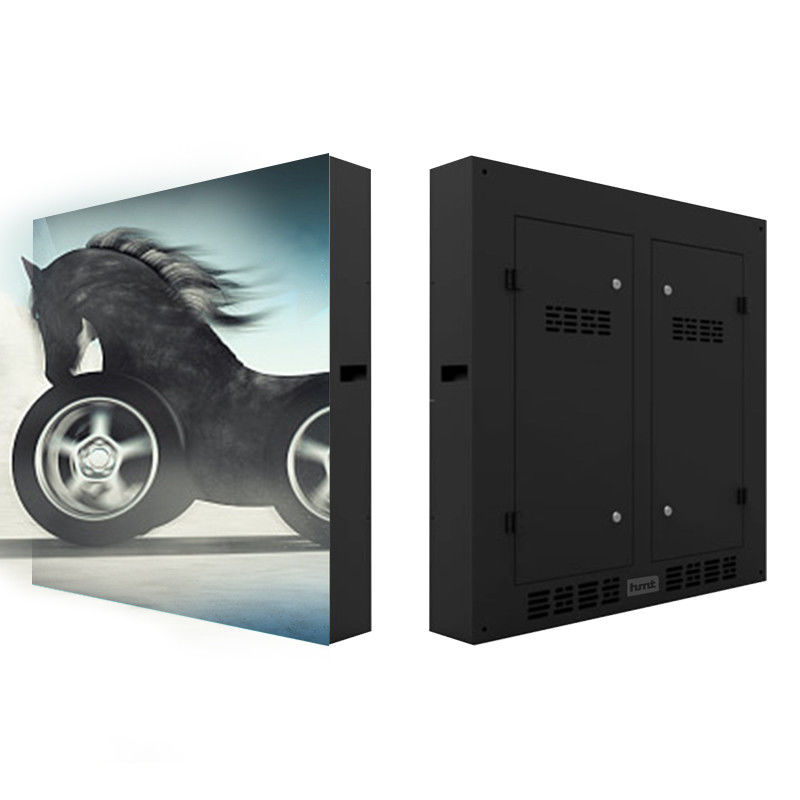

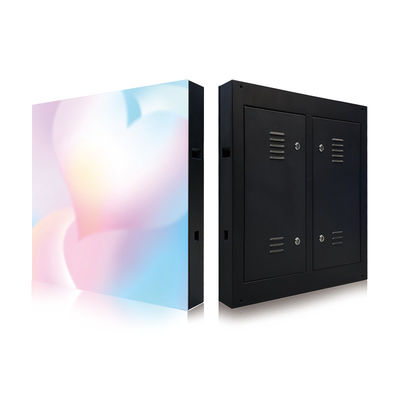

IP68 Naked Eye 3D LED Screen Outdoor Advertising 320x160mm Full Color
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-B PH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $400.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Color: | Full Color |
|---|---|---|---|
| Media Available: | Datasheet, Photo | Pixel Pitch: | 6mm |
| Specification: | Video Wall | Application: | Outdoor |
| Brightness: | 4500-7500 Cd/㎡ | Pixel Density: | 10000 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP68 |
| HS Code: | 8528591090 | Resolution: | 32x32 |
| Module Size: | 192x192 | LED Chip: | SMD2727/SMD3535 |
| Highlight: | Naked Eye 3D LED Screen Outdoor Advertising,Outdoor Naked Eye 3D Screen,IP68 LED Screen Outdoor Advertising |
||
Product Description
IP68 Naked Eye 3D LED Screen Outdoor Advertising 192x192mm Full Color
Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. radio and television studios
5. Floor and Ceiling Display and Media Advertising
6. Interior Decoration
Features:
1, outdoor waterproof: positive/back waterproof grade ip65;
2, HD display perfect level of enjoyment: 16Bits high gray level, 1920 high refresh, live switching without flicker;
3, fast, simple, convenient: multi-functional link, more stable, convenient, safe;
4, support arc splicing: can be customized arc lock, support multi-angle installation, splicing box seamless splicing;
5, convenient mixing: H500/H1000 box module common, play screen diversification;
6, high brightness: support indoor and outdoor universal.
Product Details
Models: FM-B PH6
| Pixel Pitch (mm) | 6 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 27777 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x32 | LED Composition | RGB three in one |
| Module Size | 192x192 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/8 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2727/SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
Application:
FAQ:
Q1: How to choose the resolution of LED display?
A1: The resolution of LED display depends on the pixel pitch. Common specifications include P1.25, P2, P3, P4, etc. The smaller the pixel pitch, the higher the resolution, which is suitable for close viewing, such as indoor small-pitch display. Large pitch (such as P4 and above) is more suitable for long-distance outdoor scenes.
Q2: What is the difference between small-pitch LED and traditional LED display?
A2: Small-pitch LED display has higher resolution and is suitable for closer viewing distance. It is often used in control rooms, conference rooms, and high-end display occasions. In contrast, traditional LED display has a larger pixel pitch and is suitable for long-distance outdoor applications.
