Low Consumption 3D LED Display Screen Outdoor Waterproof Customized
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 320mmx160mm |
| Media Available: | Datasheet, Photo | Pixel Pitch: | 2.5mm |
| Brightness: | 4500-6500 Cd/㎡ | Pixel Density: | 160000 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP65 |
| Resolution: | 128x64 | Refresh Rate: | 1920HZ/3840HZ |
| Module Size: | 320x160 | LED Chip: | SMD1415/SMD1921 |
| Weight: | 20kg/㎡ | Scan Mode: | 1/16 Scan |
| Highlight: | 3D LED Display Screen Outdoor,Low Consumption 3D LED Display Screen |
||
Product Description

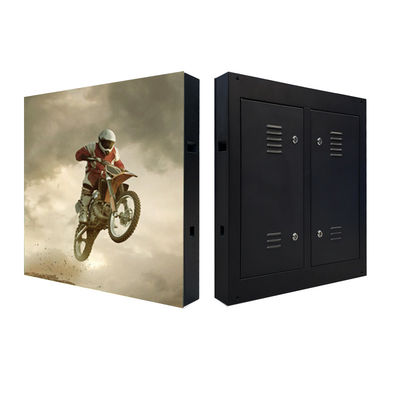

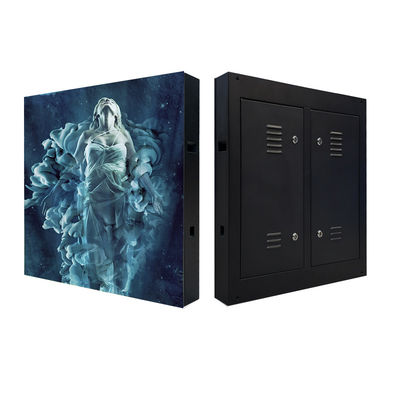

FM-A Customized Outdoor Waterproof low consumption 3D LED Display Screen
Outdoor Display Screen FM-A series

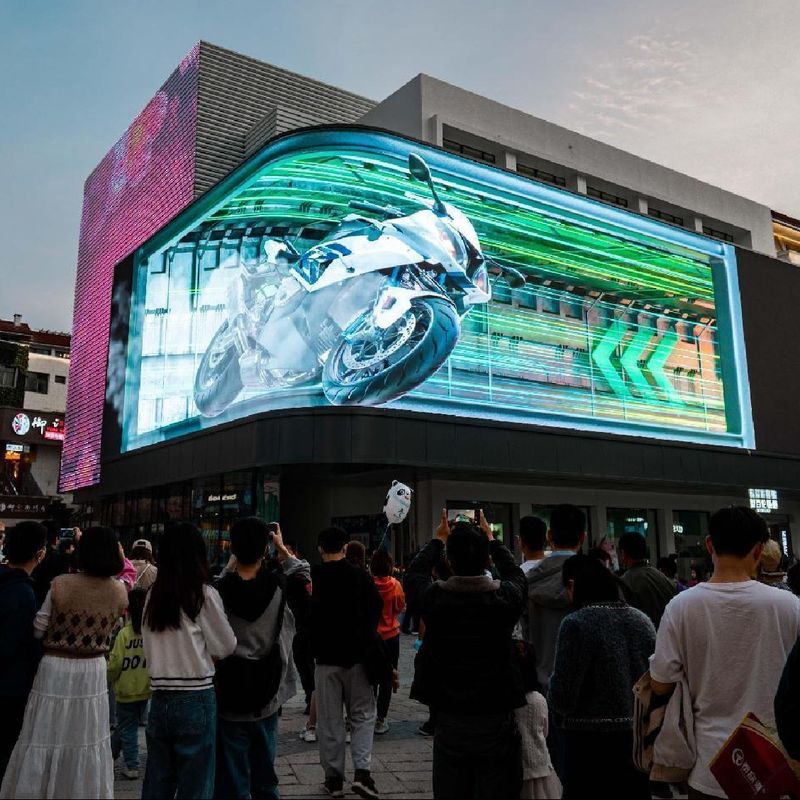

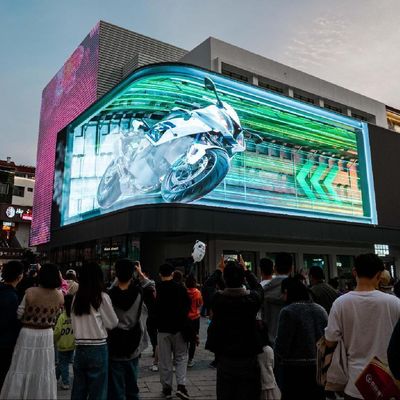

Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. space decoration
5. promotional activities
6. Floor and Ceiling Display and Media Advertising
Features:
1. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast;
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. Quick heat dissipation and energy saving: 30%~50% lower in power consumption than traditional led displays.
4. ultra high brightness and High definition
5. Outdoor waterproofing: front/back waterproof grade ip65
6. Fast, simple and convenient: multi-functional link, more stable, convenient and safe
Product Details
Models: FM-A 2.5
| Pixel Pitch (mm) | 2.5 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 160000 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 128x64 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1415/SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-6500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
