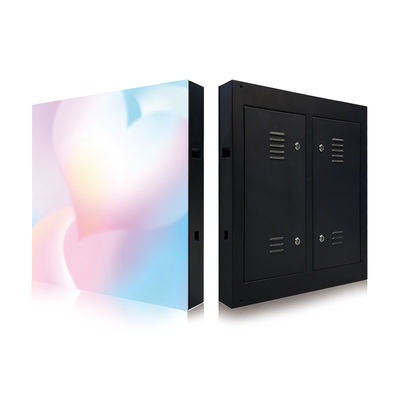

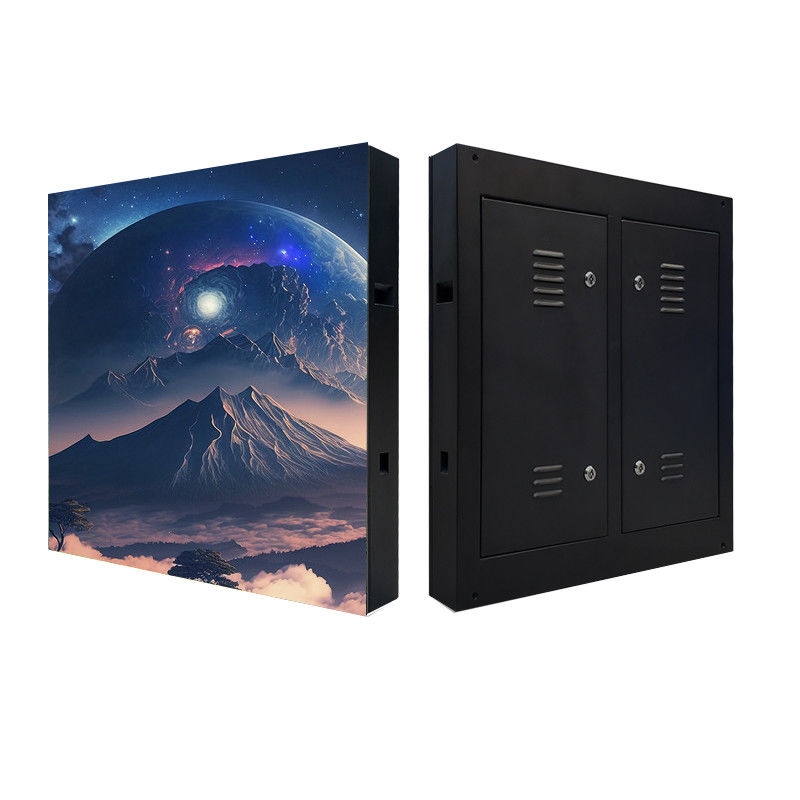

FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | $920.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Pixel Density: | 111111 Dot/㎡ | Brightness: | 4500-7500 Cd/㎡ |
|---|---|---|---|
| Type: | LED | Application: | Outdoor |
| Color: | Full Color | Media Available: | Datasheet, Photo |
| Panel Size: | 192mmx192mm | Pixel Pitch: | 3mm |
| Specification: | Video Wall | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | HS Code: | 8528591090 |
| Resolution: | 64x64 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD1415/SMD1921 | Scan Mode: | 1/16 Scan |
| Highlight: | 3D Outdoor Advertising LED Display Screen,3D Outdoor Advertising LED Display Screen IP65,RoHS IP65 LED Display Screen |
||
Product Description
FM-B PH3 Customized Outdoor Waterproof 3D Advertising LED Display Screen
Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. space decoration
5. promotional activities
6. Floor and Ceiling Display and Media Advertising
Features:
1. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65;
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. Quick heat dissipation and energy saving: 30%~50% lower in power consumption than traditional led displays.
4. ultra high brightness and High definition
5. wide viewing angle H120° V120°: To meet see-through video display requirements in multiple occasions.
6. Fast, simple and convenient: multi-functional link, more stable, convenient and safe
Product Details
Models: FM-B PH3
| Pixel Pitch (mm) | 3 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 111111 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 64x64 | LED Composition | RGB three in one |
| Module Size | 192x192 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1415/SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
Application:
