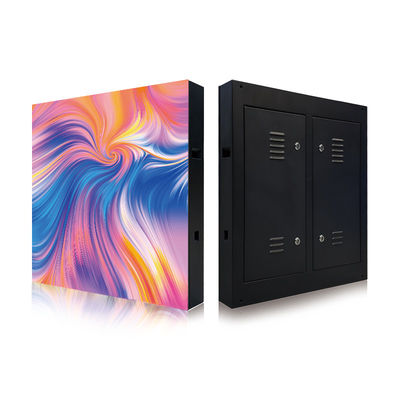

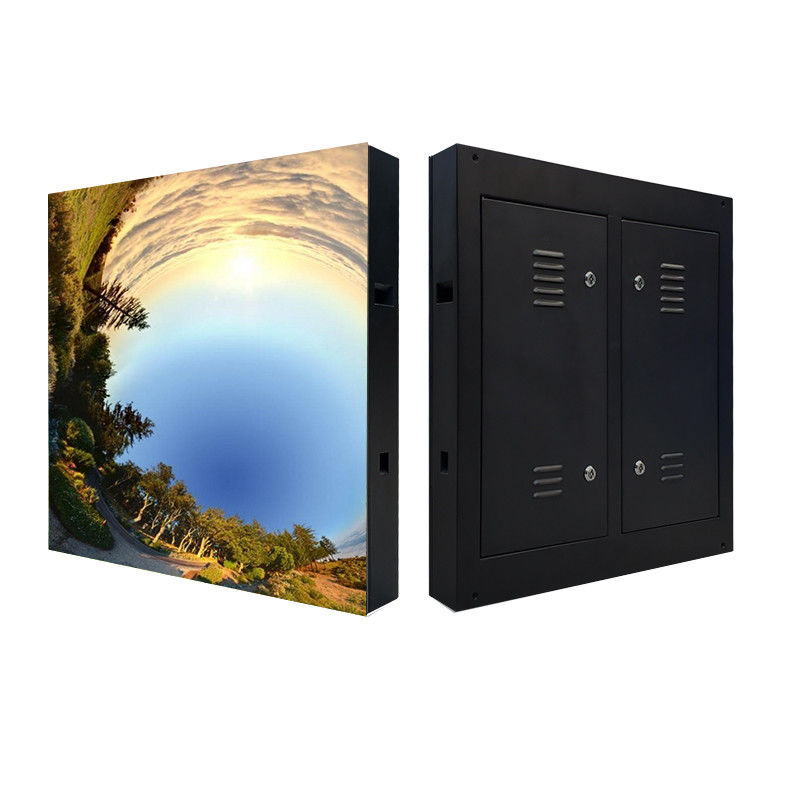

FM-B PH8 Outdoor LED Advertising Display Screen 256mmx128mm For Stage Performance
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-B PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 256mmx128mm |
| Pixel Pitch: | 8mm | Specification: | Video Wall |
| Brightness: | 4500-7500 Cd/㎡ | Pixel Density: | 15625 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP65 |
| Resolution: | 32x16 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD3535 | Weight: | 25kg/㎡ |
| Highlight: | RoHS Outdoor LED Advertising Display Screen,LED Advertising Display Screen 256mmx128mm,FCC Outdoor Advertising Screen Display |
||
Product Description
FM-B PH8 256mmx128mm Customized Outdoor LED adervertising Display Screen
Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf
Applicable scenarios:
1. commercial real estate , stage performance
2. welcome display and restaurant
3. shopping mall glass curtain wall
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. Interior Decoration and Super Market
Features:
1. high permeability, high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. good heat dissipation
4. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy, Faster and easier installation.
5. strong heat dissipation
6. The best price. You are welcome to contact us for a free project evaluation.
7. Outdoor fixed installation, resistant to various working conditions
Product Details
Models: FM-B PH8
| Pixel Pitch (mm) | 8 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 15625 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x16 | LED Composition | RGB three in one |
| Module Size | 256x128 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
