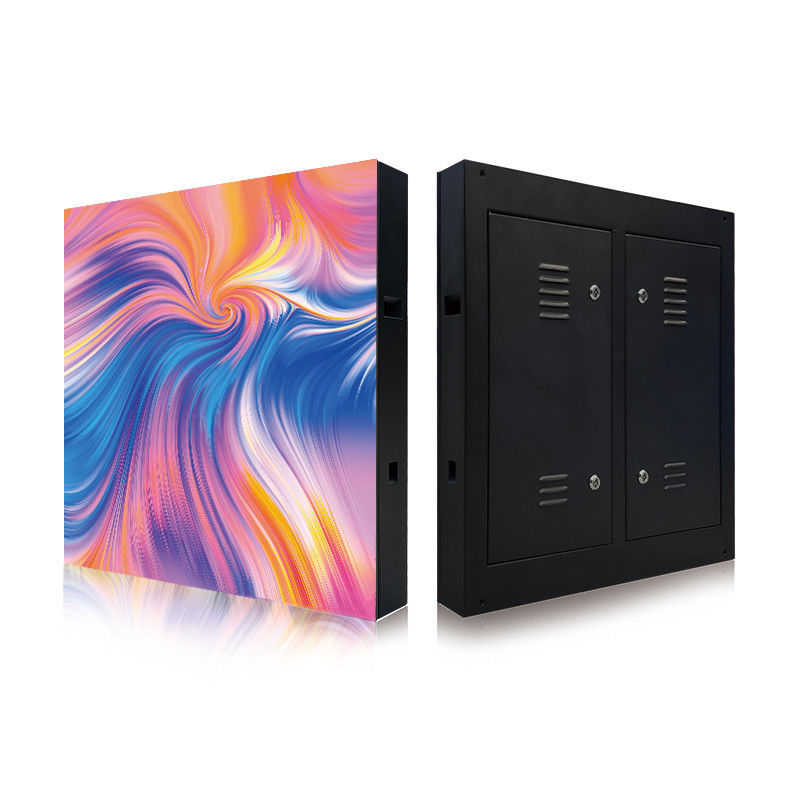

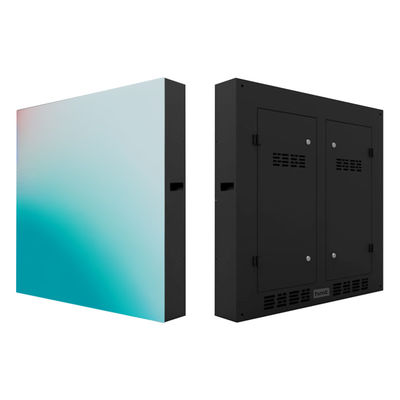

Thin Outdoor LED Display Screen Waterproof 320mmx160mm High Definition LED Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | one module price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Brightness: | 4500-7500 Cd/㎡ |
|---|---|---|---|
| Pixel Density: | 15625 Dot/㎡ | Lifespan (hours): | ≥100000H |
| Panel Size: | 320mmx160mm | IP Rating: | IP65 |
| Resolution: | 40x20 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD3535 | Weight: | 25kg/㎡ |
| Highlight: | Thin Outdoor LED Display Screen,Outdoor LED Display Screen Waterproof,320mmx160mm High Definition LED Screen |
||
Product Description
FM-A 320mmx160mm Customized various control ways Outdoor Advertising display Screen
Detailed product introduction document:PH6-PH10 outdoor fixed sheet metal box FM-A series...
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. shopping mall glass curtain wall
4. Subway/Metro Station
5. Floor and Ceiling Display and Media Advertising
6. Interior Decoration and Super Market
7. publicity activities
8.banquet activities
Features:
1. high permeability, high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. good heat dissipation
4. outdoor waterproof: positive/back waterproof grade ip65;
5. HD display perfect level of enjoyment: 16Bits high gray level, 1920 high refresh, live switching without flicker;
Product Details
Models: FM-A PH8
| Pixel Pitch (mm) | 8 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 15625 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 40x20 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/5 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
