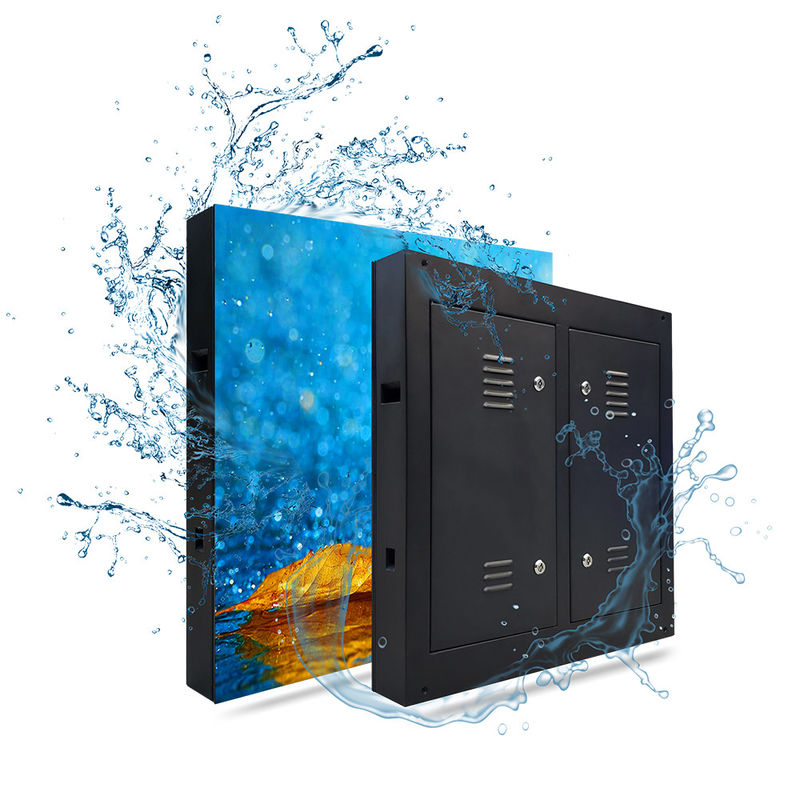

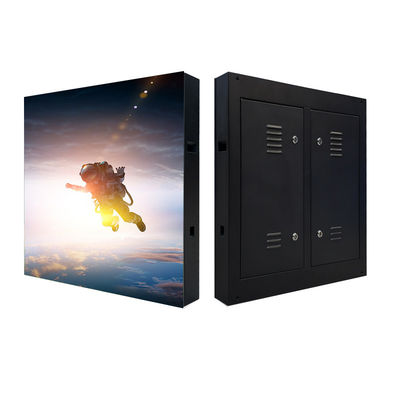

FM-A PH8 320mmx160mm Naked Eye 3D LED Screen For Advertising Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | FM-A PH8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | $450.00-800.00/square meters |
| Packaging Details: | Flight case |
|
Detail Information |
|||
| Application: | Naked Eye 3D LED Screen | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 320mmx160mm |
| Supplier Type: | Original Manufacturer, ODM, Agency, Retailer, Other, OEM | Media Available: | Datasheet, Photo |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education | Pixel Pitch: | 8mm |
| Specification: | Video Wall | Brightness: | 4500-7500 Cd/㎡ |
| Pixel Density: | 15625 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP68 | HS Code: | 8528591090 |
| Module Size: | 320x160 | Refresh Rate: | 1920/3840HZ |
| Highlight: | 320mmx160mm Naked Eye 3D LED Screen,Naked Eye 3D LED Screen For Advertising Outdoor |
||
Product Description
FM-A PH8 320mmx160mm Naked Eye 3D LED Screen For Advertising Outdoor
Detailed product introduction document:PH6-PH10 outdoor fixed sheet metal box FM-A series...
Product Description:
LED outdoor fixed installation is a kind of LED display screen specially used in outdoor environment, mainly used for long-term fixed installation in outdoor scenes, such as billboards, stadium displays, shopping mall exterior walls, naked eye 3D, etc. Compared with other types of LED displays, the design of outdoor fixed installation LED display screen pays more attention to weather resistance, stability and long-term use requirements.
Product Parameters:
| Pixel Pitch (mm) | 8 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 16525 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 32x16 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2727/SMD3535 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |
Product Advantages:
1. High brightness:
The outdoor environment has complex light, especially under direct sunlight during the day, the screen still needs to be clearly visible. Therefore, outdoor fixed LED display screens usually have very high brightness, usually ranging from 5000 to 8000 nits (nits) or more, to ensure that the content can be clearly displayed day and night.
2. Waterproof and dustproof design:
In order to cope with harsh outdoor weather conditions (such as rain, dust, wind and sand, etc.), LED outdoor fixed screens adopt a fully enclosed design, usually with an IP68 or higher protection level. This means that it has good waterproof and dustproof capabilities and can adapt to long-term outdoor use.
3. High temperature resistance and UV resistance:
Due to long-term exposure to sunlight, LED display screens need to have good high temperature resistance and UV resistance to prevent color attenuation and brightness reduction caused by high temperature or sun exposure.
4. Wide viewing angle:
In order to ensure that the content can be clearly seen at different angles, LED outdoor fixed screens usually have a larger viewing angle (such as 140° to 160°), which is suitable for the viewing needs of large outdoor crowds.
5. Long life and quick maintenance:
The design of outdoor fixed screens focuses on long-term use, and the general service life can reach more than 100,000 hours. In addition, outdoor fixed screens are usually equipped with a front maintenance design to facilitate daily maintenance and quick replacement of damaged modules.
6. Intelligent control and remote management:
Many modern LED outdoor fixed screens have intelligent control systems that can be remotely managed via the Internet or LAN. This allows advertisers and operators to update display content at any time without complicated operations, improving operational efficiency.
7. Adapt to a variety of installation methods:
The structure of the fixed LED display can be customized according to different scenarios and is suitable for a variety of installation methods, including wall installation, column installation, hanging installation, etc., to flexibly meet different outdoor advertising and information display needs.
8. Energy saving and environmental protection:
Since outdoor fixed screens usually need to run for a long time, energy-saving design is particularly important. Modern LED outdoor fixed screens mostly use efficient power management and energy-saving LED lamp beads to reduce energy consumption and reduce operating costs.
Product Areas:
1. Outdoor billboards.
2. Stadium display screens.
3. City square display screens.
4. Airport and railway station information screens.
5. Commercial center display screens.
6. Large concert and event display screens.
7. Port and dock information screens.
8. Government public information release screens.
9. Gas station price display screens.
10. Outdoor building decoration screens.
11. Large amusement parks and theme park information screens.
12. Hospital and medical institution announcement screens.
13. Exhibition venues and expositions LED display screens.
Application:
FAQ:
Q1:When will you make the delivery?
A1.We can make the delivery within 7-35 working days .
Q2 : What is the maintenance method for the product
A : front and rear maintenance.
