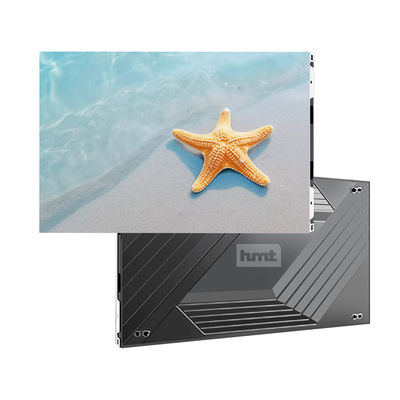

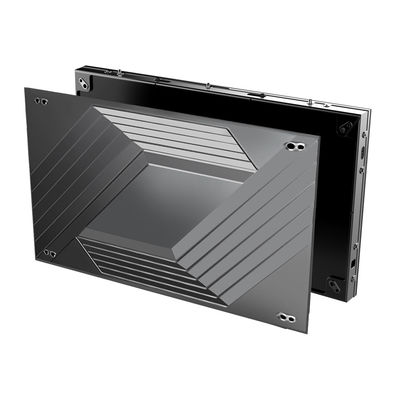

Indoor Smart Display Terminal Mini/Micro All Flip COB Series COB-Z PH0.78mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | COB-Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $7,780.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Small Pixel Pitch LED Panel | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 600mmx337.5mmx32.5mm | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 0.78mm | Specification: | Video Wall |
| Application: | Indoor | Brightness: | 500-800 Cd/㎡ |
| Pixel Density: | 1638400 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Lifespan (hours): | ≥100000H | HS Code: | 8528591090 |
| Resolution: | 768x432 | Material: | Die-casting Aluminum |
| Maintenance: | Front Maintenance | Refresh Rate: | 3840HZ |
| LED Chip: | MINI4in1 | ||
| Highlight: | Indoor Smart Display Terminal,PH0.78mm Smart Display Terminal |
||
Product Description
Indoor Smart Display Terminal Mini/Micro All Flip COB Series COB-Z PH0.78mm
Detailed product introduction document:Small Pitch COB-Z Series.pdf
Applicable scenarios:
1. government and enterprise conference hall
2. radio and television studio
3. education and training centre
4. exhibition display
Features:
1.Ultra-thin 16:9 gold display ratio, easy to achieve 4K/8K broadcast HD;
2. Ultra-black flexible polymer packaging technology, contrast up to 20000:1;
3. Dust proof, shock proof, collision proof, moisture proof, anti-oxidation, anti-static, etc.;
4. Ordinary cathode circuit design, low power consumption; 40% energy saving compared with traditional displays;
5. All quiet energy-saving design, no fan, natural heat dissipation.
Product Details
Models: COB-Z
| Mini COB Pro Specification parameters black crystal diamond Pro | |||||
| Series | COB-Z Series | ||||
| Model | PH0.78 | PH0.93 | PH1.25 | PH1.56 | PH1.87 |
| Packaging process | Fully inverted COB | Fully inverted COB | Fully inverted COB | Fully inverted COB | Fully inverted COB |
| Module surface process | Matte fog surface | Matte fog surface | Matte fog surface | Matte fog surface | Matte fog surface |
| Pixel pitch point(mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 | 1.87 |
| COB Module size specifications(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| COB Module pixel resolution | 192x216 | 160x180 | 120x135 | 96x108 | 80x90 |
| COB Panel resolution (left and right panels) | / | / | / | / | / |
| Physical pixels(dot/㎡) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Circuit scheme | Common cathode circuit | Common cathode circuit | Common positive circuit | Common positive circuit | Common positive circuit |
| White balance brightness(cd/㎡) | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 |
| Refresh rate(Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Box size and specifications(mm) | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 |
| Box pixel resolution | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 |
| Box thickness(mm) | 28 | 28 | 28 | 28 | 28 |
| Module + weight(kg/Cabinet) | 3.8(Module accessories)+4.2(Die-cast aluminum box)=8kg | ||||
| Working life | ≥100,000 hours | ||||
| Contrast | 20000:1 | ||||
| Grayscale | 18-20bit+ (Control system algorithm processing) | ||||
| Maximum power(W/㎡) | 300-400W | ||||
| Conventional power(W/㎡) | 150-200W | ||||
| Input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Operating temperature and humidity | Temperature-10～40℃ Humidity10％-90％ | ||||
| Cabinet material | Die-cast aluminum | ||||
| Maintenance method | Pre-maintenance | ||||
| Installation method | Enclosure mounting | ||||
