Die casting Aluminum LED Pixel Screen , Indoor Small Pixel LED Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XA-I PH1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1013.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Panel Size: | 600mmx337.5mm | Color: | Full Color |
| Pixel Pitch: | 1.5625mm | Specification: | Video Wall |
| Brightness: | 500-800 Cd/㎡ | Pixel Density: | 360000 Dot/㎡ |
| Contrast Ratio: | ≥5000:1 | Lifespan (hours): | ≥100000H |
| Resolution: | 384x216 | Refresh Rate: | 3480HZ |
| Material: | Die-casting Aluminum | LED Chip: | SMD1010/1212 |
| Highlight: | Die Casting Aluminum LED Pixel Screen,Indoor Small Pixel LED Display,Small Pixel LED Display Screen |
||
Product Description

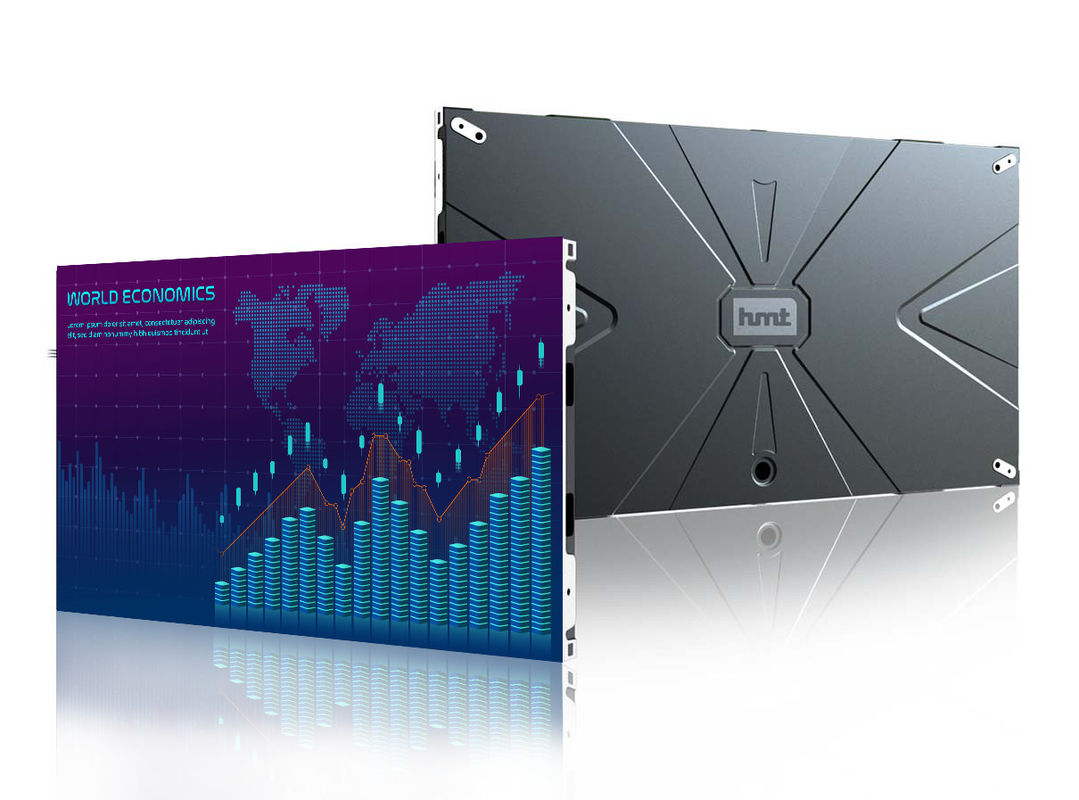

XA-I PH1.56 High Refresh Die-casting Aluminum LED Panel Indoor Small Pixel Pitch LED Display
Detailed product introduction document:Small Pitch XA-I Series.pdf
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6. exhibition display
7.Business center scene
8.Costume institute scene
Features:
1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. The thinnest display body in the industry, lighter weight, more beautiful when installed close to the wall, and the installation surface can bear load without pressure;
4. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
5. High grayscale, high refresh lossless display technology.
Product Details
Models: XA-I PH1.56
| Pixel Pitch (mm) | 1.5625 | Refresh Rate (HZ) | 3840 |
| Module Size (mm) | 192x108 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 144x72 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 360000 | Gray Scale | 16bit |
| Lamp Type | SMD1212 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/24 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 17 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 600x337.5 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 384x216 | Cabinet Weight | 6.5kg |
| Cabinet Thickness (mm) | 61 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installationn/ Cabinet installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
