XA-I 2.3 LED Video Wall Pixel Pitch 2.3mm Indoor Fine Pixel LED Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XA-I PH2.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1280/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | LED Video Wall Pixel Pitch | Panel Size: | 600mmx337.5mmx32.5mm |
|---|---|---|---|
| Pixel Pitch: | 2.3mm | Brightness: | 500-800 Cd/㎡ |
| Pixel Density: | 182044 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Resolution: | 256X144 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD1515/2020 | Material: | Die-casting Aluminum |
| Scan Mode: | 1/36 Scan | Module Size: | 300mmx168.75mmx3mm |
| Highlight: | HMT-XA2.3 LED Video Wall Pixel Pitch,Indoor Fine Pixel LED Display,LED Video Wall Pixel Pitch 2.3mm |
||
Product Description

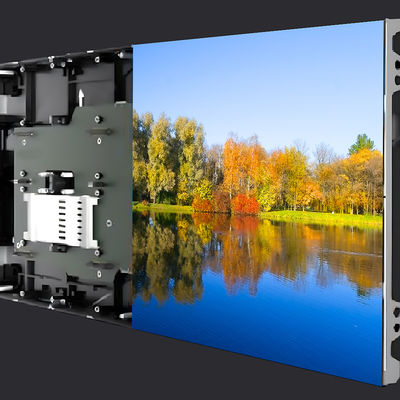

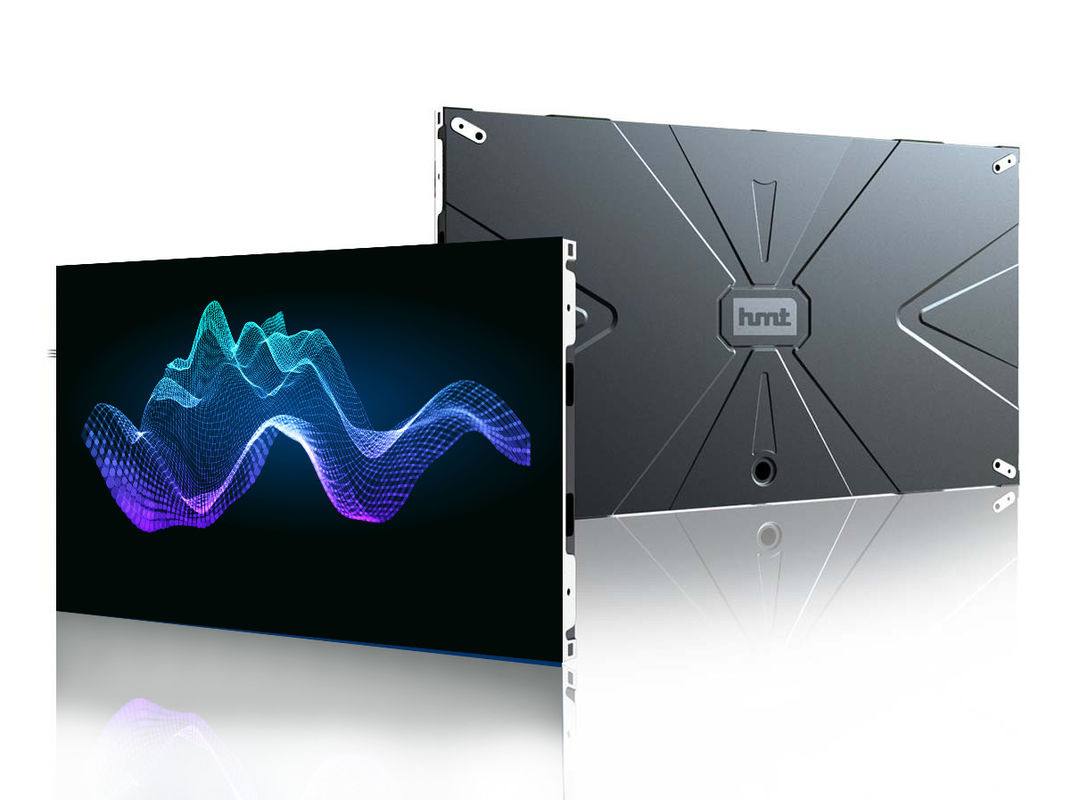

XA-I PH2.3 Video Wall LED Panel Indoor Small Pixel Pitch LED Display Screen
Detailed product introduction document:Small Pitch XA-I Series.pdf
Applicable scenarios :
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6. exhibition display
Features:
1. The thinnest display body in the industry is lighter in weight, more beautiful in fitting with the wall, and the mounting surface bears no pressure;
2. Support hard link, complete front maintenance, no wiring on the back of the press;
3. 16:9 standard display scale, suitable for security audio-visual applications;
4. High grayscale, high refresh and lossless display technology.
Product Details
Models: XA-I PH2.3
| Pixel Pitch (mm) | 2.34 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 300x168.75x3 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 128x72 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 182044 | Gray Scale | 16bit |
| Lamp Type | SMD1515/2020 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/36 Scan | Eliminate Shadows | Equipment |
| PCB Thickness (mm) | 1.6 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 600x337.5 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 256X144 | Cabinet Weight | 7.8kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
