High Refresh Small Pixel Pitch LED Screen 1.2mm Smallest Pixel Pitch LED Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XA-I PH1.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $2200/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Panel Size: | 600mmx337.5mmx32.5mm | Application: | Indoor |
|---|---|---|---|
| Color: | Full Color | Brightness: | 500-800 Cd/㎡ |
| Pixel Density: | 640000 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Lifespan (hours): | ≥100000H | Pixel Pitch: | 1.2mm |
| Resolution: | 480x270 | Material: | Die-casting Aluminum |
| Refresh Rate: | 3840HZ | Scan Mode: | 1/45 Scan |
| Highlight: | High Refresh Small Pixel Pitch LED Screen,Small Pixel Pitch LED Screen 1.2mm,RoHS Smallest Pixel Pitch LED Wall |
||
Product Description

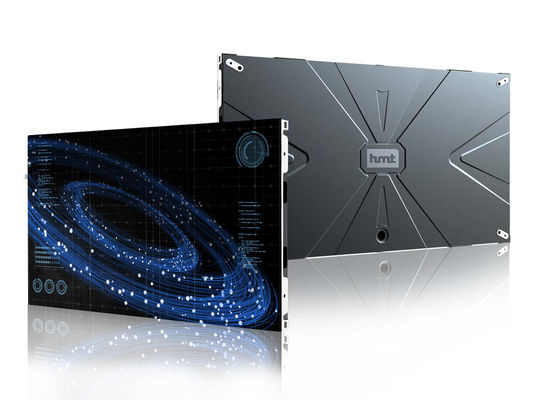

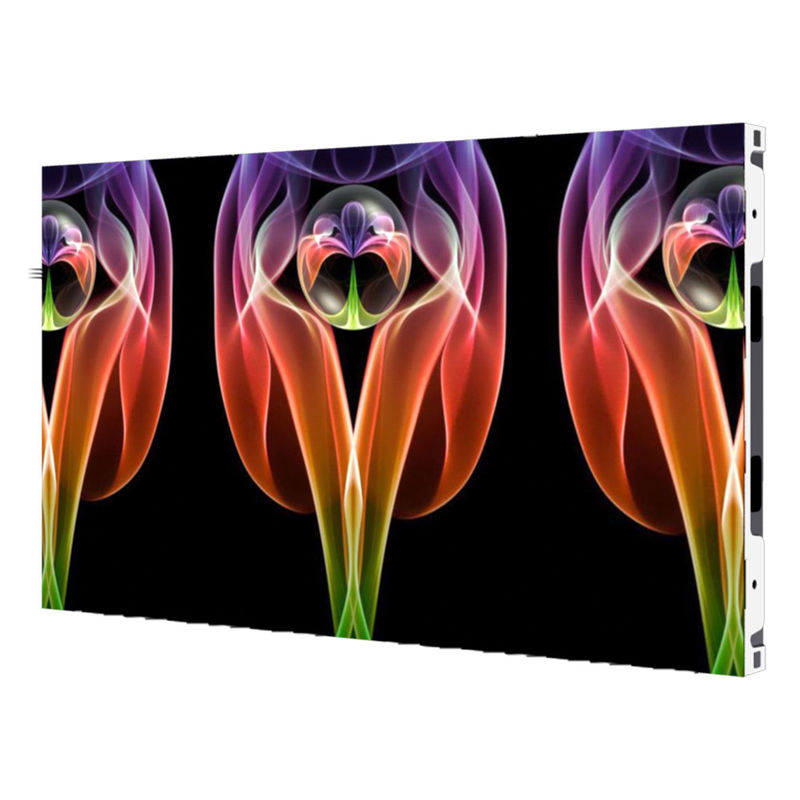

XA-I PH1.2 High Grayscale High Refresh Indoor Small Pixel Pitch LED Display Screen
Detailed product introduction document:Small Pitch XA-I Series.pdf
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6. exhibition display
7.Commercial real estate
8.Cultural creativity
Features:
1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. The thinnest display body in the industry, lighter weight, more beautiful when installed close to the wall, and the installation surface can bear load without pressure;
4. 16:9 standard display ratio, suitable for security audio-visual applications;
5. High grayscale, high refresh lossless display technology.
6. High contrast, faster response and high refresh rate
7. Naturalization of color reduction
8. Stereo viewing experience
Product Details
Models: XA-I PH1.2
| Pixel Pitch (mm) | 1.25 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 300x168.75x3 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 240x135 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 640000 | Gray Scale | 16bit |
| Lamp Type | SMD1010 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/45 Scan | Eliminate Shadows | Equipment |
| PCB Thickness (mm) | 1.6 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 600x337.5 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 480x270 | Cabinet Weight | 7.8kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
