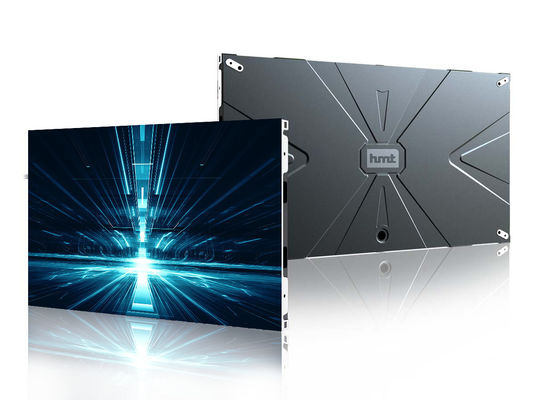

XA-I 0.9 Fine Pitch LED Video Wall , Full Color Small Pixel Pitch LED Panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XA-I 0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $7,780.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Small Pixel Pitch LED Panel | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 600mmx337.5mmx32.5mm | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 0.9mm | Specification: | Video Wall |
| Application: | Indoor | Brightness: | 500-800 Cd/㎡ |
| Pixel Density: | 1137778 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Lifespan (hours): | ≥100000H | HS Code: | 8528591090 |
| Resolution: | 640x360 | Material: | Die-casting Aluminum |
| Maintenance: | Front Maintenance | Refresh Rate: | 3840HZ |
| Scan Mode: | 1/60 Scan | LED Chip: | MINI4in1 |
| Highlight: | FCC Fine Pitch LED Video Wall,Full Color Small Pixel Pitch LED Panel |
||
Product Description
XA-I 0.9 High Grayscale High Refresh Die-casting Aluminum Video Wall LED Panel Indoor Small Pixel Pitch LED Display
Detailed product introduction document:Small Pitch XA-I Series.pdf
Applicable scenarios:
1. government and enterprise conference hall
2. radio and television studio
3. education and training centre
4. exhibition display
5.Traffic hub scene
6.Bureau history hall scene
7.Party building service center
Features:
1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. 1. led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
4. 16:9 standard display ratio, suitable for security audio-visual applications;
5. High grayscale, high refresh lossless display technology.
Product Details
Models: XA-I
| Indoor Small Pixel Pitch LED Screen (XA-I series) | |||||
| Models | XA-I 0.9 | XA-I 1.2 | XA-I 1.5 | XA-I 1.8 | XA-I 2.3 |
| Pixel Pitch (mm) | 0.9 | 1.2 | 1.5 | 1.8 | 2.3 |
| Module size (mm) | 300x168.75x3 | 300x168.75x3 | 300x168.75x3 | 300x168.75x3 | 300x168.75x3 |
| Module pixel | 320x180 | 240x135 | 192x108 | 160x90 | 128x72 |
| Pixel Density (dot/㎡) | 1137778 | 640000 | 409600 | 284444 | 182044 |
| LED lamp type | MINI4in1 | SMD1010 | SMD1212 | SMD1515 | SMD1515/2020 |
| Brightness (cd/㎡) | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 1920/3840 | 1920/3840 |
| Scan mode | 1/60th Scan | 1/45 Scan | 1/54 Scan | 1/45 Scan | 1/36 Scan |
| PCB thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| Cabinet size (mm) | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 |
| Cabinet pixel | 640x360 | 480x270 | 384x216 | 320x180 | 256X144 |
| Cabinet thickness (mm) | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 |
| Lifespan | ≥ 100,000 hours | ||||
| Contrast | ≥5000:1 | ||||
| Colour Temperature | 2000-9500K adjustable | ||||
| Grey Scale | 16bit | ||||
| Conventional power (W/㎡) | 500-600W | ||||
| Eliminate Shadows | equip | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Working temperature and humidity | Temperature : -10 ~ 40℃ and humidity : -10% ~ 90% | ||||
| Weight (kg/Cabinet) | 3.6 (module accessory) +4.2 (die-cast aluminum cabinet) = 7.8kg. | ||||
| Cabinet material | Die casting aluminum | ||||
| Maintenance | front maintenance | ||||
| Installation | Magnetic installation / Cabinet installation | ||||
