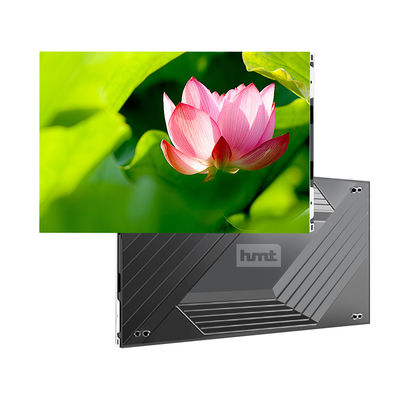

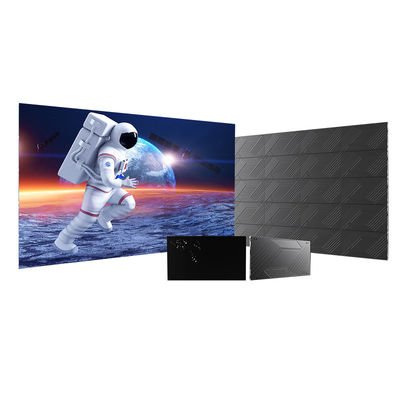

COB Series Small Pixel Pitch LED Panel 640x360 Full Color Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | HMT-Z (cob) |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $7,780.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Small Pixel Pitch LED Panel | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 600mmx337.5mmx32.5mm | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 0.93mm | Specification: | Video Wall |
| Application: | Indoor | Brightness: | 500-600 Cd/㎡ |
| Pixel Density: | 1137778 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Lifespan (hours): | ≥100000H | HS Code: | 8528591090 |
| Resolution: | 640x360 | Material: | Die-casting Aluminum |
| Maintenance: | Front Maintenance | Refresh Rate: | 3840HZ |
| Scan Mode: | 1/60 Scan | LED Chip: | MINI4in1 |
| Highlight: | Small Pixel Pitch LED Panel 640x360,Small Spacing Full Color Video Wall |
||
Product Description
Small spacing Z (cob) series
"Screen" display is brilliant

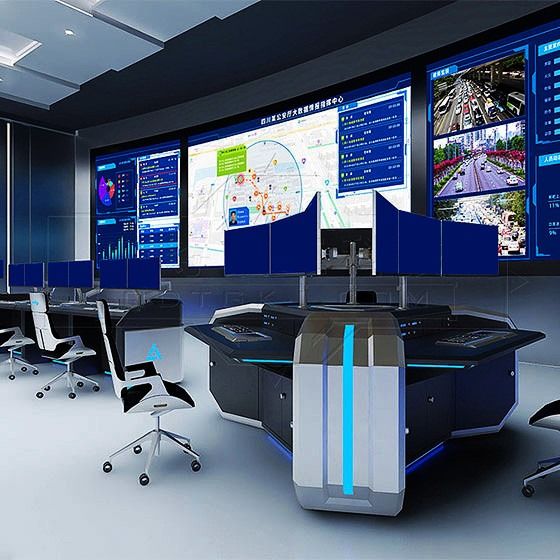

Applicable scenarios :
1. government and enterprise conference hall
2. radio and television studio
3. education and training centre
4. exhibition display
5.Traffic hub scene
6.Bureau history hall scene
Features:
1. Ultra-thin 16:9 gold display ratio, easy to achieve 4K/8K broadcast HD;
2. With 125% of the NTSC color gamut of broadcast grade, it has excellent color expression and reduction;
3. It has the functions of dustproof, shockproof, anti-collision, moisture-proof, anti-oxidation, anti-static, etc;
4. Common cathode circuit design, low power consumption, 40% energy saving than traditional display;
5. Fully silent energy-saving design, no fan, natural heat dissipation.
Product Details
Models: Z
| Mini COB Pro Specification parameters black crystal diamond Pro | |||||
| Series | Z Series | ||||
| Model | Z0.78 | Z0.93 | Z1.25 | Z1.56 | Z1.87 |
| Packaging process | Fully inverted COB | Fully inverted COB | Fully inverted COB | Fully inverted COB | Fully inverted COB |
| Module surface process | Matte fog surface | Matte fog surface | Matte fog surface | Matte fog surface | Matte fog surface |
| Pixel pitch point(mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 | 1.87 |
| COB Module size specifications(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| COB Module pixel resolution | 192x216 | 160x180 | 120x135 | 96x108 | 80x90 |
| COB Panel resolution (left and right panels) | / | / | / | / | / |
| Physical pixels(dot/㎡) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Circuit scheme | Common cathode circuit | Common cathode circuit | Common positive circuit | Common positive circuit | Common positive circuit |
| White balance brightness(cd/㎡) | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 |
| Refresh rate(Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Box size and specifications(mm) | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 |
| Box pixel resolution | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 |
| Box thickness(mm) | 28 | 28 | 28 | 28 | 28 |
| Module + weight(kg/Cabinet) | 3.8(Module accessories)+4.2(Die-cast aluminum box)=8kg | ||||
| Working life | ≥100,000 hours | ||||
| Contrast | 20000:1 | ||||
| Grayscale | 18-20bit+ (Control system algorithm processing) | ||||
| Maximum power(W/㎡) | 300-400W | ||||
| Conventional power(W/㎡) | 150-200W | ||||
| Input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Operating temperature and humidity | Temperature-10～40℃ Humidity10％-90％ | ||||
| Cabinet material | Die-cast aluminum | ||||
| Maintenance method | Pre-maintenance | ||||
| Installation method | Enclosure mounting | ||||
Application:
FQA:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: What LED screen size you can do?
A: One LED panel size is 500mmx500mm, also have 500x1000mm for option, the whole screen size can be customized based on client's demand.
