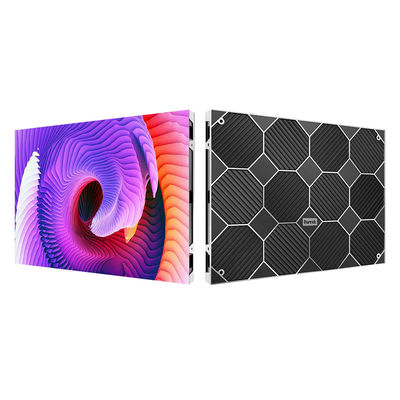

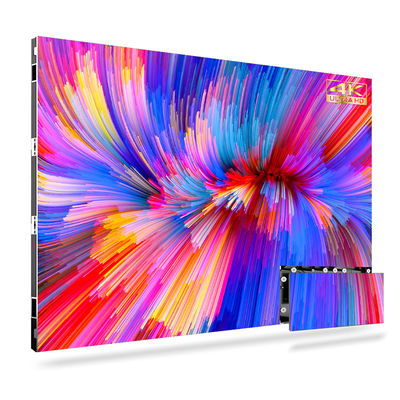

Easy Install 1.2mm Small Pixel Pitch LED Screen / Indoor Fine Pitch LED Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XM-II PH1.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $2,200.00/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Fine Pitch LED Screen | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 640mmx480mm | Pixel Pitch: | 1.2mm |
| Brightness: | 500-800 Cd/㎡ | Pixel Density: | 640000 Dot/㎡ |
| Contrast Ratio: | ≥5000:1 | Lifespan (hours): | ≥100000h |
| Application: | Indoor | Resolution: | 512x384 |
| Material: | Die-casting Aluminum | LED Chip: | SMD1010 |
| Module Size: | 320x160 | Scan Mode: | 1/64 Scan |
| Refresh Rate: | 3480HZ | Cabinet Weight: | 7.2kg |
| Highlight: | Easy Install Small Pixel Pitch LED Screen,1.2mm Small Pixel Pitch LED Screen,Indoor Fine Pitch LED Screen |
||
Product Description
XM-II PH1.2 High Grayscale easy to install Indoor Small Pixel Pitch LED Display Screen
Detailed product introduction document:Small Pitch XM-II Series.pdf
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5.Cultural tourism
6.Smart city
7.Seamless stitching
Features:
1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. The thinnest display body in the industry, lighter weight, more beautiful when installed close to the wall, and the installation surface can bear load without pressure;
4.Business center scene
5.Car 4S shop scene
Product Details
Models: XM-II PH1.2
| Pixel Pitch (mm) | 1.25 | Refresh Rate (HZ) | 3840 |
| Module Size (mm) | 320x160 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 256x128 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 640000 | Gray Scale | 16bit |
| Lamp Type | SMD1010 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/64 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 17 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 640x480 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 512x384 | Cabinet Weight | 7.2kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
