500-800cd/m2 Small Pixel Pitch LED Screen Display 3840HZ Full Color
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | XA-I PH1.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1600.00/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Color: | Full Color |
|---|---|---|---|
| Pixel Pitch: | 1.5MM | Brightness: | 500-800cd/㎡ |
| Pixel Density: | 409600 Dot/㎡ | Contrast Ratio: | ≥5000:1 |
| Type: | LED | Lifespan (hours): | ≥100000h |
| Resolution: | 384x216 | Refresh Rate: | 3840HZ |
| LED Chip: | SMD1212 | Material: | Die-casting Aluminum |
| Highlight: | 800cd/M2 Small Pixel Pitch LED Screen,Small Pixel Pitch LED Screen 3840HZ |
||
Product Description

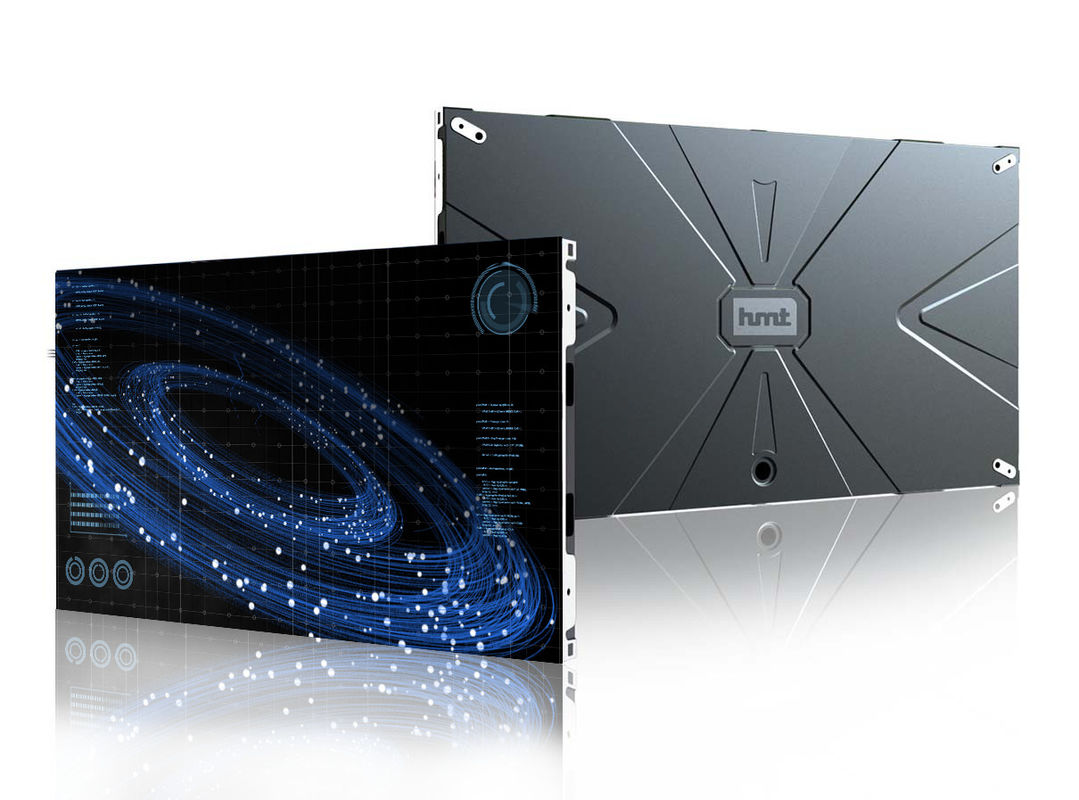

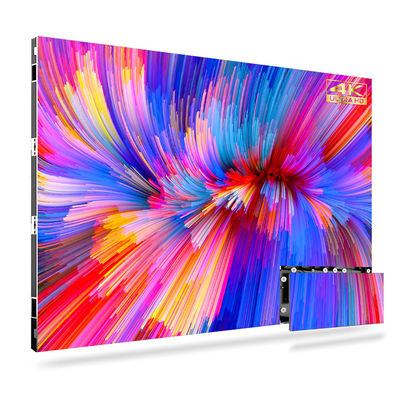

XA-I PH1.5 High Refresh Die-casting Aluminum Indoor Small Pixel Pitch LED Display Screen
Detailed product introduction document:Small Pitch XA-I Series.pdf
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6. exhibition display
7.Cultural tourism
8.Smart city
Features:
High resolution, true HD effect
The use of surface lamp bead design, the smaller the spacing, more delicate picture quality,more realistic color, good light distribution,High consistency, so that the full color display better color realistic effect.
High refresh, high brightness
Fast response speed, brightness can be automatically adjusted according to the environmentarge screen, strong vision, simple and convenient to replace the advertising content faster. Thecolor brightness attenuation has the consistency, thus quarantees the brightness and the colorconsistency to maintain well.
Broadcast-level color gamut, color temperature intelligent adjustable
Using RBG three-color imaging technology to achieve broadcast leve standards, after single-point brightness, chroma correction
Great perspective embracing experienceSupports horizontal and vertical 160 viewing, high consistency, no color cast, high contrast
It can realize encircling radian splicing experience
Golden Ratio, Atmospheric Fashion
Small pitch LED box ratio 169.9, is the human eye pupil ratio golden ratio, enjoy visual, atmospheric fashion.
Product Details
Models: XA-I PH1.5
| Pixel Pitch (mm) | 1.5625 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 300x168.75x3 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 192x108 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 409600 | Gray Scale | 16bit |
| Lamp Type | SMD1212 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/54 Scan | Eliminate Shadows | Equipment |
| PCB Thickness (mm) | 1.6 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 600x337.5 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 384x216 | Cabinet Weight | 7.8kg |

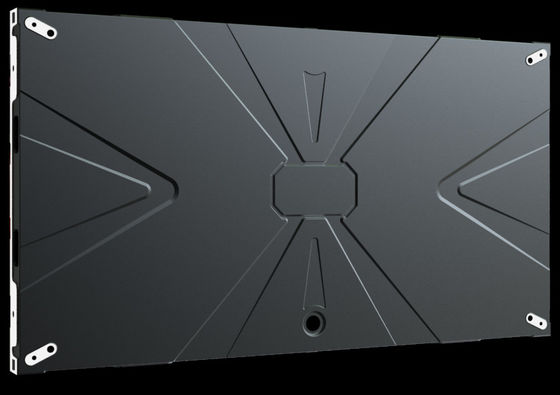

| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
