500mm*1000mm PH5-10 Outdoor wide viewing angle Transparent LED Screen Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $870/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Refresh Rate:: | 3840Hz | Application:: | Outdoor |
|---|---|---|---|
| Lifespan: | ≥100000H | Cabinet Size: | 1000X500X80 |
| Brightness:: | ≥4500 Cd/㎡ | Weight: | 12kg/㎡ |
Product Description

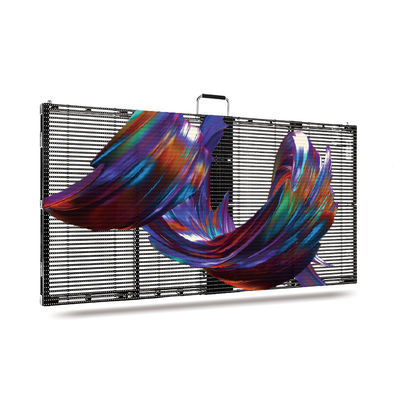

500mm*1000mm PH5-10 Outdoor wide viewing angle Transparent LED Screen Display
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf

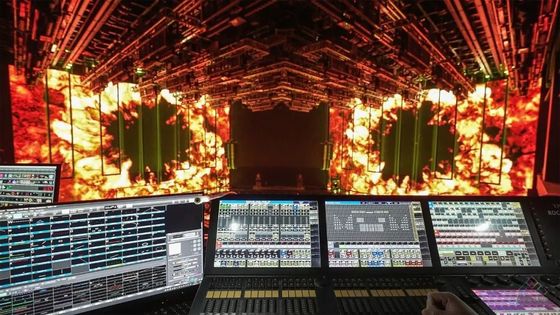

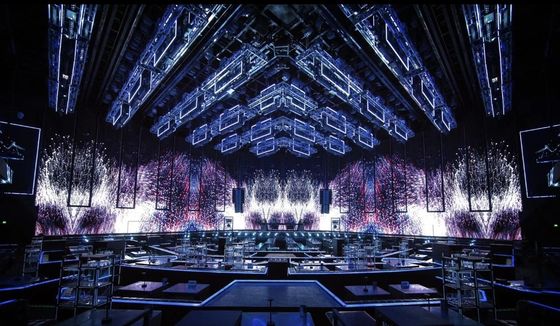

Applicable scenarios :
1. commercial real estate
2. entertainment culture
3. stage performance and Architecture Art
4. radio and television studios
5. commercial exhibition hall
Features:
1. high permeability , IP65 dustproof and waterproof
2. IP65 dustproof and waterproof
3. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
4. High refresh rate and gray scale ensures the picture quality remains seamless.
5. Outdoor fixed installation, resistant to various working conditions
6. Ultra high definition video effect with see-through high transparent rate
Product Details
Models: TWC-F
|
Outdoor Transparent LED screen (HMT-HTR series) |
||||
|
models |
HMT-HTR3-7 |
HMT-HTR5-10 |
HMT-HTR10-10 |
HMT-HTR15-15 |
|
Pixel Pitch (mm) |
3.91 - 7.82 |
5.2 -10.4 |
10.4 -10.4 |
15.6 - 15.6 |
|
transparency |
56% |
58% |
60% |
75% |
|
Pixel Density (dot/㎡) |
32768 |
18432 |
9216 |
4096 |
|
Cabinet Pixel |
256X128 |
192X96 |
96X96 |
64X64 |
|
Refresh rate (Hz) |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Drive chip |
ICN2153PWM (same level) |
MY9866 (same level) |
MY9866 (same level) |
ICN2038S (same level) |
|
Scan mode |
1/8 Scan |
1/4 Scan |
1/2 Scan |
static |
|
LED lamp type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
|
Brightness (cd/㎡) |
≥4500 |
≥4500 |
≥4500 |
≥4500 |
|
Lifespan(H) |
≥ 100,000 hours |
|||
|
Pixel composition |
RGB three-in-one |
|||
|
Grey scale |
14bit |
|||
|
Maximum power (W/㎡) |
600-800W |
|||
|
Conventional power (W/㎡) |
400-600W |
|||
|
LED control system |
Nova / Colorlight System / Magnimade System / Mooncell System |
|||
|
Signal connection |
WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system |
|||
|
Protection Grade |
IP65 |
|||
|
Eliminate Shadows |
equipment |
|||
|
Input voltage |
AC100～240V 50/60HZ |
|||
|
Module input voltage |
DC4.7～5V±0.2V |
|||
|
Cabinet size (mm) |
1000X500X80 |
|||
|
Weight (Kg/㎡) |
12kg/㎡ |
|||
|
Cabinet material |
Aluminum alloy |
|||
|
Maintenance |
power/Control System : rear maintenance module:front maintenance |
|||
|
Working temperature and humidity |
Temperature: -10 ~ 40℃ humidity: -10% ~ 90% |
|||
|
Installation |
hoisting/fixed installation/Build on standing structure |
|||
Application:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
