V-PH2.5 Indoor LED Display Screen Video Wall High Brightness LED Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | V-PH2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $500.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Panel Size: | 320mmx160mm | Pixel Pitch: | 2.5mm |
|---|---|---|---|
| Brightness: | 500-800 Cd/㎡ | Pixel Density: | 160000 Dot/㎡ |
| Lifespan (hours): | ≥100000H | Resolution: | 128x64 |
| Refresh Rate: | 1920HZ/3840HZ | Weight: | 30kg/㎡ |
| Module Size: | 320mmx160mm | LED Chip: | SMD2121 |
| Highlight: | HMT-V-P2.5 Indoor LED Display Screen,Indoor LED Display Screen High Brightness,Highmight Indoor LED Video Wall |
||
Product Description

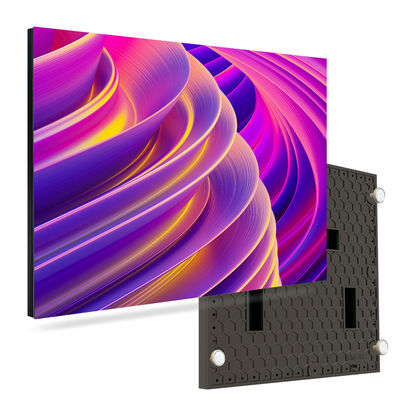

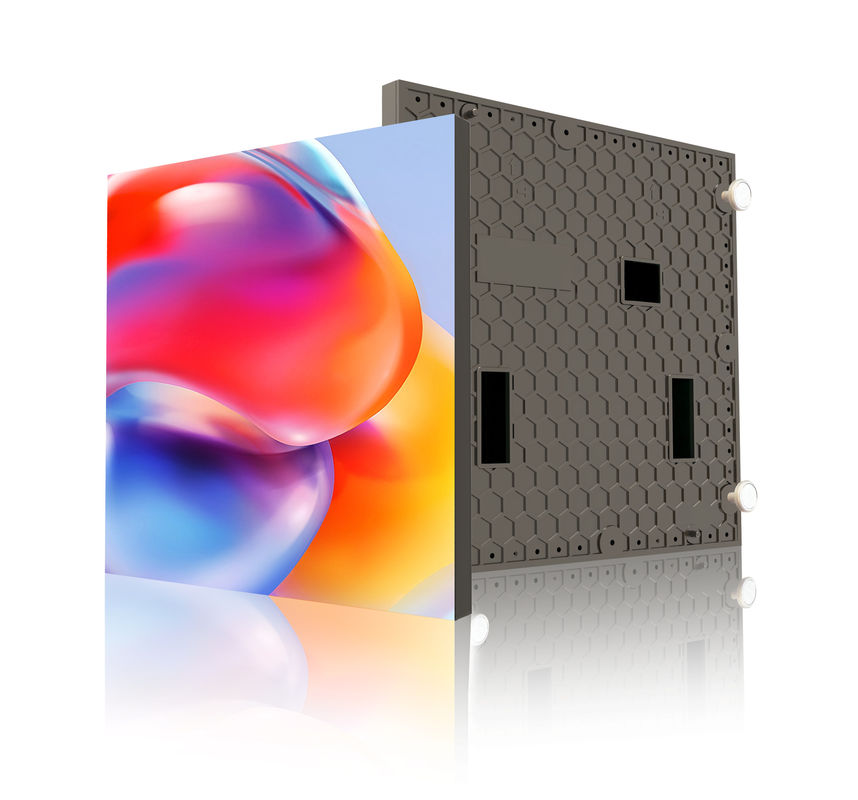

V-PH2.5 320mmx160mm Indoor Full Color Led Video Wall Screen High Brightness LED display screen
Detailed product introduction document:PH2.5 (V series module).pdf
Applicable scenarios:
1.Movie and drama screen,
2.Party screen,
3.Large stage screen,
4.Large exhibition hall
5.Entertainment bar
Features:
1. high refresh and high gray scale
2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;
3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;
4. Self-made kit mold, with good flatness, no deformation, strong oxidation resistance, and more stable use;
5. More flexible installation and more convenient maintenance.
6. Large screen splicing, superior display performance
Product Details
Models: V-PH2.5
| Pixel Pitch (mm) | 2.5 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 320x160 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 128x64 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 160000 | Gray Scale | 16bit |
| Lamp Type | SMD1515/SMD2121 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/32Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 13 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 640x480 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 416x312 | Cabinet Weight | 30kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
