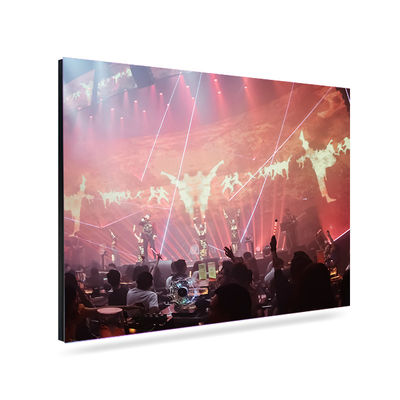

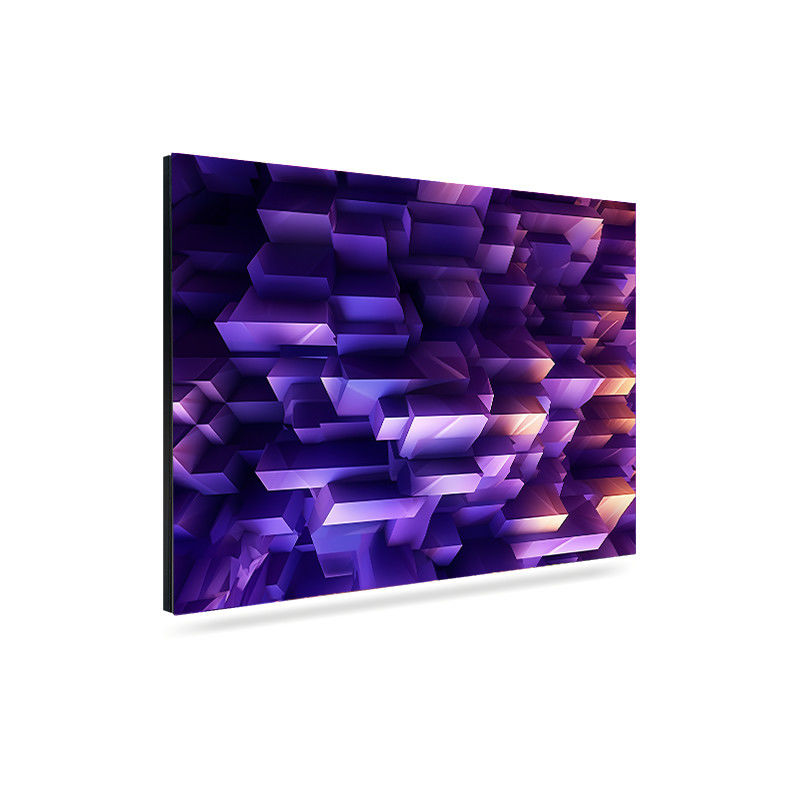

High Brightness Indoor LED Display Screen Video Wall 192mmx192mm For Advertising
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | P PH3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $390.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 192mmx192mm |
| Supplier Type: | Original Manufacturer, ODM, Agency, Retailer, Other, OEM | Media Available: | Datasheet, Photo |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies | Pixel Pitch: | 3mm |
| Specification: | Video Wall | Brightness: | 500-800 Cd/㎡ |
| Pixel Density: | 111111 Dot/㎡ | Lifespan (hours): | ≥100000H |
| Resolution: | 64x64 | Refresh Rate: | 1920HZ/3840HZ |
| Weight: | 30kg/㎡ | ||
| Highlight: | High Brightness Indoor LED Display Screen,Indoor LED Display Screen 192mmx192mm,igh Brightness Indoor LED Advertising Screens |
||
Product Description
P PH3 192mmx192mm Indoor Full Color Led Video Wall Screen High Brightness LED display screen
Detailed product introduction document:PH3 (P series module).pdf
Applicable scenarios:
1. command center
2. energy control room
3.Live broadcast on TV,
4.Command Center,
5.The bar,
6.Auditorium,
7.airport
8.Restaurant
Features:
1. high refresh and high gray scale
2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;
3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;
4. Good color reproduction effect and energy saving;
5. Good moving image effect
6. More flexible installation and more convenient maintenance.
Product Details
Models: P PH3
| Pixel Pitch (mm) | 3 | Refresh Rate (HZ) | 3840 |
| Module Size (mm) | 192x192 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 64x64 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 111111 | Gray Scale | 16bit |
| Lamp Type | SMD1515/SMD2121 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/32Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 13 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 640x480 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 416x312 | Cabinet Weight | 30kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
