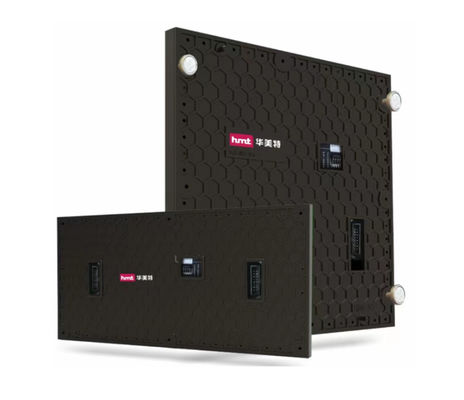

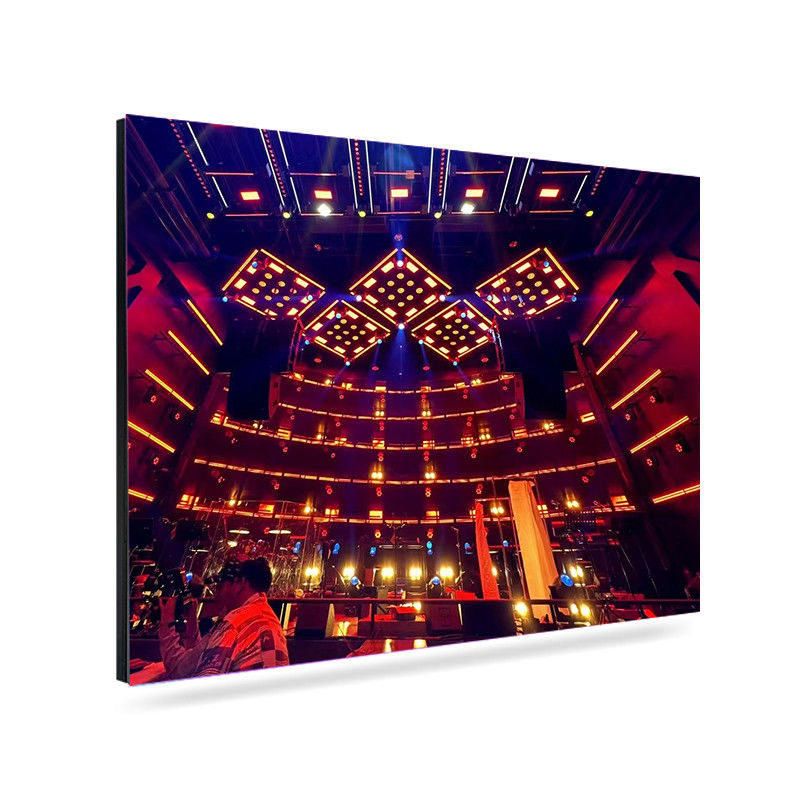

Conventional Indoor Full Color LED Screen , Light And Ultra Thin LED Display V Series
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | V series |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $220~730/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application:: | Indoor Led Screen | Lifespan (Hours):: | ≥100000H |
|---|---|---|---|
| Specification:: | Video Wall | Brightness: | 500-800 Cd/㎡ |
| Module Thickness: | 13mm | Refresh Rate: | 1920/3840HZ |
| Highlight: | Conventional Indoor Full Color LED Screen,RoHS Indoor Full Color LED Display,Light And Ultra Thin LED Display |
||
Product Description
Indoor conventional screen V series Thin and light multi occasion use
Detailed product introduction document:
Small Pitch (V Series Modules).pdf
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6. exhibition display
Features:
1. high refresh and high gray scale
2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;
3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;
4. Self-made kit mold, with good flatness, no deformation, strong oxidation resistance, and more stable use;
5. More flexible installation and more convenient maintenance.
Product Details

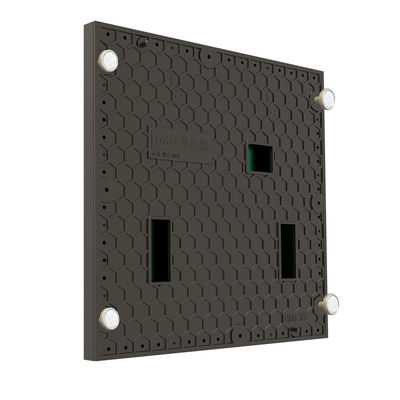

Models: V
| Indoor Conventional Screen (V series) | |||||
| Models | PH 2 | PH 2.5 | PH 3 | PH 4 | PH5 |
| Pixel Pitch (mm) | 2 | 2.5 | 3 | 4 | 5 |
| Module Size (mm) | 320x160 | 320x160 | 192x192 | 256X256/256x128 | 320x160 |
| Module pixel | 160x80 | 128x64 | 64x64 | 64x64/64x32 | 64x32 |
| Pixel Density (dot/㎡) | 250000 | 160000 | 111111 | 62500 | 40000 |
| Lamp Type | SMD1515 | SMD1515/SMD2121 | SMD1515/SMD2121 | SMD2121 | SMD2121 |
| Brightness (cd/㎡) | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/40th Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/16 Scan |
| Module thickness (mm) | 13 | 13 | 13 | 13 | 13 |
| Lifespan (Hours) | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Working temperature and humidity | Temperature-10 ~ 40℃ and humidity-10% ~ 90% | ||||
| Weight (kg/㎡) | 30kg/㎡ | ||||
| Cabinet specification | customized | ||||
| Installation | Magnetic installation / Cabinet installation | ||||
Application:
