P PH2 320mmx160mm Indoor LED Full Color Display / Advertising LED Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | HMT-P-P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $730.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | LED | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 320mmx160mm | Pixel Pitch: | 2mm |
| Brightness: | 500-800 Cd/㎡ | Pixel Density: | 250000 Dot/㎡ |
| Lifespan (hours): | ≥100000H | Resolution: | 160x80 |
| Refresh Rate: | 1920HZ/3840HZ | Application: | Indoor |
| Scan Mode: | 1/40 Scan | LED Chip: | SMD1515 |
| Highlight: | 320mmx160mm Indoor LED Full Color Display,Indoor Advertising LED Video Wall,P2 Advertising LED Video Wall |
||
Product Description

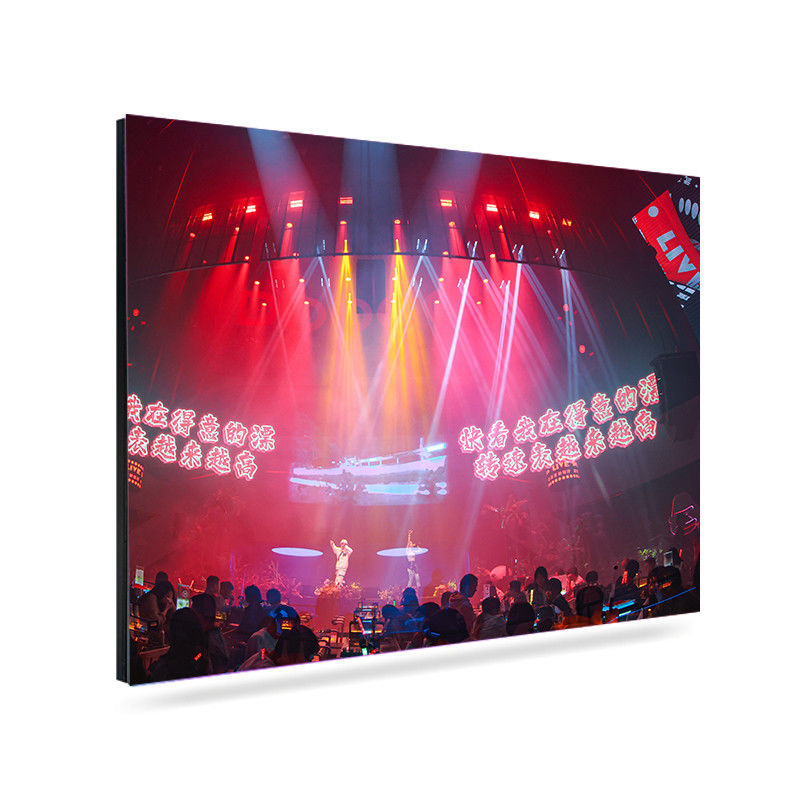

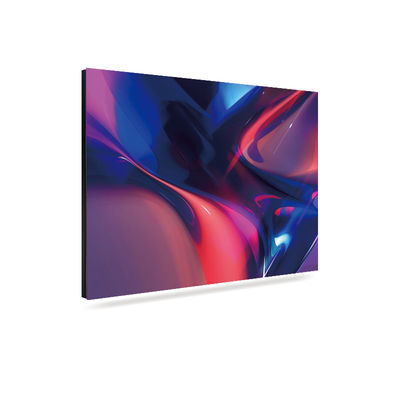

PH2 320mmx160mm Indoor Full Color Led Video Wall Screen High Brightness LED display screen
Detailed product introduction document:PH2 (P Series Module).pdf
Applicable scenarios:
1.Car 4S shop scene
2.Airports,
3.Restaurants,
4.Commercial Center Scene
5.Golden Ratio, Atmospheric Fashion
Features:
1. high refresh and high gray scale
2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;
3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;
4.More flexible installation and more convenient maintenance.
5.High refresh, high brightness
6.Broadcast-level color gamut, color temperature intelligent adjustable
Product Details
Models: P PH2
| Pixel Pitch (mm) | 2 | Refresh Rate (HZ) | 3840 |
| Module Size (mm) | 320x160 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 160x80 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 250000 | Gray Scale | 16bit |
| Lamp Type | SMD1515 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/40Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 13 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 640x480 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 416x312 | Cabinet Weight | 30kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
