IP65 Dustproof Large Outdoor LED Display Screens 500mm*1000mm PH10-10
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F PH10-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $800.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Pixel Pitch: | 10.4mm-10.4mm |
|---|---|---|---|
| Type: | LED | Specification: | Video Wall |
| Brightness: | ≥4500 Cd/㎡ | Pixel Density: | 9216 Dot/㎡ |
| Color Depth: | 14bit | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Resolution: | 96X96 |
| Refresh Rate: | 3840HZ | Scan Mode: | 1/2scan |
| Highlight: | IP65 Large Outdoor LED Display Screens,Dustproof Large Outdoor LED Display Screens |
||
Product Description

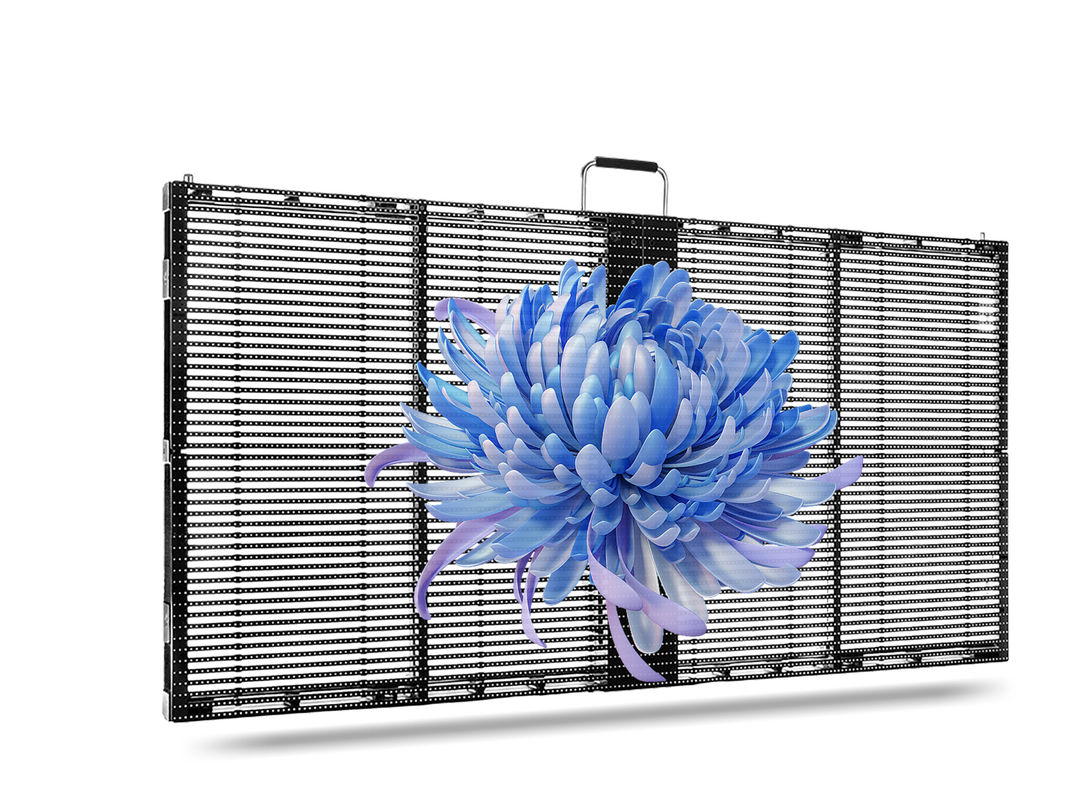

500mm*1000mm PH10-10 Outdoor LED Transparent Display Screen video wall
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios:
1. stage performance
2. glass curtain wall
3. radio and television studios
4. entertainment culture
5. exhibition hall etc.
Features:
1. Transparent and invisible, see the shadow but not the screen
2. IP65 dustproof and waterproof
3. Invisible display panel
4. high contrast and wide viewing angle
5. Stunning image display
6. High brightness and high contrast
Product Details
Models: TWC-F PH10-10
| Pixel Pitch (mm) | 10.4-10.4 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 9216 | Transparency | 60% |
| Cabinet Pixel | 96X96 | Protection Grade | IP65 |
| Refresh Rate (HZ) | 3840Hz | Eliminate Shadows | Equipment |
| Driver Chip | MY9866(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/2 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2727 | Cabinet Size (mm) | 1000X500X80 |
| Brightness (cd/㎡) | ≥4500 | Weight (kg/㎡) | 12kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
