High Brightness Transparent LED Screen Display IP65 LED Wall Outdoor Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F PH5-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | ≥1 square meters |
|---|---|
| Price: | $800.00/square meters ≥1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | High Brightness Transparent LED Screen Display | Pixel Pitch: | 5.2mm-10.4mm |
|---|---|---|---|
| Application: | Outdoor | Panel Size: | 500mm*1000mm |
| Type: | LED | Color: | Full Color |
| Media Available: | Datasheet, Photo | Specification: | Video Wall |
| Brightness: | ≥4500 Cd/㎡ | Pixel Density: | 18432 Dot/㎡ |
| Lifespan (hours): | ≥100000H | Resolution: | 192X96 |
| Refresh Rate: | 3840HZ | ||
| Highlight: | High Brightness Transparent LED Screen Display,Transparent LED Screen Display IP65,IP65 LED Wall Outdoor Display |
||
Product Description

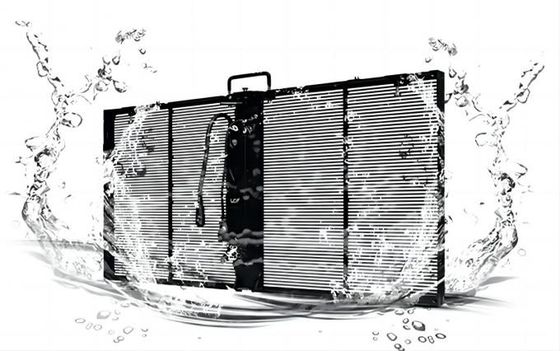

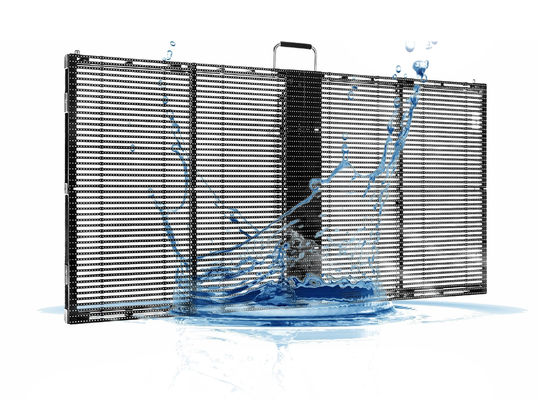

500mm*1000mm HT-P5-10 Outdoor Waterproof Full Color LED Transparent Display Screen
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf

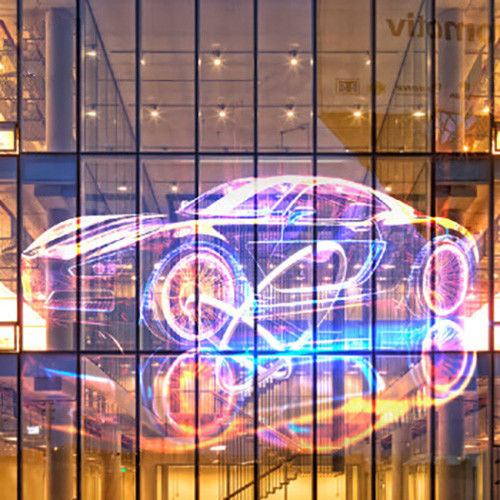

Applicable scenarios:
1. shopping mall
2. glass curtain wall
3. Bars/Night Clubs/KTV
4. airport and subway holding area
5. exhibition hall etc.
Features:
1. high permeability
2. IP65 dustproof and waterproof
3. good heat dissipation
4. ultra high brightness
5. super thin and light
6. high refresh and high gray scale
Product Details
Models: TWC-F PH5-10
| Pixel Pitch (mm) | 5.2-10.4 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 18432 | Transparency | 58% |
| Cabinet Pixel | 192X96 | Protection Grade | IP65 |
| Refresh Rate (HZ) | 3840Hz | Eliminate Shadows | Equipment |
| Driver Chip | MY9866(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/4 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1921 | Cabinet Size (mm) | 1000X500X80 |
| Brightness (cd/㎡) | ≥4500 | Weight (kg/㎡) | 12kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
Installation:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
