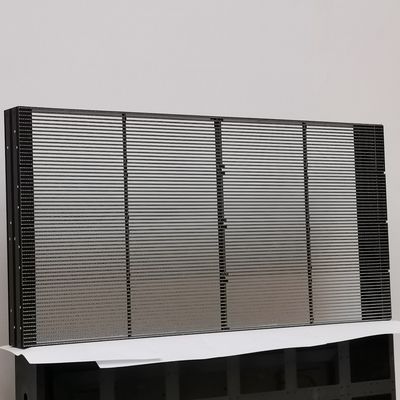

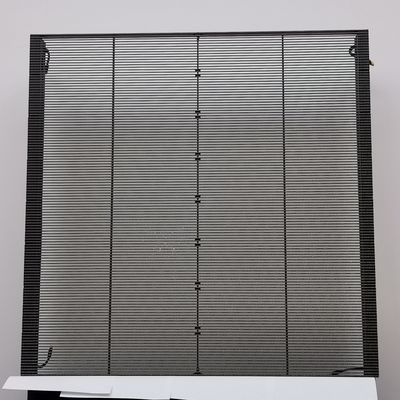

1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH5-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $258.00/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Type: | LED | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 5.2-10.4 | Specification: | Video Wall |
| Brightness: | ≥800 Cd/㎡ | Pixel Density: | 18432 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP30 |
| Resolution: | 192X96 | Refresh Rate: | 1920Hz |
| LED Chip: | SMD2121 | Scan Mode: | 1/4 Scan |
| Material: | Aluminum Alloy | Feature: | Thin And Bright |
| Highlight: | 1920Hz Transparent LED Display Board,Transparent LED Display Board P5-10 |
||
Product Description
1000*1000 Transparent LED Display Screen high brightness PH5-10 Thin and Bright
Detailed product introduction document: Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Information release
It can publish a variety of information including text, images and videos, and has encryption and content review mechanisms to ensure the legal compliance of published content. The user-friendly program management function can automatically play content according to the pre-edited time and order.
4. City, party and government propaganda
It can cooperate with festivals and important activities to broadcast city propaganda and party and government propaganda content, enrich publicity methods, enhance the image of the city, and expand the influence of party and government work.
5. exhibition hall , Retail Shop Glass Windows
6. stage performance
7. Indoor Fence & Partition
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Seamless large area splicing
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-B
| Indoor transparent screen (TRA-B series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6 - 5.2 | 3.91 -7.82 | 5.2 -10.4 | 10.4-10.4 | 15.6-15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
| Pixel Density (dot/㎡) | 73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X192 | 256X128 | 192X96 | 96X96 | 64X64 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
|
Brightness (cd/㎡) |
≥800 | ||||
| Lifespan | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| Grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| Protection grade | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X1000X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Aluminium alloy | ||||
| Maintenance | Power/Control System : rear maintenance Module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
Application:

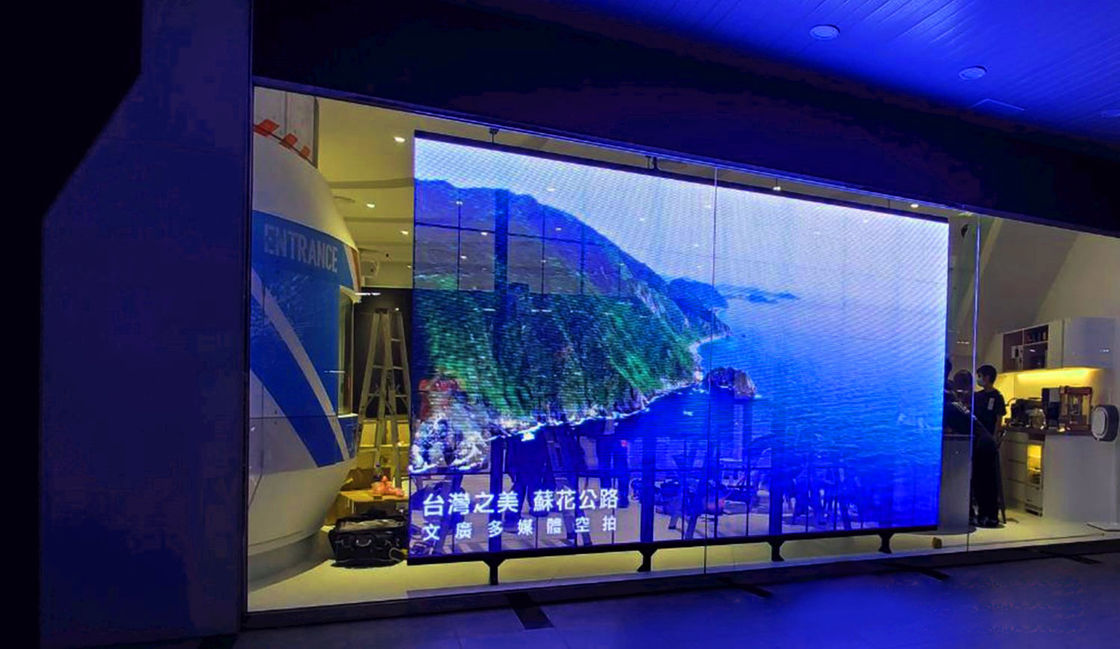

Cases show:
Package and Delivery:
