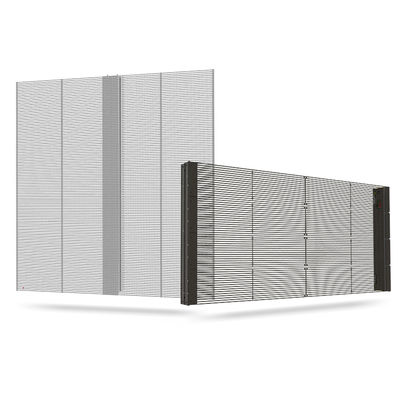

1000mmx1000mm Transparent Video Wall PH10-10 for 3D advertising panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B 10-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $230/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 1000mmX1000mm |
| Media Available: | Datasheet, Photo | Pixel Pitch: | 10.4-10.4 |
| Specification: | Video Wall | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 9216 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | Resolution: | 96X96 |
| Material: | Aluminum Alloy | LED Chip: | SMD2727 |
| Scan Mode: | 1/4 Scan | Feature: | Thin And Bright |
| Highlight: | 1000mmx1000mm Transparent Video Wall,Transparent Video Wall P10 |
||
Product Description

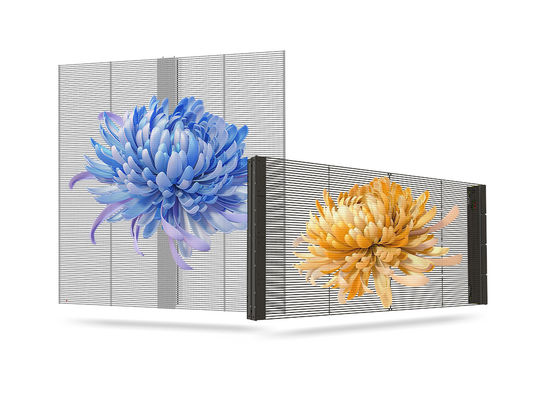

1000mmx1000mm Transparent Video Wall PH10-10 for 3D advertising panel
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. advertising publish
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. stage performance
7. Indoor Fence & Partition
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Seamless large area splicing
5. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65;
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-B
| Indoor transparent screen (TRA-B series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6 - 5.2 | 3.91 -7.82 | 5.2 -10.4 | 10.4-10.4 | 15.6-15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
| Pixel Density (dot/㎡) | 73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X192 | 256X128 | 192X96 | 96X96 | 64X64 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
|
Brightness (cd/㎡) |
≥800 | ||||
| Lifespan | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| Grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| Protection grade | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X1000X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Aluminium alloy | ||||
| Maintenance | Power/Control System : rear maintenance Module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||

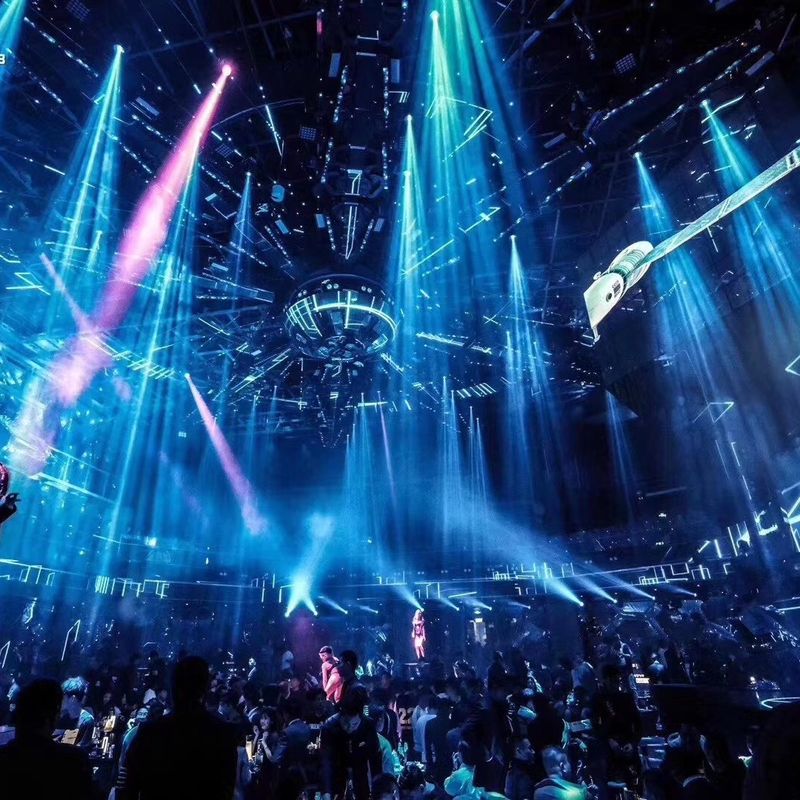

Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
