TRA-B PH15-15 Indoor Small Transparent LED Screen 500mmX1000mm Fixed Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH15-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $230/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 500mmX1000mm |
| Pixel Pitch: | 15.6-15.6 | Specification: | Video Wall |
| Brightness: | ≥800 Cd/㎡ | Pixel Density: | 4096 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP30 |
| Resolution: | 64X32 | Material: | Die-casting Aluminum |
| Installation: | Fixed Installation | LED Chip: | SMD2727 |
| Highlight: | P15 Small Transparent Led Screen,Small Transparent Led Screen 500mmX1000mm |
||
Product Description
PH15-15 Indoor Small Transparent LED Screen 500mmX1000mm Fixed Installation
Detailed product introduction documen:Indoor transparent screen TRA-B series.pdf
Introduction:

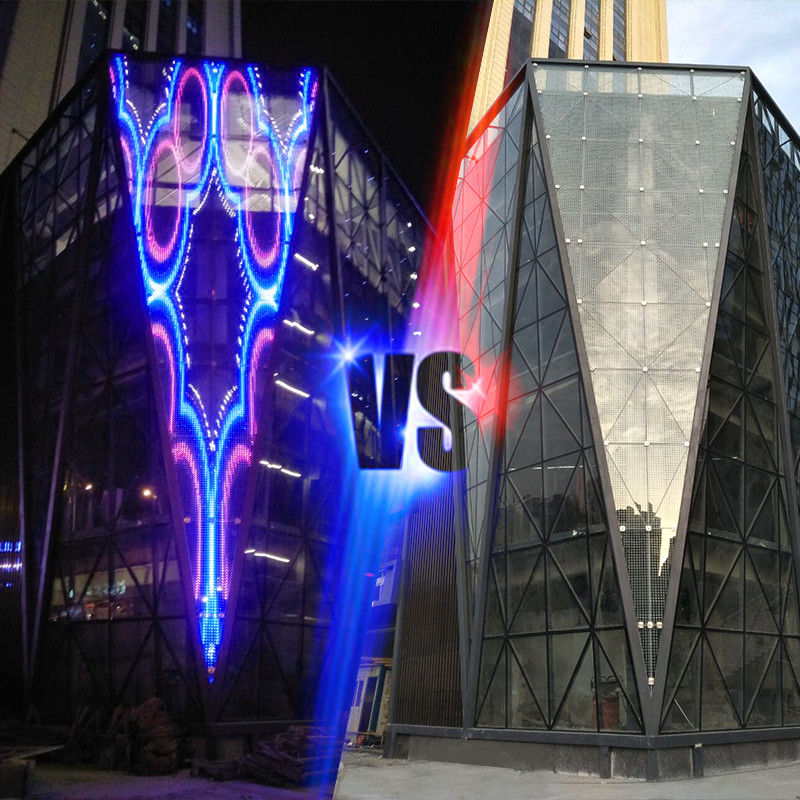

Transparent screen is a new type of display technology that allows users to see the background through the screen while displaying content. This technology mainly relies on LED display technology and is widely used in advertising, exhibitions, interior decoration, automobiles and retail. The core feature of transparent screen is that it can present dynamic content while retaining visibility behind the screen, bringing unique visual effects.

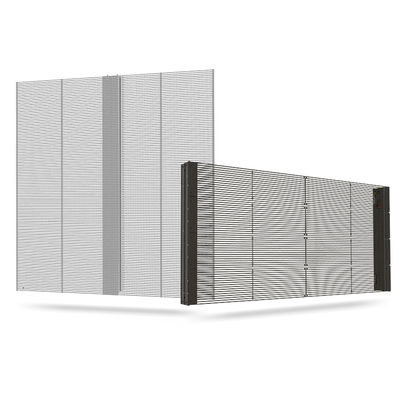

Products Detail:
| Indoor transparent screen (TRA-B series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6- 5.2 | 3.91 - 7.82 | 5.2 - 10.4 | 10.4 - 10.4 | 15.6 - 15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
|
Cabinet Density (dot/㎡) |
73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X96 | 256X64 | 192X48 | 96X48 | 64X32 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
| Brightness (cd/㎡) | ≥800 | ||||
| Lifespan(H) | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| grey scale | 16bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| protection grades | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||

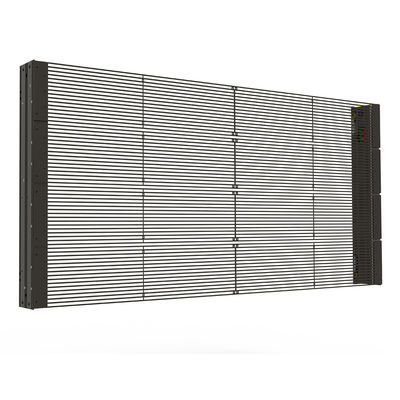

| Cabinet size (mm) | 1000X500X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Die-casting aluminum | ||||
| Maintenance | power/Control System : rear maintenance module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
|
Cabinet Size
|
Material
|
Color
|
Weight
|
Refresh Rate
|
|
500mm*1000mm
|
Aluminum
|
Full Color
|
7.5kg/㎡
|
1920HZ
|
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
