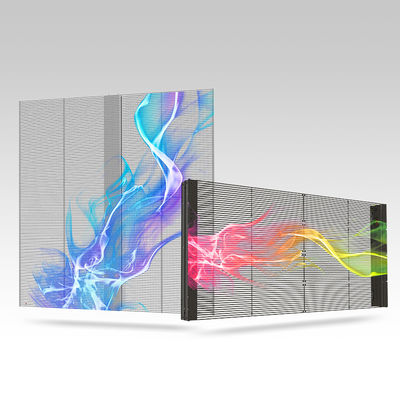

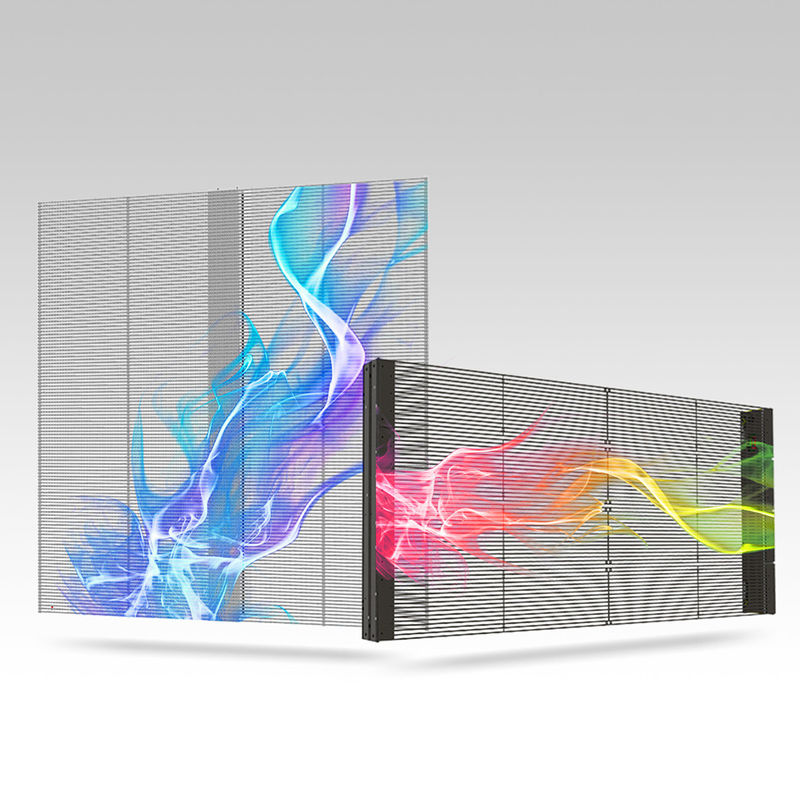

TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $870/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Refresh Rate:: | 3840Hz | Application:: | Outdoor |
|---|---|---|---|
| Lifespan: | ≥100000H | Cabinet Size: | 1000X500X80 |
| Brightness:: | ≥4500 Cd/㎡ | Weight: | 12kg/㎡ |
| Highlight: | Outdoor 3D Transparent Digital Display,Transparent Digital Display Convenient Installation,Highmight Transparent LED Screen Display |
||
Product Description
TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display easy to Install
Detailed product introduction document:Indoor transparent screen TRA-M series.pdf
Applicable scenarios:
1. commercial real estate
2. entertainment culture
3. stage performance and Architecture Art
4. radio and television studios
5. commercial exhibition hall
Features:
1. Unique encapsulation and potting technology: sealing and potting technology, which not only protects the lamp beads, but also plays a waterproof effect, and the waterproof level is as high as IP65 protection level;
2. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
3. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install.
Product Details
Models: TRA-M
|
Outdoor Transparent LED screen (HMT-HTR series) |
||||
|
models |
HMT-HTR3-7 |
HMT-HTR5-10 |
HMT-HTR10-10 |
HMT-HTR15-15 |
|
Pixel Pitch (mm) |
3.91 - 7.82 |
5.2 -10.4 |
10.4 -10.4 |
15.6 - 15.6 |
|
transparency |
56% |
58% |
60% |
75% |
|
Pixel Density (dot/㎡) |
32768 |
18432 |
9216 |
4096 |
|
Cabinet Pixel |
256X128 |
192X96 |
96X96 |
64X64 |
|
Refresh rate (Hz) |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Drive chip |
ICN2153PWM (same level) |
MY9866 (same level) |
MY9866 (same level) |
ICN2038S (same level) |
|
Scan mode |
1/8 Scan |
1/4 Scan |
1/2 Scan |
static |
|
LED lamp type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
|
Brightness (cd/㎡) |
≥4500 |
≥4500 |
≥4500 |
≥4500 |
|
Lifespan(H) |
≥ 100,000 hours |
|||
|
Pixel composition |
RGB three-in-one |
|||
|
Grey scale |
14bit |
|||
|
Maximum power (W/㎡) |
600-800W |
|||
|
Conventional power (W/㎡) |
400-600W |
|||
|
LED control system |
Nova / Colorlight System / Magnimade System / Mooncell System |
|||
|
Signal connection |
WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system |
|||
|
Protection Grade |
IP65 |
|||
|
Eliminate Shadows |
equipment |
|||
|
Input voltage |
AC100～240V 50/60HZ |
|||
|
Module input voltage |
DC4.7～5V±0.2V |
|||
|

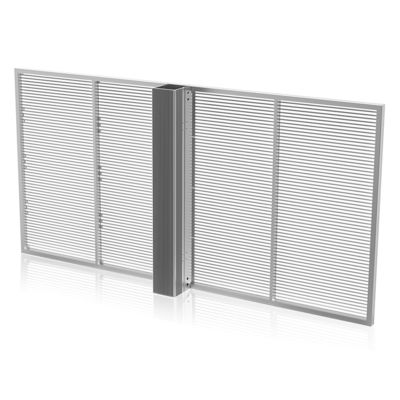

Cabinet size (mm) |
1000X500X80 |
|||
|
Weight (Kg/㎡) |
12kg/㎡ |
|||
|
Cabinet material |
Aluminum alloy |
|||
|
Maintenance |
power/Control System : rear maintenance module:front maintenance |
|||
|
Working temperature and humidity |
Temperature: -10 ~ 40℃ humidity: -10% ~ 90% |
|||
|
Installation |
hoisting/fixed installation/Build on standing structure |
|||
Application:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
