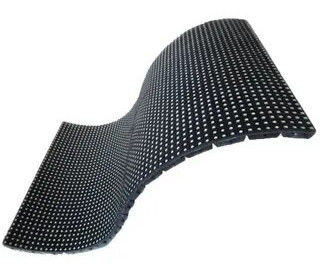

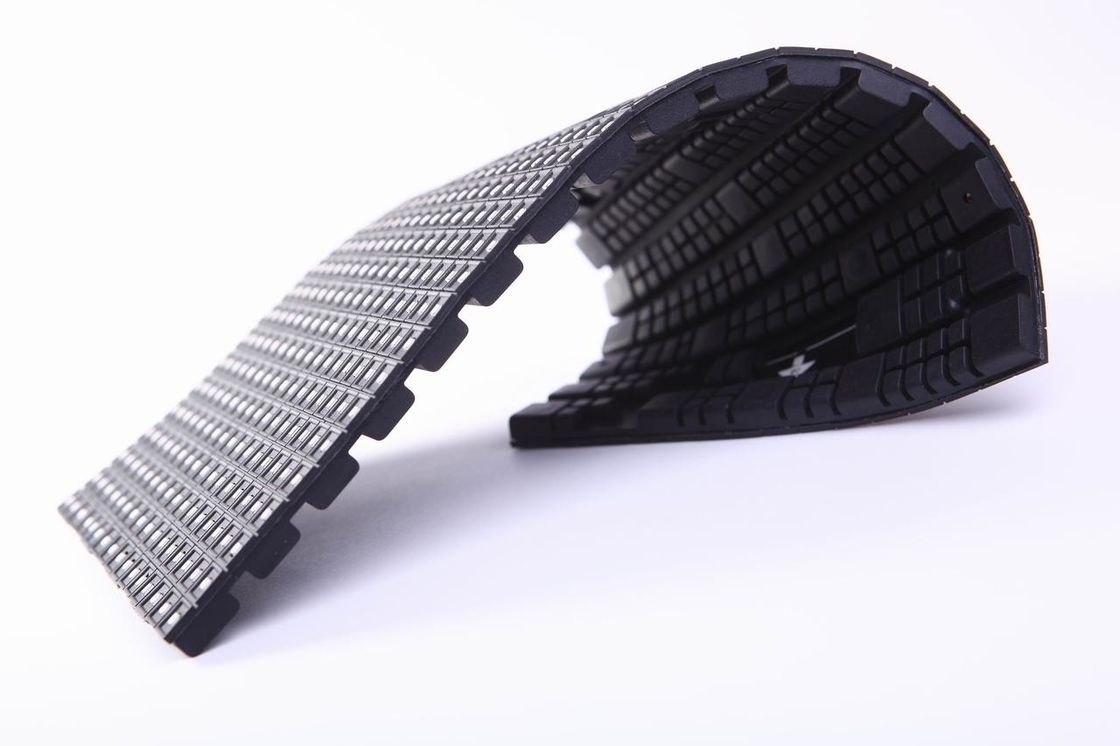

Large Flexible LED Screen Display High Brightness Curved Video Wall Displays
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | HMT-SA-P3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $469/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Large Flexible LED Screen Display | Color: | Full Color |
|---|---|---|---|
| IP Grade: | IP65 | Lifespan: | 100,000 Hours |
| Power Consumption: | 400-600W | Brightness: | 500-800 Cd/㎡ |
| Refresh Rate: | 1920Hz | Screen Size: | Customized |
| Warranty: | 2 Years | Gray Scale: | 14bit |
| Working Temperature: | -10～40℃ | Module Size: | 320*160 |
| Highlight: | Flexible LED Screen Display High Brightness,Large Flexible LED Screen Display,High Brightness Curved Video Wall Displays |
||
Product Description
Indoor Outdoor SR-A energy efficient,high brightness high power conversion efficiency flexible led screen
Detailed product introduction document:PH1.25-PH2 Indoor Soft Module SR-A Series.pdf

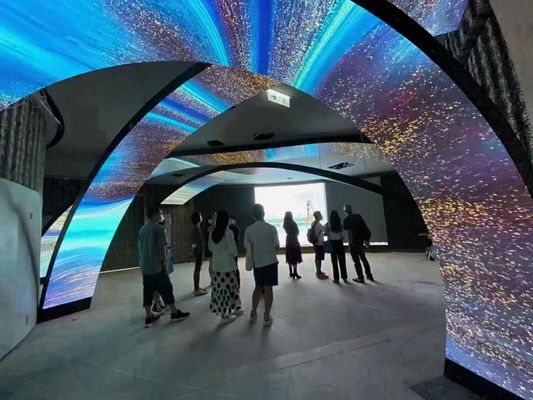

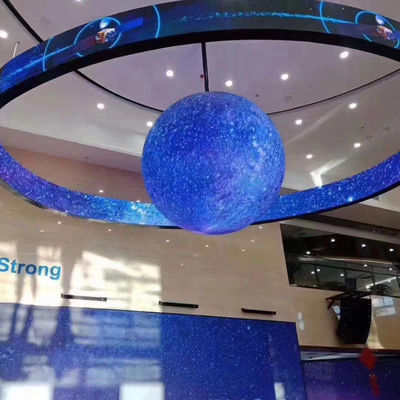

Applicable scenarios:
1. commercial real estate
2. entertainment culture
3. stage performance
4. radio and television studios
5. commercial exhibition hall
Features:
1. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
2. High refresh rate and gray scale ensures the picture quality remains seamless.
3. Outdoor fixed installation, resistant to various working conditions
4. It delivers an image which is super subtle and without getting tired after a longtime watching
5. Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
Product Details
Models: SR-A
| LED Indoor Soft Module SR-A Series (PH1.25-PH2)) | ||||
| Module model (mm) | SR-A 1.25 | SR-A 1.5 | SR-A 1.8 | SR-A 2 |
| Module point spacing (mm) | 1.25 | 1.538 | 1.8605 | 2 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Module pixel | 256x128 | 208x104 | 172x86 | 160x80 |
| Density pixels (dot/㎡) | 640000 | 422500 | 289444 | 250000 |
| Lamp bead model | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Brightness (cd/㎡) | ≤800 | ≤800 | ≤800 | ≤800 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Scanning mode | 1/64sweep | 1/52sweep | 1/43sweep | 1/40sweep |
| Module weight (kg) | 16.5 | 16.5 | 16.5 | 16.5 |
| Module thickness (mm) | 10 | 10 | 10 | 10 |
| Service life | ≥100,000 hours | |||
| Pixel composition | RGB 3-in-1 | |||
| Grayscale | 14bit | |||
| Maximum power (W/㎡) | 1000-1200W | |||
| Average power (W/㎡) | 400-600W | |||
| Eliminate ghosting | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Environment | Temperature -10～40℃ Humidity 10％-90％ | |||
| Installation | Magnetic suction/box installation | |||
