Advertising Splicing Flexible LED Screen Wall Customized Curved LED Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | SR-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $350~1486/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Flexible LED Screen Wall | Brightness: | 500-800 Cd/㎡ |
|---|---|---|---|
| Color: | Full Color | Gray Scale: | 14bit |
| Input Voltage: | AC100～240V 50/60HZ | Lifespan: | 100,000 Hours |
| Power Consumption: | 400-600W | Refresh Rate: | 1920Hz |
| Screen Size: | Customized | Warranty: | 2 Years |
| Working Temperature: | -10～40℃ | Module Size: | 320*160 |
| Highlight: | Advertising Flexible LED Screen Wall,Splicing Flexible LED Screen Wall,Customized Curved LED Video Wall |
||
Product Description

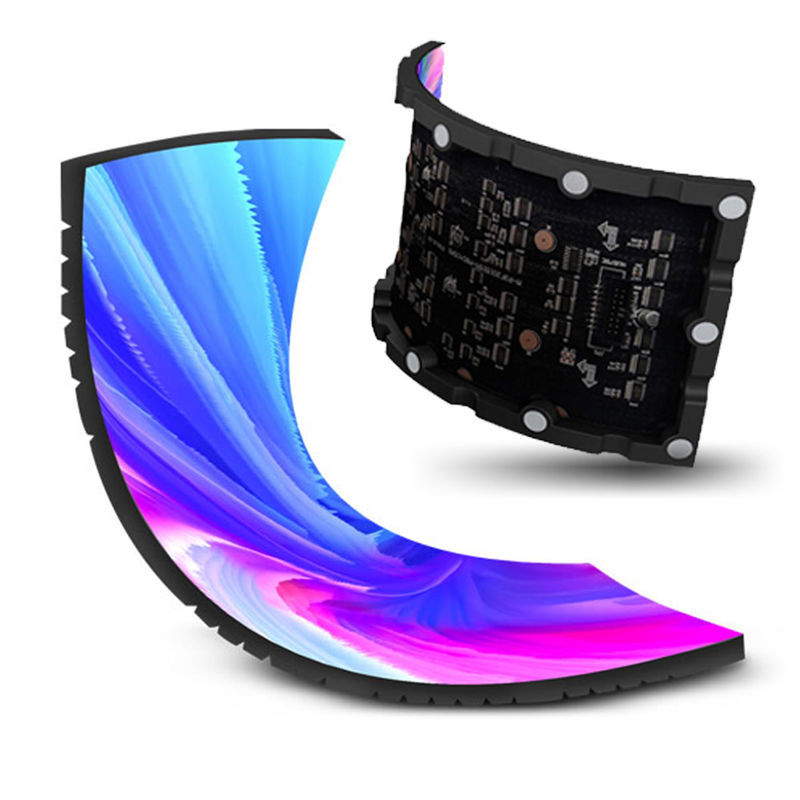

Indoor Outdoor SR-A series advertising splicing full color video wall flexible led screen
Detailed product introduction document:PH1.25-PH2 Indoor Soft Module SR-A Series.pdf
Applicable scenarios:
1. commercial real estate
2. entertainment culture
3. stage performance
4. radio and television studios
5. commercial exhibition hall
Features:
1. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
2. High refresh rate and gray scale ensures the picture quality remains seamless.
3. Outdoor fixed installation, resistant to various working conditions
Product Details
Models: SR-A
| LED Indoor Soft Module SR-A Series (PH1.25-PH2)) | ||||
| Module model (mm) | SR-A 1.25 | SR-A 1.5 | SR-A 1.8 | SR-A 2 |
| Module point spacing (mm) | 1.25 | 1.538 | 1.8605 | 2 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Module pixel | 256x128 | 208x104 | 172x86 | 160x80 |
| Density pixels (dot/㎡) | 640000 | 422500 | 289444 | 250000 |
| Lamp bead model | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Brightness (cd/㎡) | ≤800 | ≤800 | ≤800 | ≤800 |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Scanning mode | 1/64sweep | 1/52sweep | 1/43sweep | 1/40sweep |
| Module weight (kg) | 16.5 | 16.5 | 16.5 | 16.5 |
| Module thickness (mm) | 10 | 10 | 10 | 10 |
| Service life | ≥100,000 hours | |||
| Pixel composition | RGB 3-in-1 | |||
| Grayscale | 14bit | |||
| Maximum power (W/㎡) | 1000-1200W | |||
| Average power (W/㎡) | 400-600W | |||
| Eliminate ghosting | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Environment | Temperature -10～40℃ Humidity 10％-90％ | |||
| Installation | Magnetic suction/box installation | |||

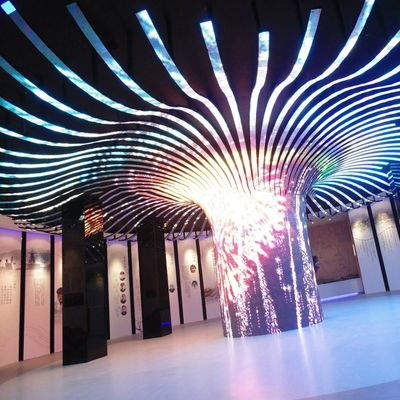

Application:
FAQ:
Q: Does it consume a lot of power?
A: LED soft modules have a high energy efficiency design, low power consumption and low operating costs.
Q: What control methods are supported?
A: It supports multiple control methods, including computer remote control and smartphone applications.
Q: How is the color performance?
A: LED soft modules have rich colors, support high grayscale levels, and have excellent display effects.
Q: What applications are suitable for?
A: It is suitable for advertising, stage, exhibition, architectural decoration and other occasions.
Q: What is the price?
A: The price varies according to specifications, size and customization requirements. Please contact us for a quote.
