Transparent LED Screen Display HT 500*1000 multi installtion way 3D Transparent Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $762~941/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Cabinet Size: | 500mm*1000mm |
|---|---|---|---|
| Refresh Rate: | 3840Hz | IP Rating: | IP65 |
| Brightness: | ≥4500 Cd/㎡ | Lifespan: | ≥100000H |
Product Description

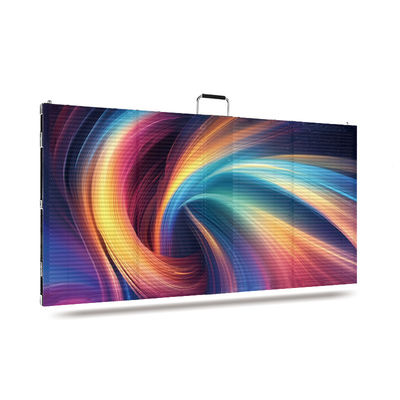

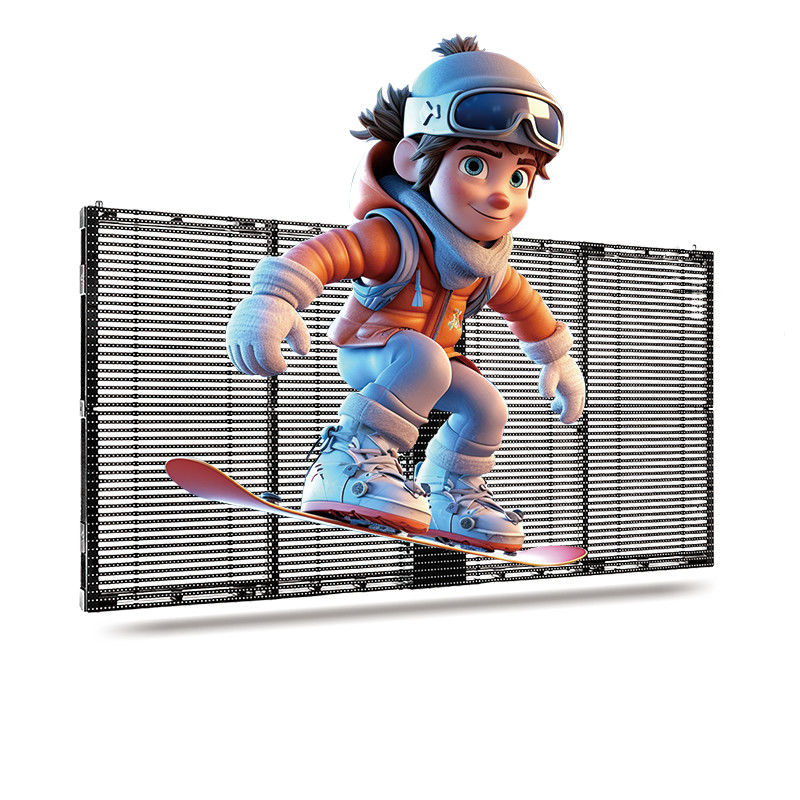

Transparent LED Screen Display 500*1000 multi installtion way 3D Transparent Video Wall
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios :
1. commercial real estate
2. entertainment culture
3. stage performance
4. radio and television studios
5. commercial exhibition hall
Features:
1. high permeability
2. IP65 dustproof and waterproof
3. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
4. High refresh rate and gray scale ensures the picture quality remains seamless.
5. Outdoor fixed installation, resistant to various working conditions
6. Ultra high definition video effect with see-through high transparent rate
Product Details
Models: TWC-F
|
Outdoor Transparent LED screen (TWC-F series) |
||||
|
models |
PH 3-7 |
PH 5-10 |
PH 10-10 |
PH 15-15 |
|
Pixel Pitch (mm) |
3.91 - 7.82 |
5.2 -10.4 |
10.4 -10.4 |
15.6 - 15.6 |
|
transparency |
56% |
58% |
60% |
75% |
|
Pixel Density (dot/㎡) |
32768 |
18432 |
9216 |
4096 |
|
Cabinet Pixel |
256X128 |
192X96 |
96X96 |
64X64 |
|
Refresh rate (Hz) |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Drive chip |
ICN2153PWM (same level) |
MY9866 (same level) |
MY9866 (same level) |
ICN2038S (same level) |
|
Scan mode |
1/8 Scan |
1/4 Scan |
1/2 Scan |
static |
|
LED lamp type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
|
Brightness (cd/㎡) |
≥4500 |
≥4500 |
≥4500 |
≥4500 |
|
Lifespan(H) |
≥ 100,000 hours |
|||
|
Pixel composition |
RGB three-in-one |
|||
|
Grey scale |
14bit |
|||
|
Maximum power (W/㎡) |
600-800W |
|||
|
Conventional power (W/㎡) |
400-600W |
|||
|
LED control system |
Nova / Colorlight System / Magnimade System / Mooncell System |
|||
|
Signal connection |
WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system |
|||
|
Protection Grade |
IP65 |
|||
|
Eliminate Shadows |
equipment |
|||
|
Input voltage |
AC100～240V 50/60HZ |
|||
|
Module input voltage |
DC4.7～5V±0.2V |
|||
|
Cabinet size (mm) |
1000X500X80 |
|||
|
Weight (Kg/㎡) |
12kg/㎡ |
|||
|
Cabinet material |
Aluminum alloy |
|||
|
Maintenance |
power/Control System : rear maintenance module:front maintenance |
|||
|
Working temperature and humidity |
Temperature: -10 ~ 40℃ humidity: -10% ~ 90% |
|||
|
Installation |
hoisting/fixed installation/Build on standing structure |
|||
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
