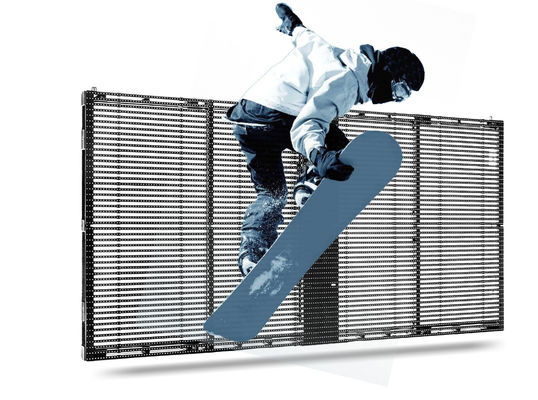

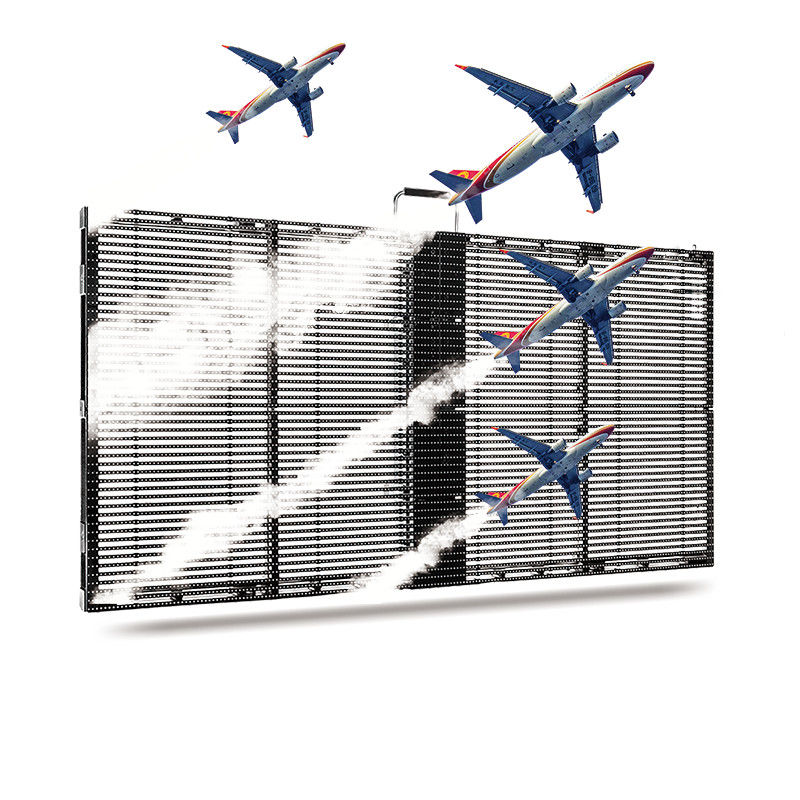

500mm*1000mm PH3-7 Outdoor Arbitrary customization LED transparent screen display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1005/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 500mmX1000mm |
| Media Available: | Photo | Pixel Pitch: | 3.91-7.82 |
| Specification: | Video Wall | Brightness: | ≥4500 Cd/㎡ |
| Pixel Density: | 32768 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | HS Code: | 8528591090 |
| Resolution: | 256X128 | Usage: | Outdoor Adverting Display |
| Refresh Rate: | 3840HZ | Material: | Die-casting Aluminum |
Product Description
500mm*1000mm PH3-7 Outdoor Arbitrary customization LED transparent screen display
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios:
1. stage performance
2. glass curtain wall
3. 4S Auto Shop
Features:
1. Transparent and invisible, see the shadow but not the screen
2. IP65 dustproof and waterproof
3. Clear picture without flicker and distortion.No light leakage trouble
4. Providing excellent customer service and technical support
5. fast assembling
Product Details
Models: TWC-F PH3-7
| Pixel Pitch (mm) | 3.91-7.82 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 32768 | Transparency | 55% |
| Cabinet Pixel | 256x64 | Protection Grade | IP65 |
| Refresh Rate (HZ) | 3840Hz | Eliminate Shadows | Equipment |
| Driver IC | ICN2153 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/8 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2727 | Cabinet Size (mm) | 1000X500X80 |
| Brightness (cd/㎡) | ≥4500 | Weight (kg/㎡) | 12.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Die-casting Alumimum |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
