Thin and Light Outdoor Sealess Design Super Slim Transparent LED Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1005/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor Adverting Display | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500mmX1000mm | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 3.91-7.82 | Brightness: | ≥4500 Cd/㎡ |
| Pixel Density: | 32768 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Resolution: | 256X128 |
| LED Chip: | SMD1921 | Feature: | Thin And Light |
| Refresh Rate: | 3840HZ | Scan Mode: | 1/8 Scan |
| Highlight: | Thin Outdoor Transparent LED Screen,Outdoor Transparent LED Screen P3-7,Outdoor Transparent LED Display 3840HZ |
||
Product Description

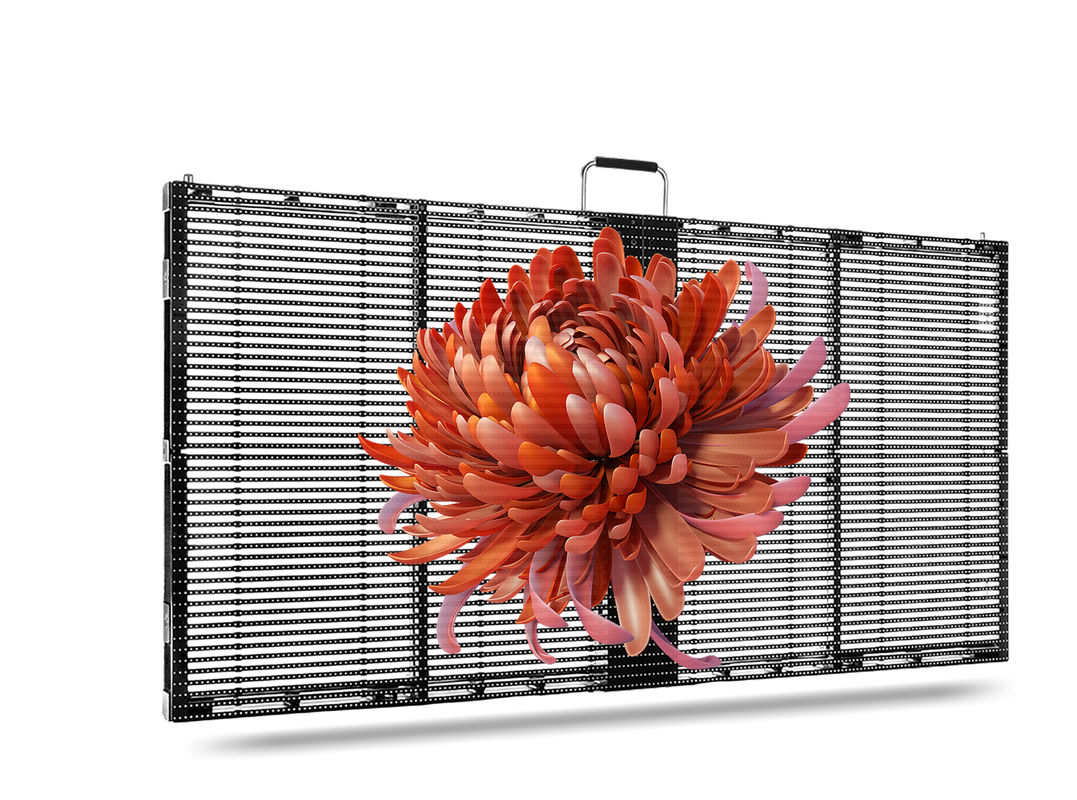

500mm*1000mm TWC-F PH3-7 Outdoor sealess design super slim Transparent LED Screen
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios :
1. stage performance
2. space decoration
3. Commercial streets
4. entertainment culture
5. advertising publish
Features:
1. Unique encapsulation and potting technology: sealing and potting technology, which not only protects the lamp beads, but also plays a waterproof effect, and the waterproof level is as high as IP65 protection level;
2. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
3. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install;

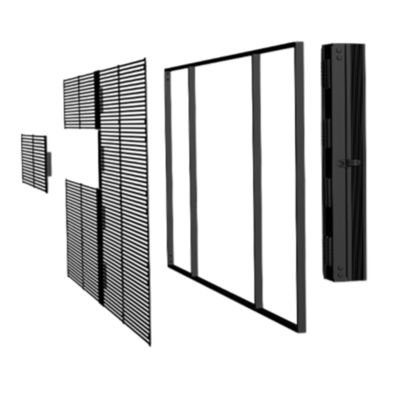

4. Hollow design: while ensuring permeability, it reduces the weight of the screen itself and automatically dissipates heat.
Product Details
Models: TWC-F PH3-7
| Pixel Pitch (mm) | 3.91-7.82 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 32768 | Transparency | 56% |
| Cabinet Pixel | 256X128 | Protection Grade | IP65 |
| Refresh Rate (HZ) | 3840Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2153PWM(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/8 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1921 | Cabinet Size (mm) | 1000X500X80 |
| Brightness (cd/㎡) | ≥4500 | Weight (kg/㎡) | 12kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Die-casting Alumimum |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
