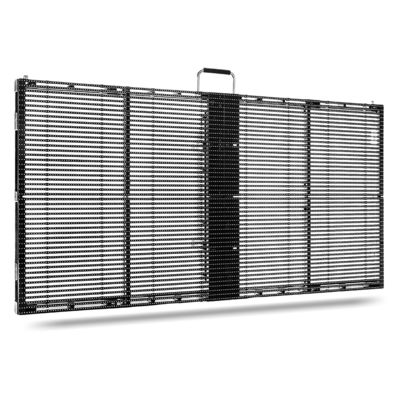

IP30 Transparent LED Screen Display Indoor 1000*1000 PH15-15 Various Control Ways
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F PH15-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $200/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Type: | LED | Color: | Full Color |
| Pixel Pitch: | 15.6-15.6 | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 4096 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | HS Code: | 8528591090 |
| Resolution: | 64X64 | LED Chip: | SMD2727 |
| Refresh Rate: | 1920Hz | Scan Mode: | 1/2 Scan |
| Highlight: | IP30 Transparent LED Screen Display,RoHS Transparent LED Screen Display,SMD2727 outdoor transparent led display |
||
Product Description

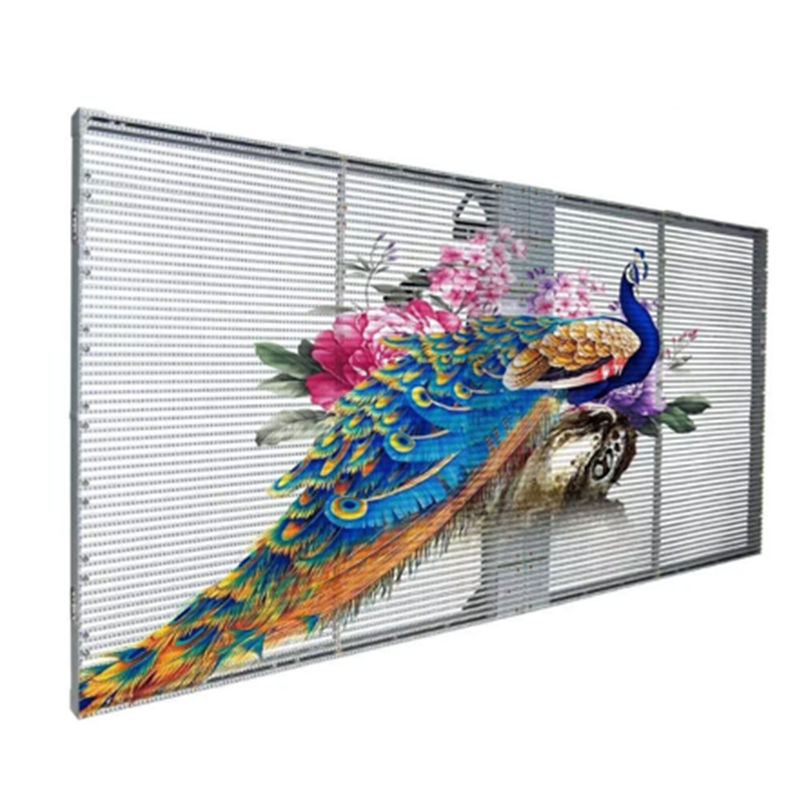

Indoor 1000*1000 PH15-15 various control ways Transparent LED Screen Display
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios :
1. Publicity of scenic spots
The transparent screen can play the content about the history, culture and scenic introduction of Kunming Pool, so that visitors can have a deeper understanding of the culture and characteristics of the scenic spot.
2. Culture and education
It can be used as a youth education base, and the school organizes activities to watch scenic spots, introduce culture and history, and enrich education methods.
3. Bars/Night Clubs/KTV
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. stage performance
7. Indoor Fence & Partition
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Seamless large area splicing
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TWC-F
| Indoor transparent screen (TWC-F series) | |||||
| models | PH2-5 | PH3-7 | PH5-10 | PH10-10 | PH15-15 |
| Pixel Pitch (mm) | 2.6 - 5.2 | 3.91 -7.82 | 5.2 -10.4 | 10.4-10.4 | 15.6-15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
| Pixel Density (dot/㎡) | 73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X192 | 256X128 | 192X96 | 96X96 | 64X64 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip |
ICN2038S (same level) |
ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
|
Brightness (cd/㎡) |
≥800 | ||||
| Lifespan | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| Grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| Protection grade | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X1000X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Aluminium alloy | ||||
| Maintenance | Power/Control System : rear maintenance Module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
Application:
