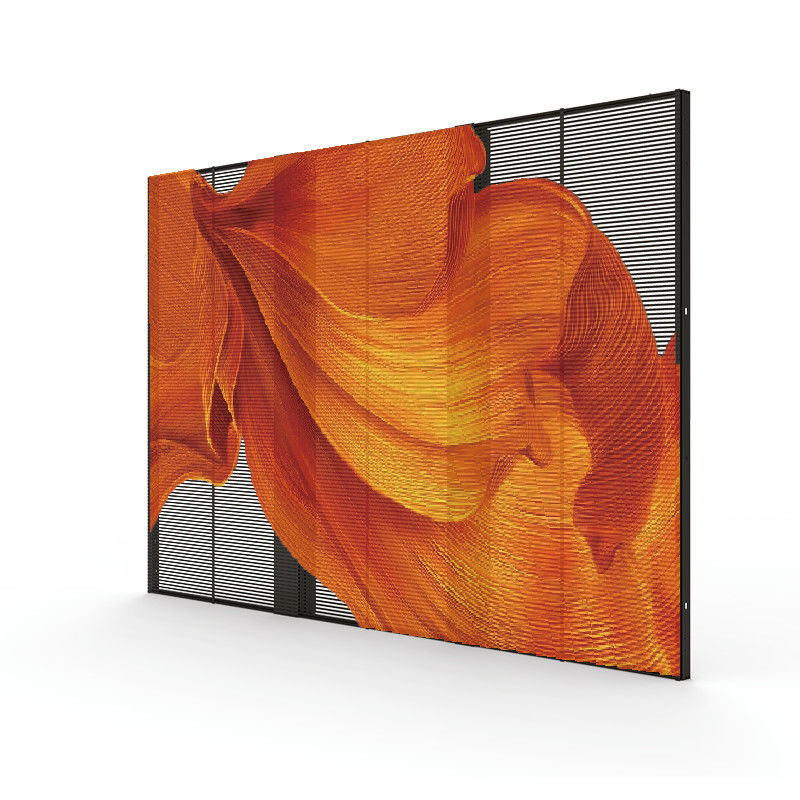

Super Thin Transparent LED Screen Display Video Wall Fixed Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH2-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $430/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Type: | LED | Color: | Full Color |
| Media Available: | Datasheet, Photo | Pixel Pitch: | 2.6-5.2 |
| Specification: | Video Wall | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 73728 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | Resolution: | 384X192 |
| Usage: | Indoor Adverting Display | Installation: | Fixed Installation |
| Refresh Rate: | 1920Hz | LED Chip: | SMD1515 |
| Feature: | Thin And Bright | Scan Mode: | 1/12scan |
| Weight: | 7.5kg/㎡ | Material: | Aluminum Alloy |
| Highlight: | Super Thin Transparent LED Screen Display,Transparent LED Screen Display Fixed Installation,P2-5 Transparent LED Wall Display |
||
Product Description
Indoor waterproof TRA-B PH2-5 Transparent LED Screen Display Video Wall Fixed Installation
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. Culture and education
It can be used as a youth education base, and the school organizes activities to watch scenic spots, introduce culture and history, and enrich education methods.
3. Information release
It can publish a variety of information including text, images and videos, and has encryption and content review mechanisms to ensure the legal compliance of published content. The user-friendly program management function can automatically play content according to the pre-edited time and order.
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. stage performance
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. Seamless large area splicing
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
7. High permeability, high light transmittance
8. Simple structure and light quality
9.LED transparent screen is easy to maintain
10. Save building lighting costs
Product Details
Models: TRA-B
| Indoor transparent screen (TRA-B series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6 - 5.2 | 3.91 -7.82 | 5.2 -10.4 | 10.4-10.4 | 15.6-15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
| Pixel Density (dot/㎡) | 73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X192 | 256X128 | 192X96 | 96X96 | 64X64 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
|
Brightness (cd/㎡) |
≥800 | ||||
| Lifespan | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| Grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| Protection grade | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X1000X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Aluminium alloy | ||||
| Maintenance | Power/Control System : rear maintenance Module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
Application:
