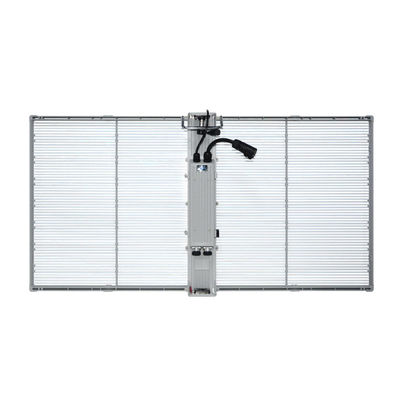

Indoor TRA-B PH2-5 Transparent LED Film Display Indoor Full Color High Brightness
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH2-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $358/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Indoor Adverting Display | Application: | Indoor |
|---|---|---|---|
| Type: | LED | Color: | Full Color |
| Panel Size: | 1000mmX1000mm | Pixel Pitch: | 2.6-5.2 |
| Specification: | Video Wall | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 73728 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | Resolution: | 384X96 |
| Weight: | 7.5kg/㎡ | Material: | Die-casting Aluminum |
| Highlight: | P2-5 Transparent LED Film Display,Transparent LED Film Display Full Color,Transparent Led Display Film High Brightness |
||
Product Description
Indoor TRA- PH2-5 Transparent LED Film Display Indoor Full Color High Brightness
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Application scenario:
Smart city
Cultural tourism
Product characteristics
1. Light, thin and ultra-clear, unlimited splicing: the lamp plate thickness is only 3.5mm, 7kg/㎡ ultra-light box, unlimited splicing combination display;
2. More than 65% ultra-high permeability: the playback image presents a floating style, which will not affect the view of the building when it is daylighting;
3. Front and rear maintenance, convenient and fast: the module and power box can be disassembled and maintained in front and back.
Products Detail:
| Indoor transparent screen (TRA-B series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6- 5.2 | 3.91 - 7.82 | 5.2 - 10.4 | 10.4 - 10.4 | 15.6 - 15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
|
Cabinet Density (dot/㎡) |
73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X96 | 256X64 | 192X48 | 96X48 | 64X32 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
| Brightness (cd/㎡) | ≥800 | ||||
| Lifespan(H) | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| protection grades | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X500X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Die-casting aluminum | ||||
| Maintenance | power/Control System : rear maintenance module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||

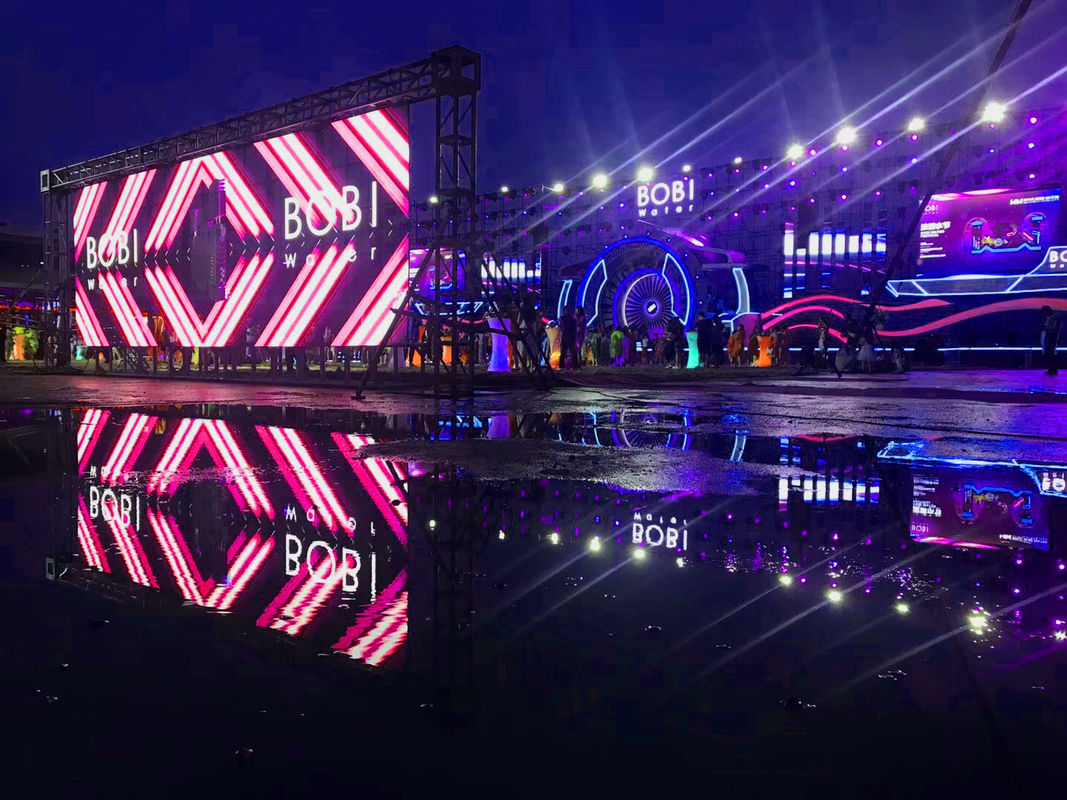

Application:
