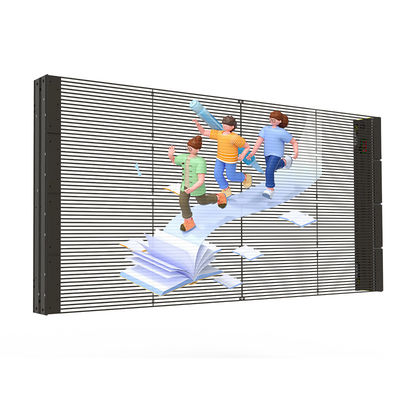

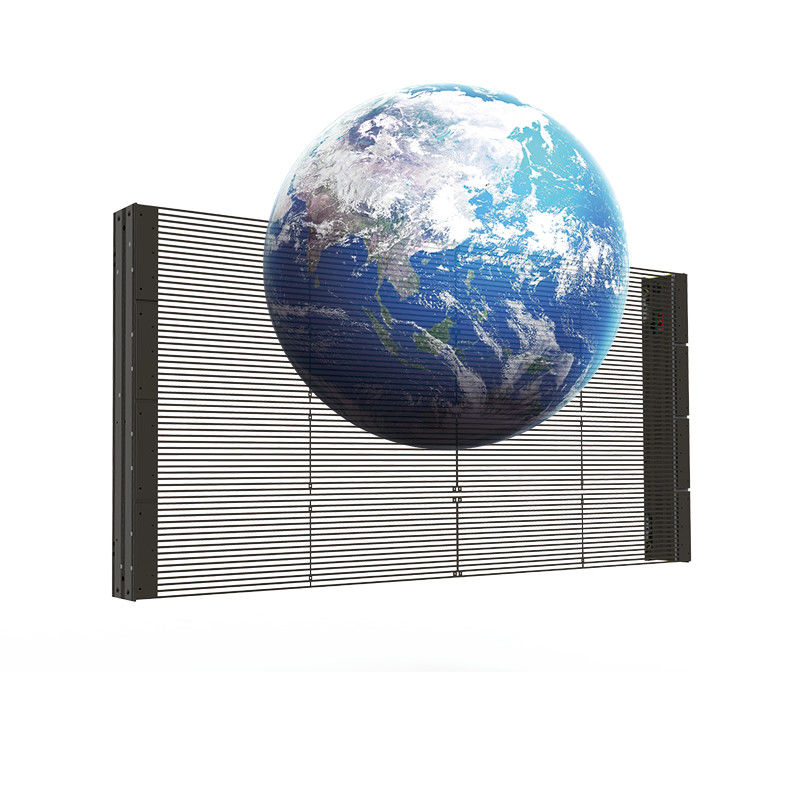

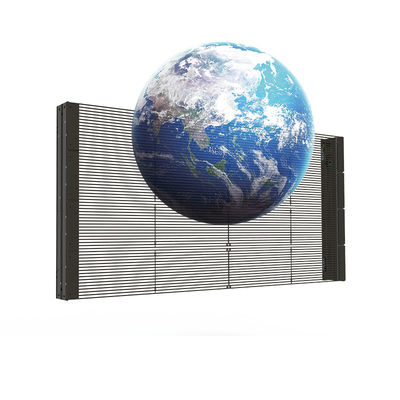

Indoor Transparent LED Wall Display PH3.91-7.82 Pixel Pitch High Permeability
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $380.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | FULL COLOR | Panel Size: | 1000mmX1000mm |
| Pixel Pitch: | 3.91-7.82 | Brightness: | ≥800 Cd/㎡ |
| Pixel Density: | 32768 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP30 | Resolution: | 256X128 |
| Refresh Rate: | 1920Hz | Feature: | Thin And Bright |
| Highlight: | Transparent Led Wall Display High Permeability,Transparent LED Wall Display 3.91-7.82,transparent video wall High Permeability |
||
Product Description
Indoor Transparent LED Wall Display TRA-B PH3.91-7.82 Pixel Pitch High Permeability
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. Exhibition display
7. Exhibition display
8.Window display
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness
5. super thin and light and Stunning image display
Product Details
Models: TRA-B PH3-7
| Pixel Pitch (mm) | 3.91-7.82 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 32768 | Transparency | 76% |
| Cabinet Pixel | 256X128 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |
