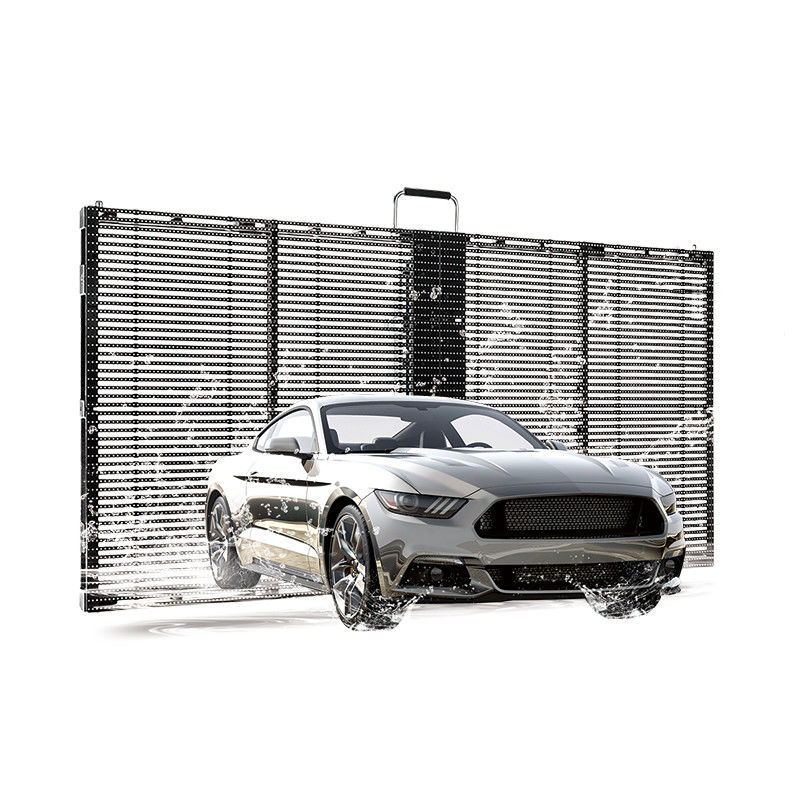

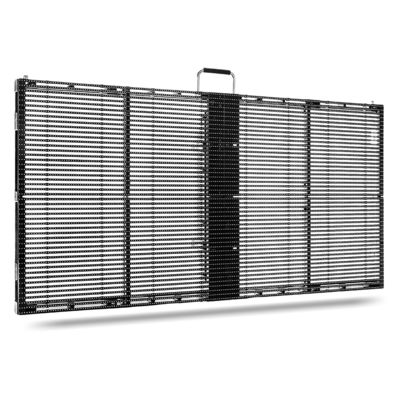

Waterproof Transparent LED Screen Display HT 500*1000 3D Transparent Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | TWC-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $762~941/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Outdoor | Cabinet Size: | 500mm*1000mm |
|---|---|---|---|
| Refresh Rate: | 3840Hz | IP Rating: | IP65 |
| Brightness: | ≥4500 Cd/㎡ | Lifespan: | ≥100000H |
| Highlight: | Waterproof Transparent LED Screen Display,Transparent LED Screen Display 3D,3D Transparent Video Wall |
||
Product Description
Transparent LED Screen Display TWC-F 500*1000 Waterproof 3D Transparent Video Wall
Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf
Applicable scenarios :
1. commercial real estate
2. entertainment culture
3. stage performance
4. radio and television studios
5. commercial exhibition hall
6.Smart city
7.Cultural tourism
Features:
1. high permeability
2. IP65 dustproof and waterproof
3. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
4. Unique encapsulation and potting technology: sealing and potting technology, which not only protects the lamp beads；
5. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
6. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install;
7. Hollow design: while ensuring permeability, it reduces the weight of the screen itself and automatically dissipates heat.
Product Details
Models: TWC-F
|
Outdoor Transparent LED screen (HMT-HT series) |
||||
|
models |
HMT-HT3-7 |
HMT-HT5-10 |
HMT-HT10-10 |
HMT-HT15-15 |
|
Pixel Pitch (mm) |
3.91 - 7.82 |
5.2 -10.4 |
10.4 -10.4 |
15.6 - 15.6 |
|
transparency |
56% |
58% |
60% |
75% |
|
Pixel Density (dot/㎡) |
32768 |
18432 |
9216 |
4096 |
|
Cabinet Pixel |
256X128 |
192X96 |
96X96 |
64X64 |
|
Refresh rate (Hz) |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Drive chip |
ICN2153PWM (same level) |
MY9866 (same level) |
MY9866 (same level) |
ICN2038S (same level) |
|
Scan mode |
1/8 Scan |
1/4 Scan |
1/2 Scan |
static |
|
LED lamp type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
|
Brightness (cd/㎡) |
≥4500 |
≥4500 |
≥4500 |
≥4500 |
|
Lifespan(H) |
≥ 100,000 hours |
|||
|
Pixel composition |
RGB three-in-one |
|||
|
Grey scale |
14bit |
|||
|
Maximum power (W/㎡) |
600-800W |
|||
|
Conventional power (W/㎡) |
400-600W |
|||
|
LED control system |
Nova / Colorlight System / Magnimade System / Mooncell System |
|||
|
Signal connection |
WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system |
|||
|
Protection Grade |
IP65 |
|||
|
Eliminate Shadows |
equipment |
|||
|
Input voltage |
AC100～240V 50/60HZ |
|||
|
Module input voltage |
DC4.7～5V±0.2V |
|||
|
Cabinet size (mm) |
1000X500X80 |
|||
|
Weight (Kg/㎡) |
12kg/㎡ |
|||
|
Cabinet material |
Aluminum alloy |
|||
|
Maintenance |
power/Control System : rear maintenance module:front maintenance |
|||
|
Working temperature and humidity |
Temperature: -10 ~ 40℃ humidity: -10% ~ 90% |
|||
|
Installation |
hoisting/fixed installation/Build on standing structure |
|||
Application:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
