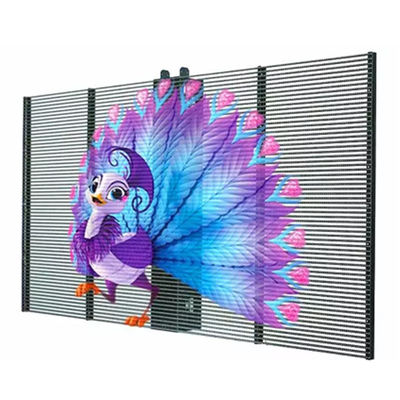

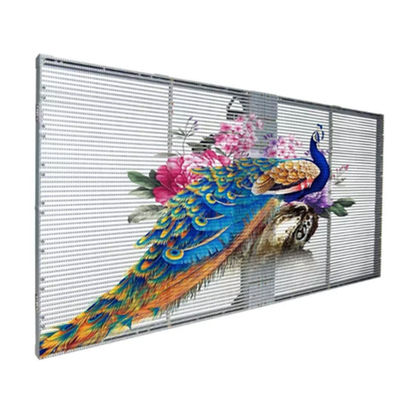

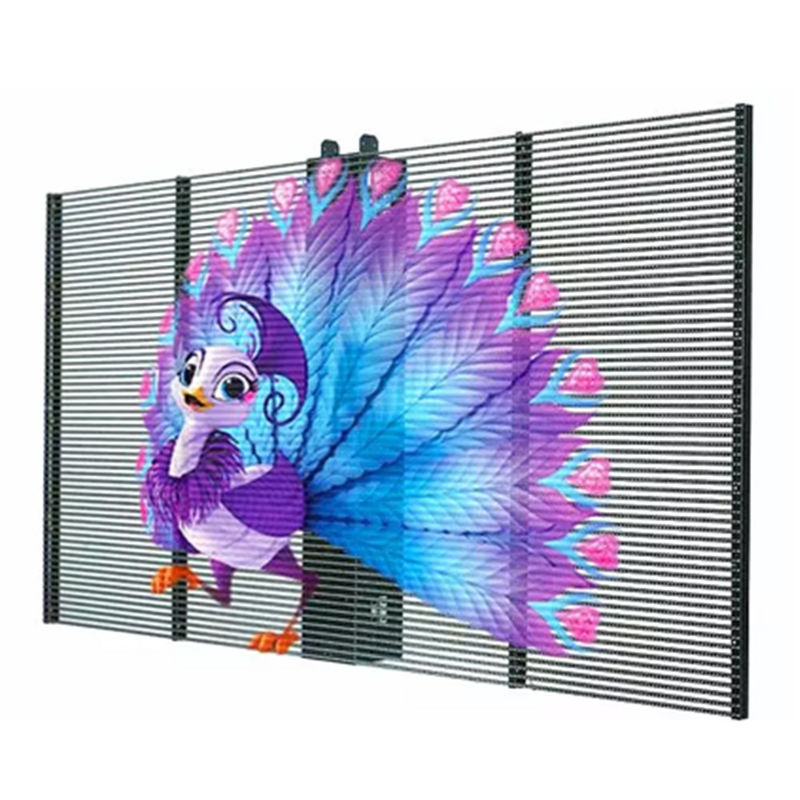

500*1000 TRA-M Indoor Transparent LED Screen Display Easy Installation in Shopping Mall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-M -PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $200~430/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Panel Size: | 1000mmX1000mm | Brightness: | ≥800 Cd/㎡ |
|---|---|---|---|
| Lifespan (hours): | ≥100000H | IP Rating: | IP30 |
| Weight: | 7.5kg/㎡ | Cabinet Material: | Aluminium Alloy |
| Highlight: | Transparent LED Screen Display Easy Installation,Shopping Mall Transparent LED Screen Display |
||
Product Description
500*1000 TRA-M Indoor Transparent LED Screen Display Easy Installation in Shopping Mall
Detailed product introduction document:Indoor transparent screen TRA-M series.pdf
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. play videos and pictures
5. exhibition hall , Retail Shop Glass Windows
6. stage performance
7. Indoor Fence & Partition
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. With the light cabinet and good material , installation easily .
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: TRA-M
| Indoor transparent screen (TRA-M series) | |||||
| models | PH 2-5 | PH 3-7 | PH 5-10 | PH 10-10 | PH 15-15 |
| Pixel Pitch (mm) | 2.6 - 5.2 | 3.91 -7.82 | 5.2 -10.4 | 10.4-10.4 | 15.6-15.6 |
| transparency | 56% | 76% | 76% | 76% | 80% |
| Pixel Density (dot/㎡) | 73728 | 32768 | 18432 | 9216 | 4096 |
| Cabinet pixel | 384X192 | 256X128 | 192X96 | 96X96 | 64X64 |
| Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 |
| Drive chip | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) | ICN2038S (same level) |
| Scan mode | 1/12 Scan | 1/16 Scan | 1/4 Scan | 1/4 Scan | 1/2 Scan |
| LED lamp type | SMD1515 | SMD2121 | SMD2121 | SMD2727 | SMD2727 |
|
Brightness (cd/㎡) |
≥800 | ||||
| Lifespan | ≥ 100,000 hours | ||||
| Pixel composition | RGB three-in-one | ||||
| Grey scale | 14bit | ||||
| Maximum power (W/㎡) | 600-800W | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| LED control system | Nova / Colorlight System / Magnimade System / Mooncell System | ||||
| Signal connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | ||||
| Protection grade | IP30 | ||||
| Eliminate Shadows | equipment | ||||
| input voltage | AC100～240V 50/60HZ | ||||
| Module input voltage | DC4.7～5V±0.2V | ||||
| Cabinet size (mm) | 1000X1000X80 | ||||
| Weight (Kg/㎡) | 7.5kg/㎡ | ||||
| Cabinet material | Aluminium alloy | ||||
| Maintenance | Power/Control System : rear maintenance Module:front maintenance |
||||
| Working temperature and humidity | Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation. | ||||
| Installation | hoisting/fixed installation/Build on standing structure | ||||
Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
